094 system
2003

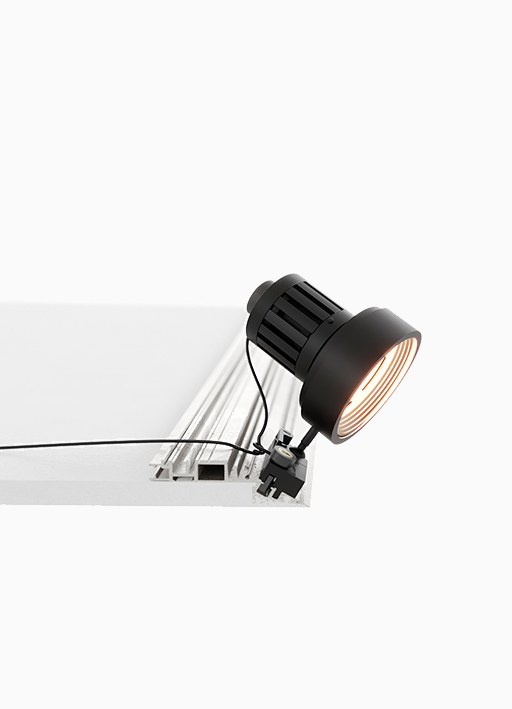

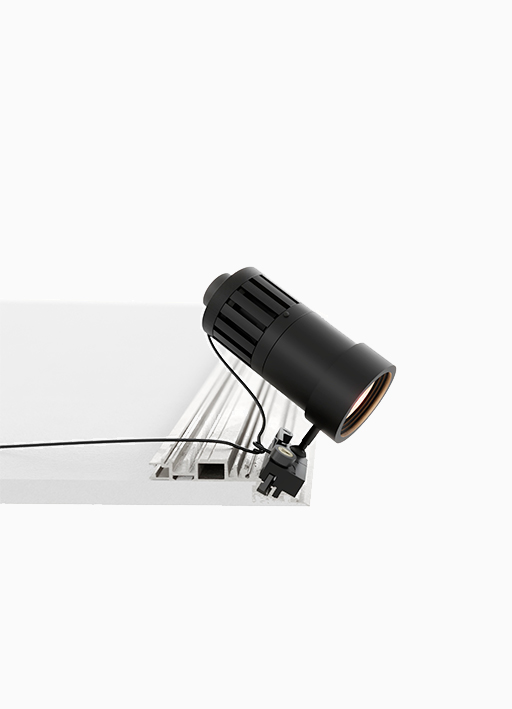

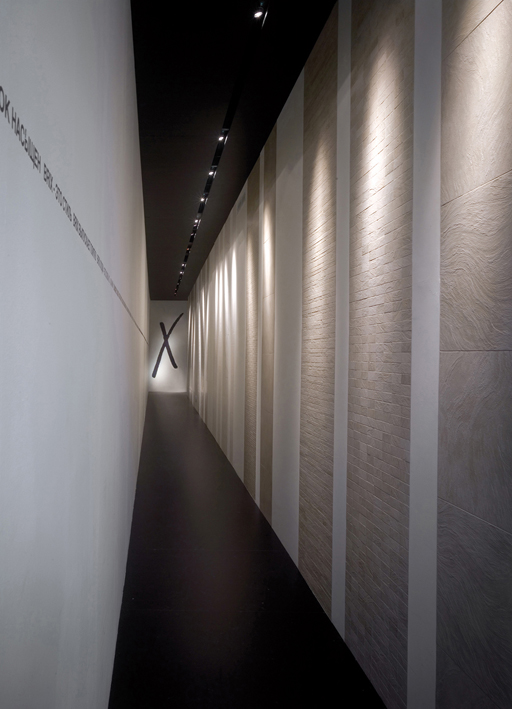

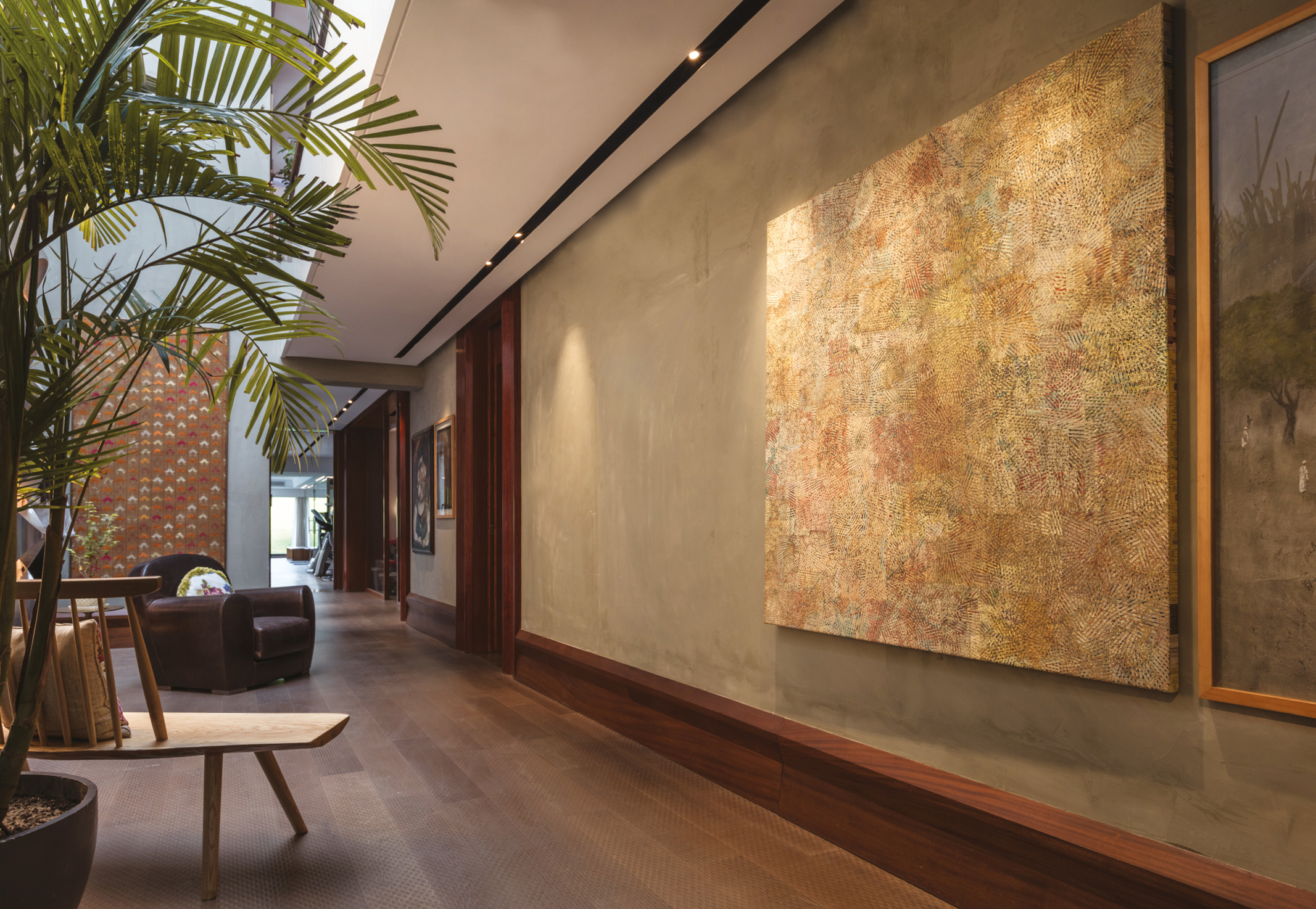

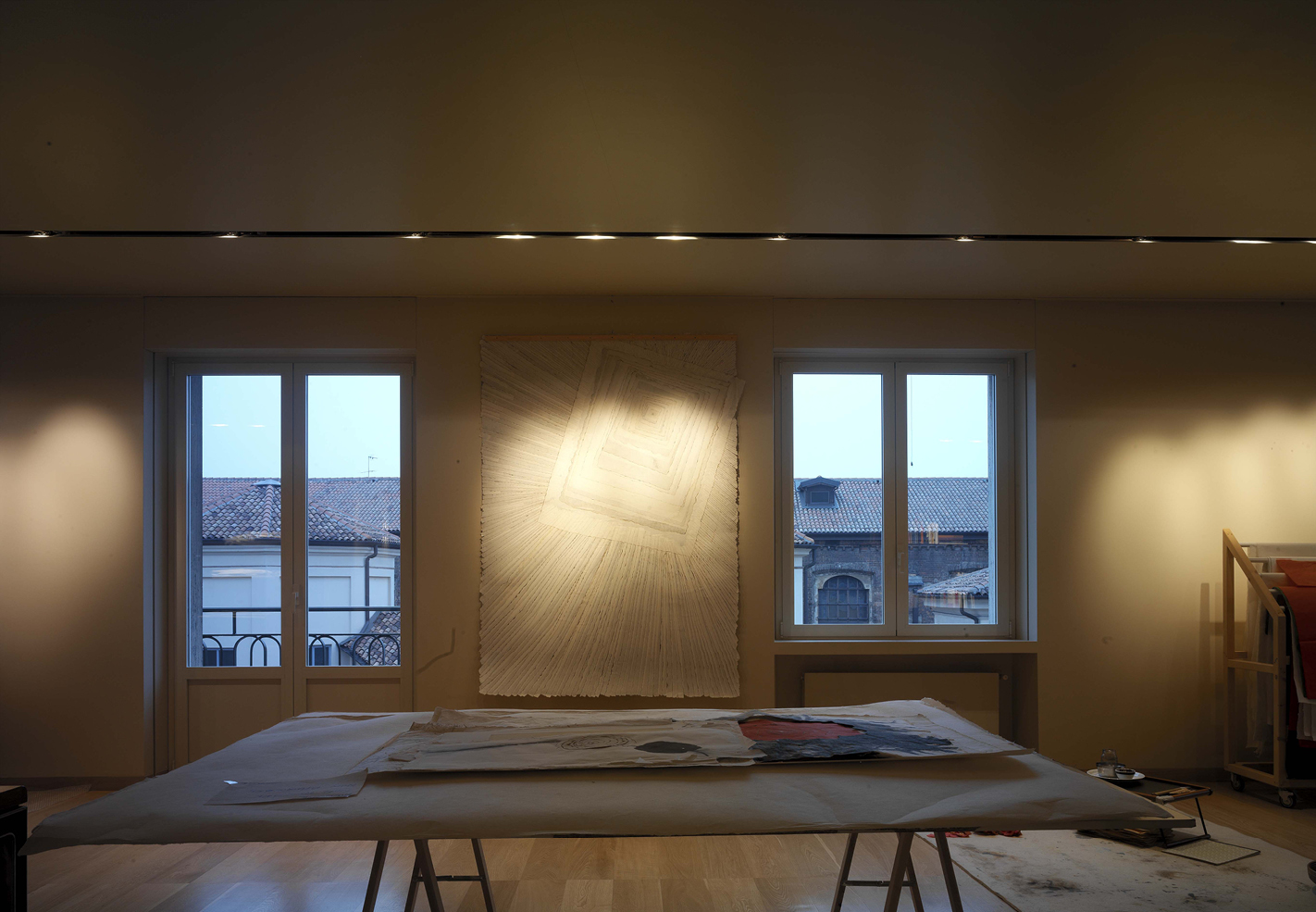

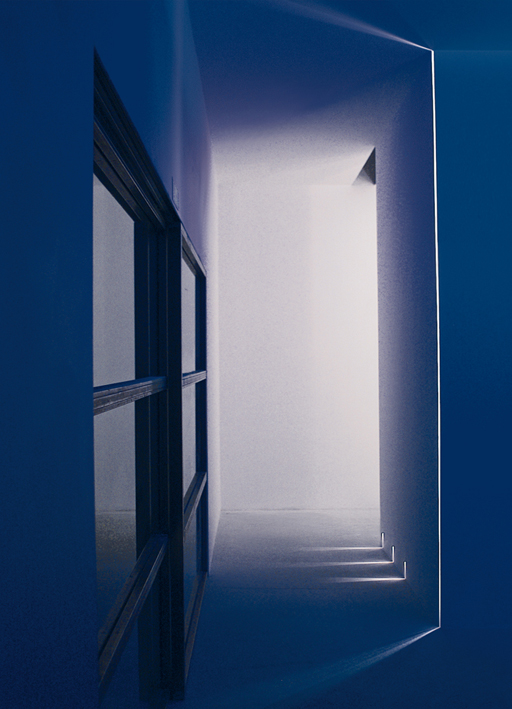

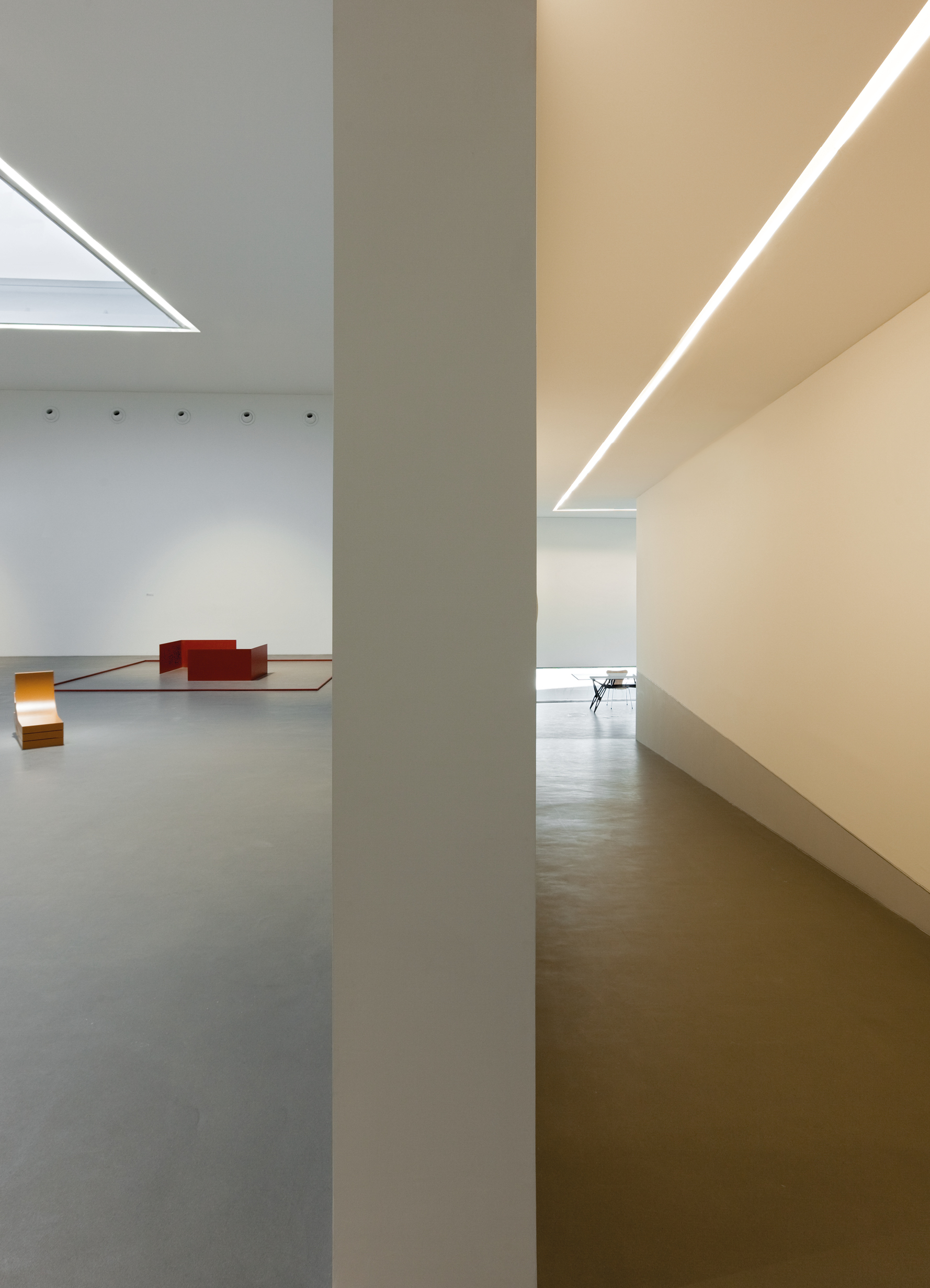

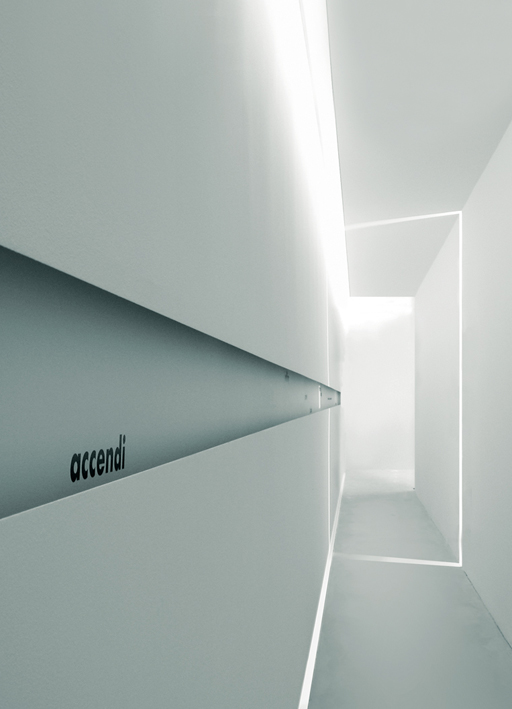

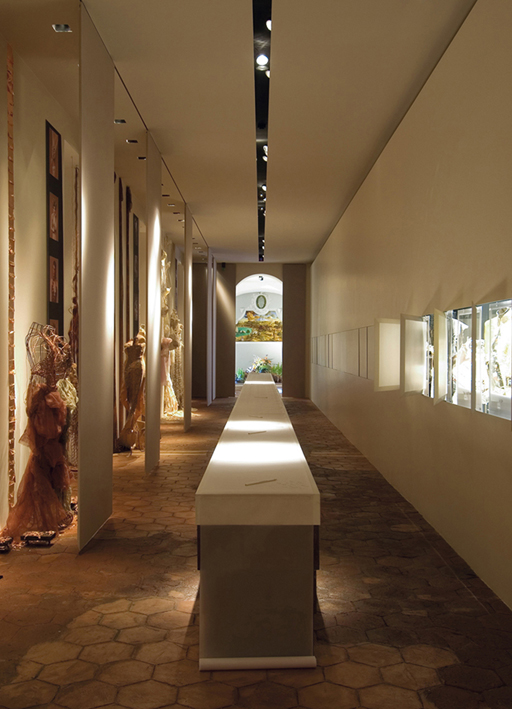

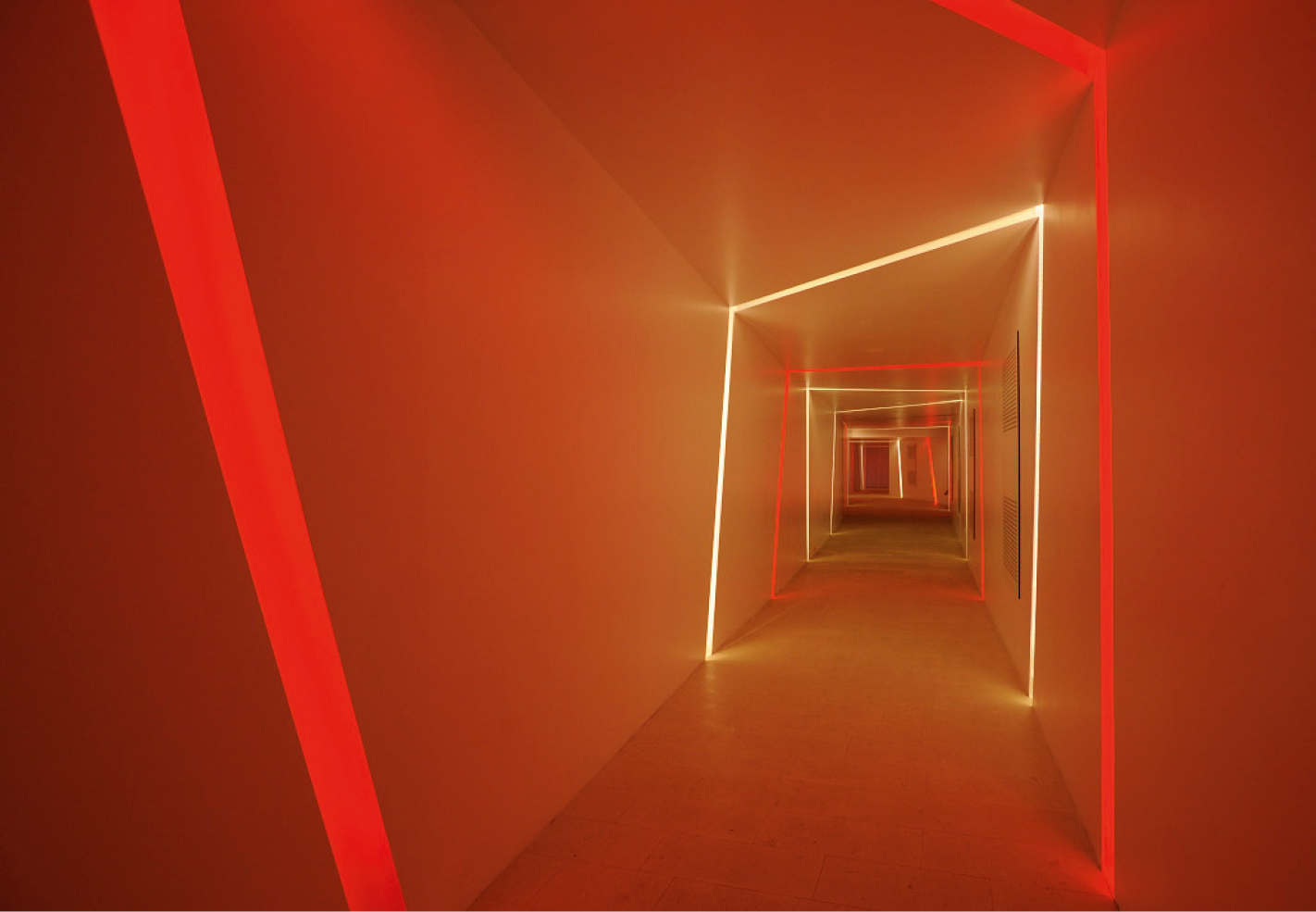

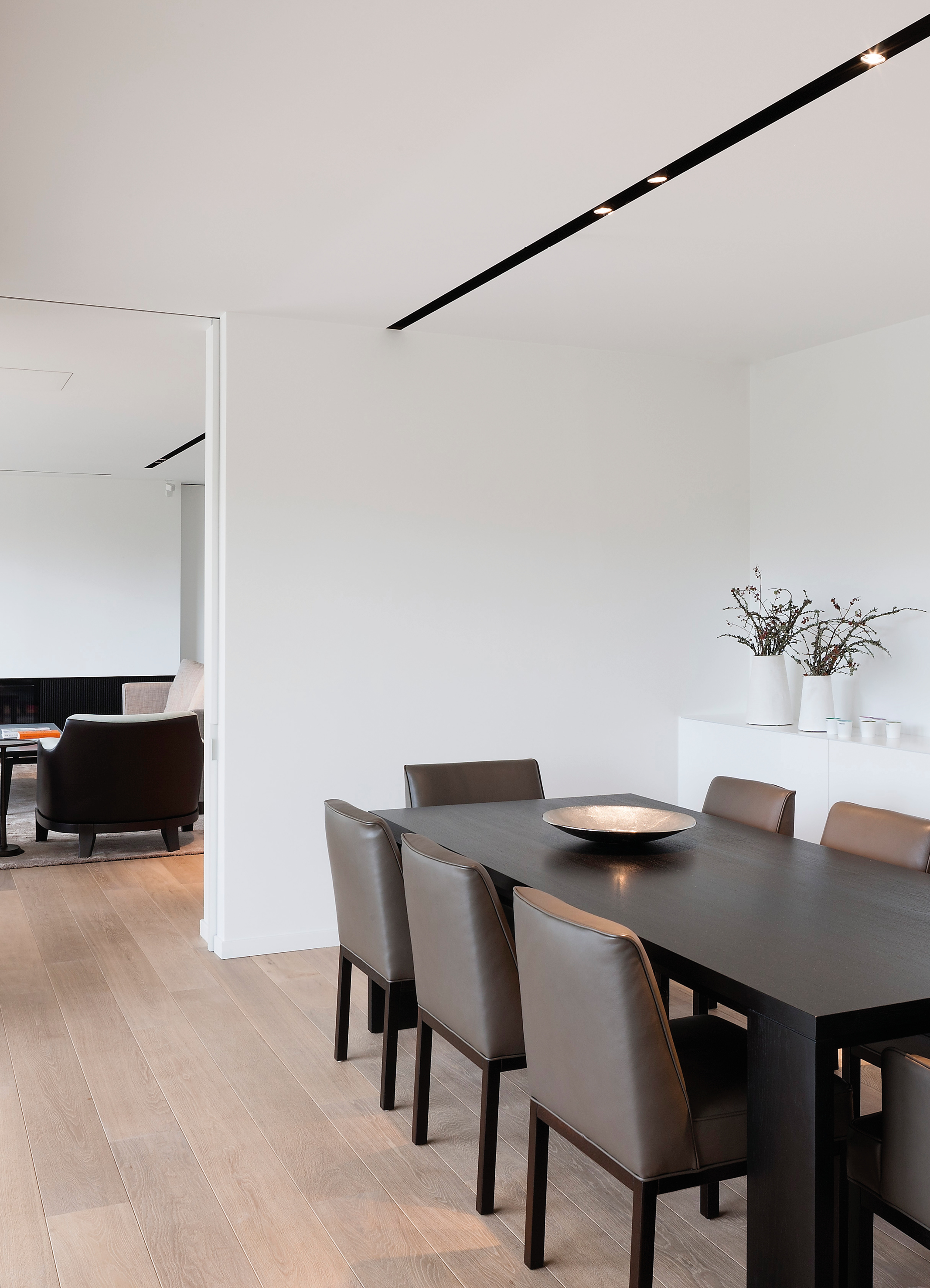

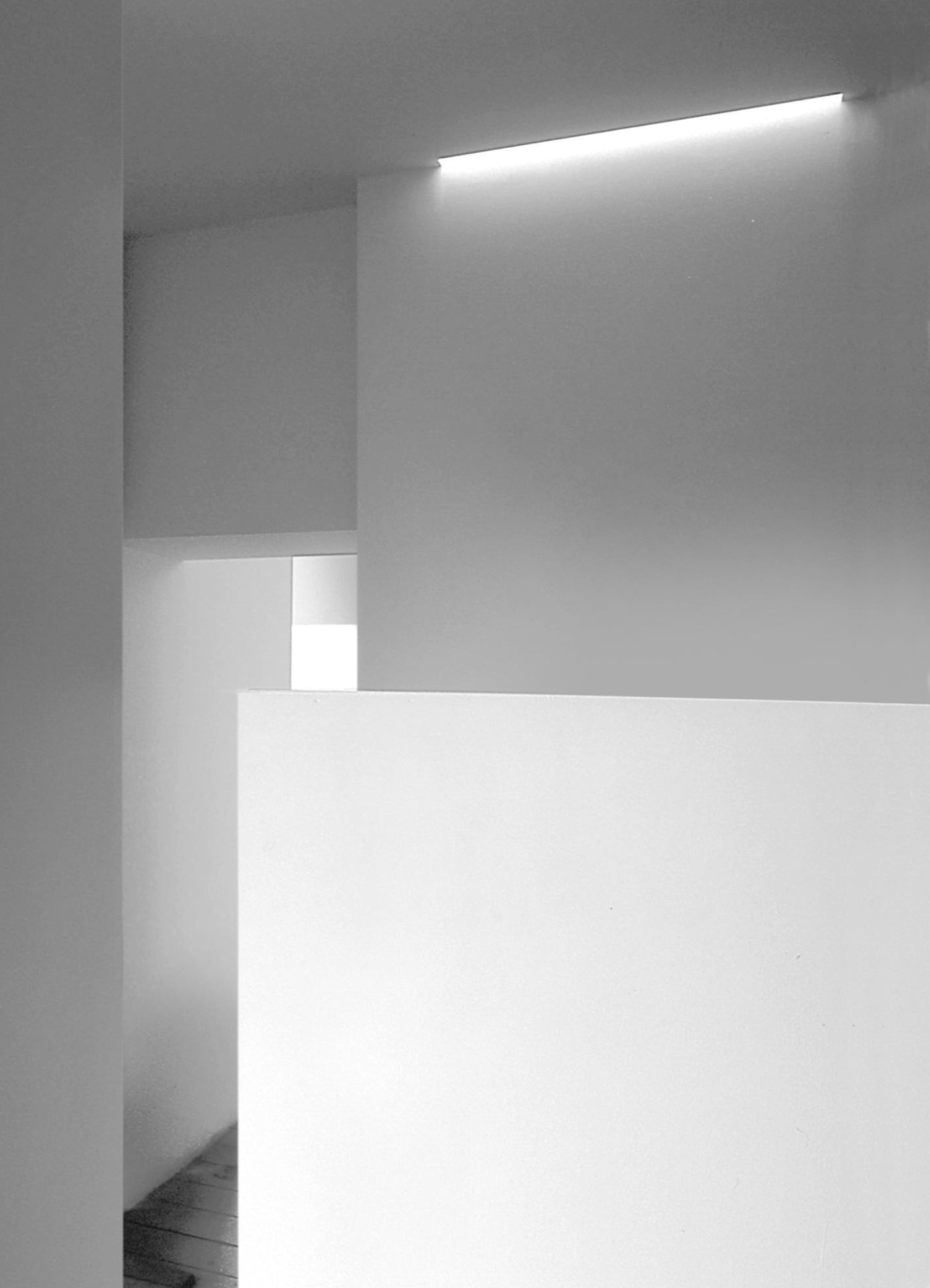

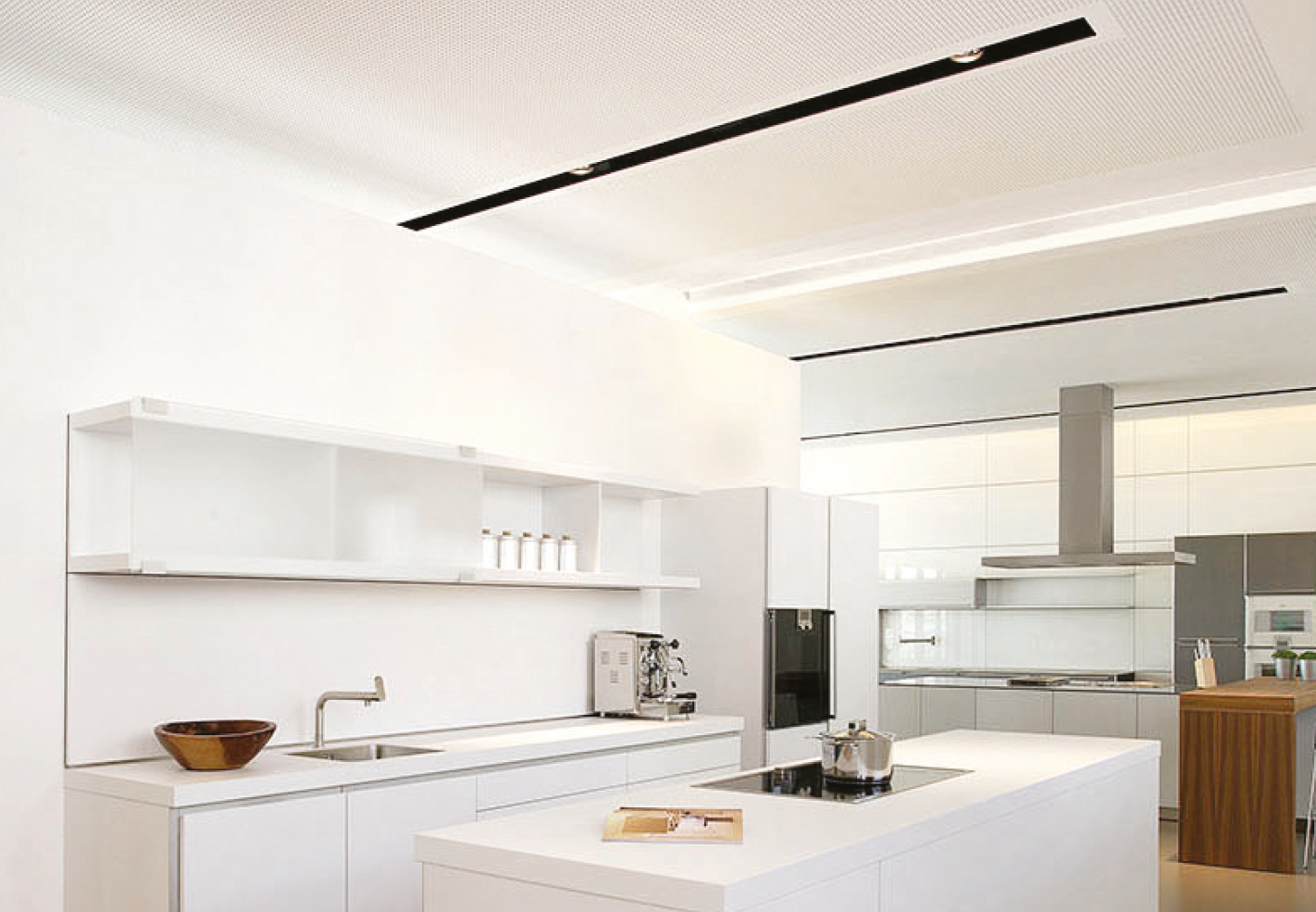

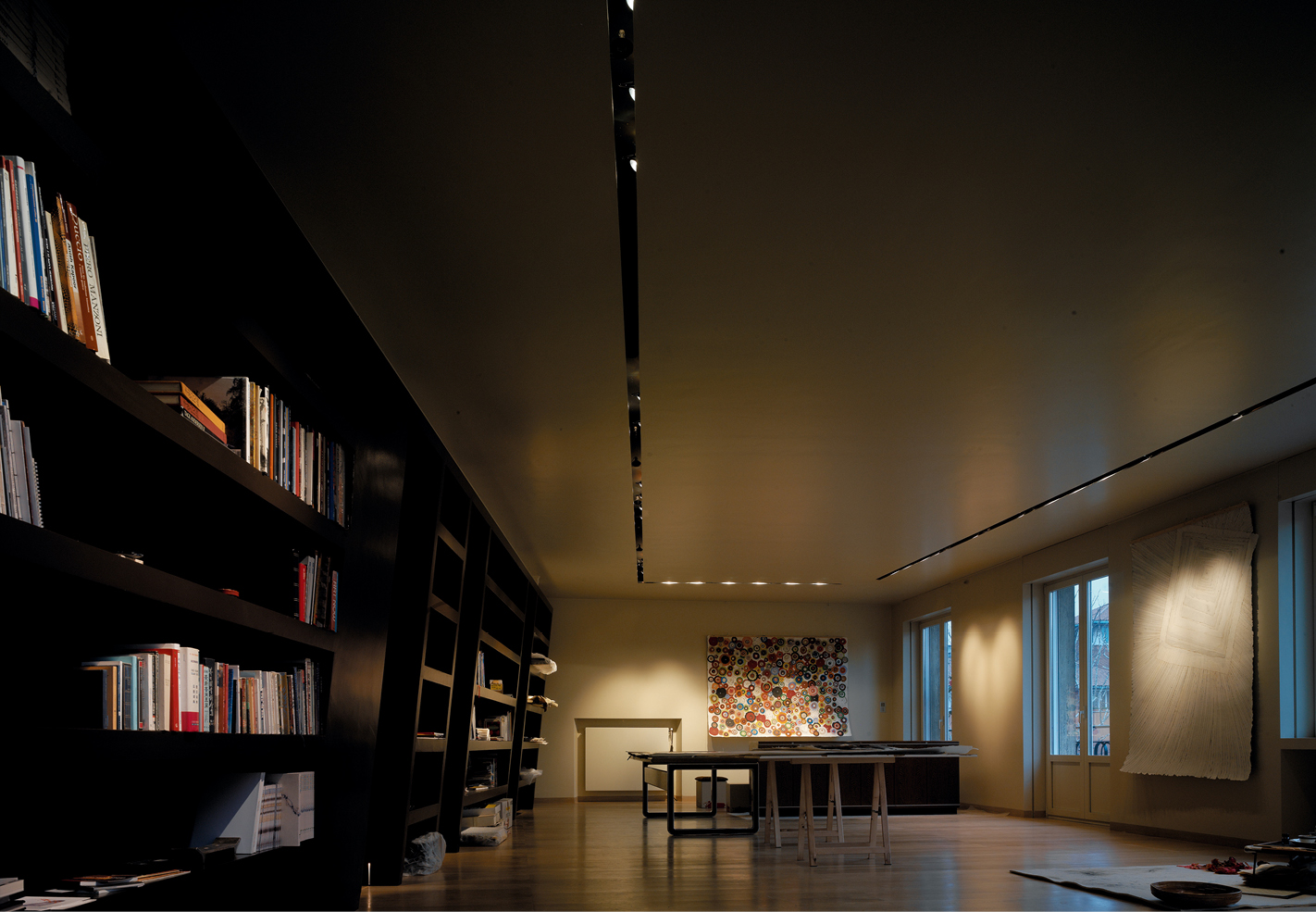

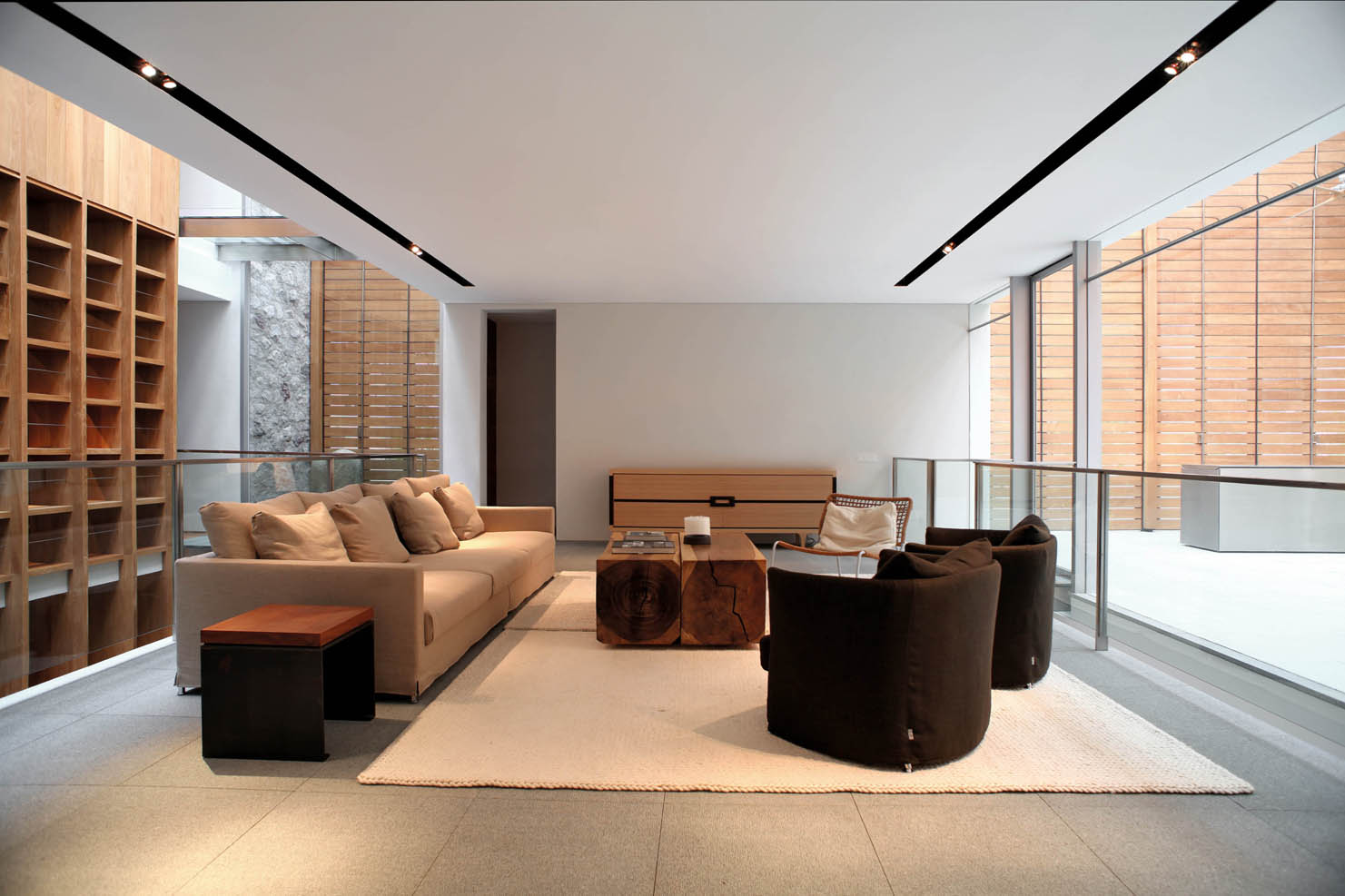

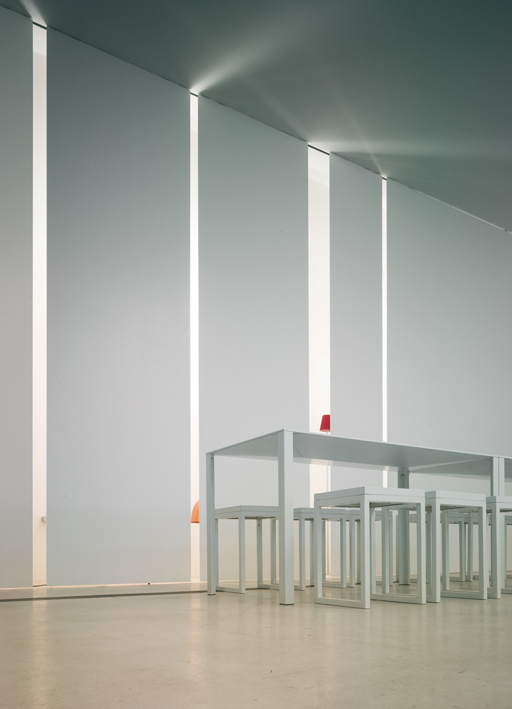

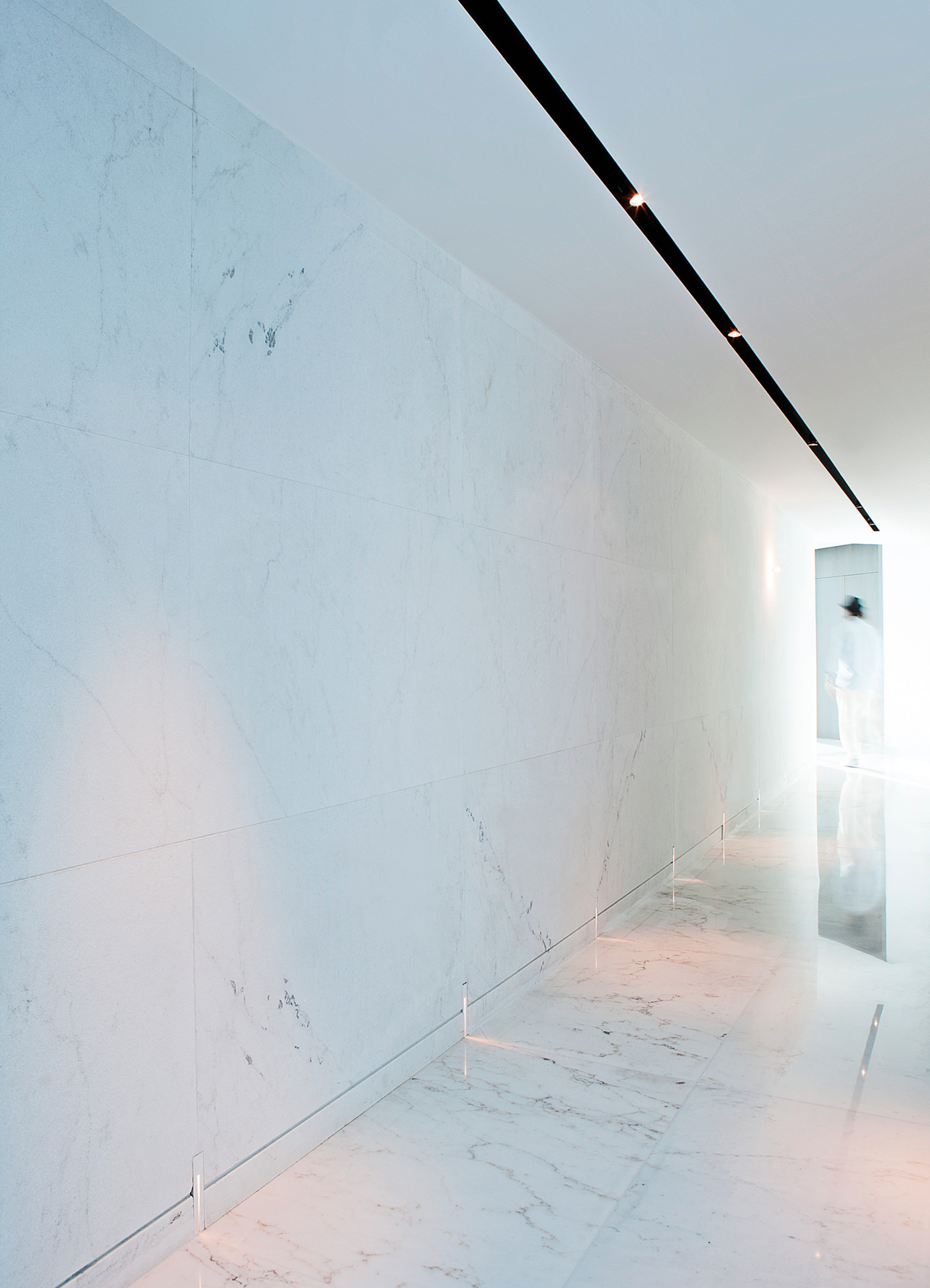

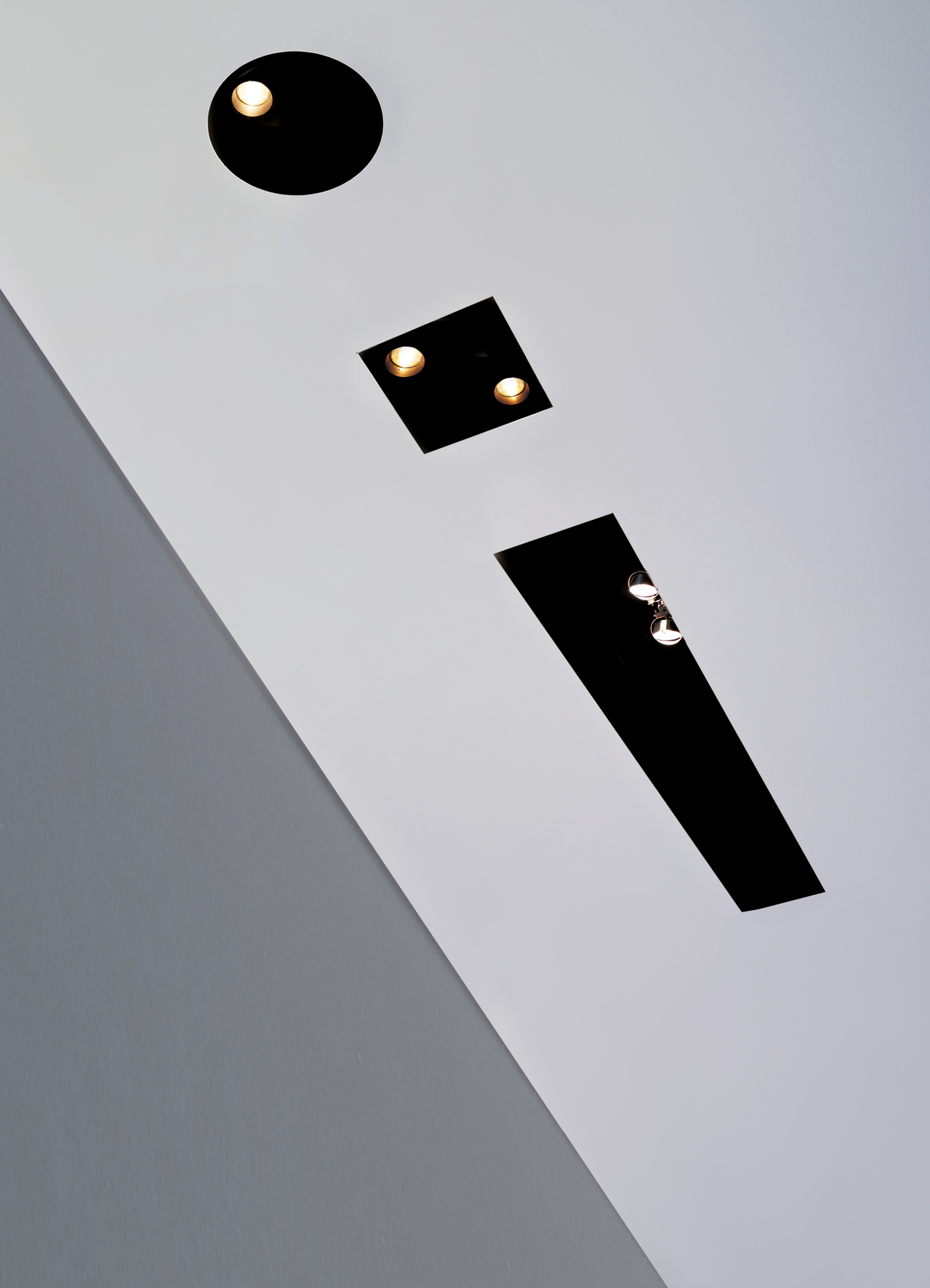

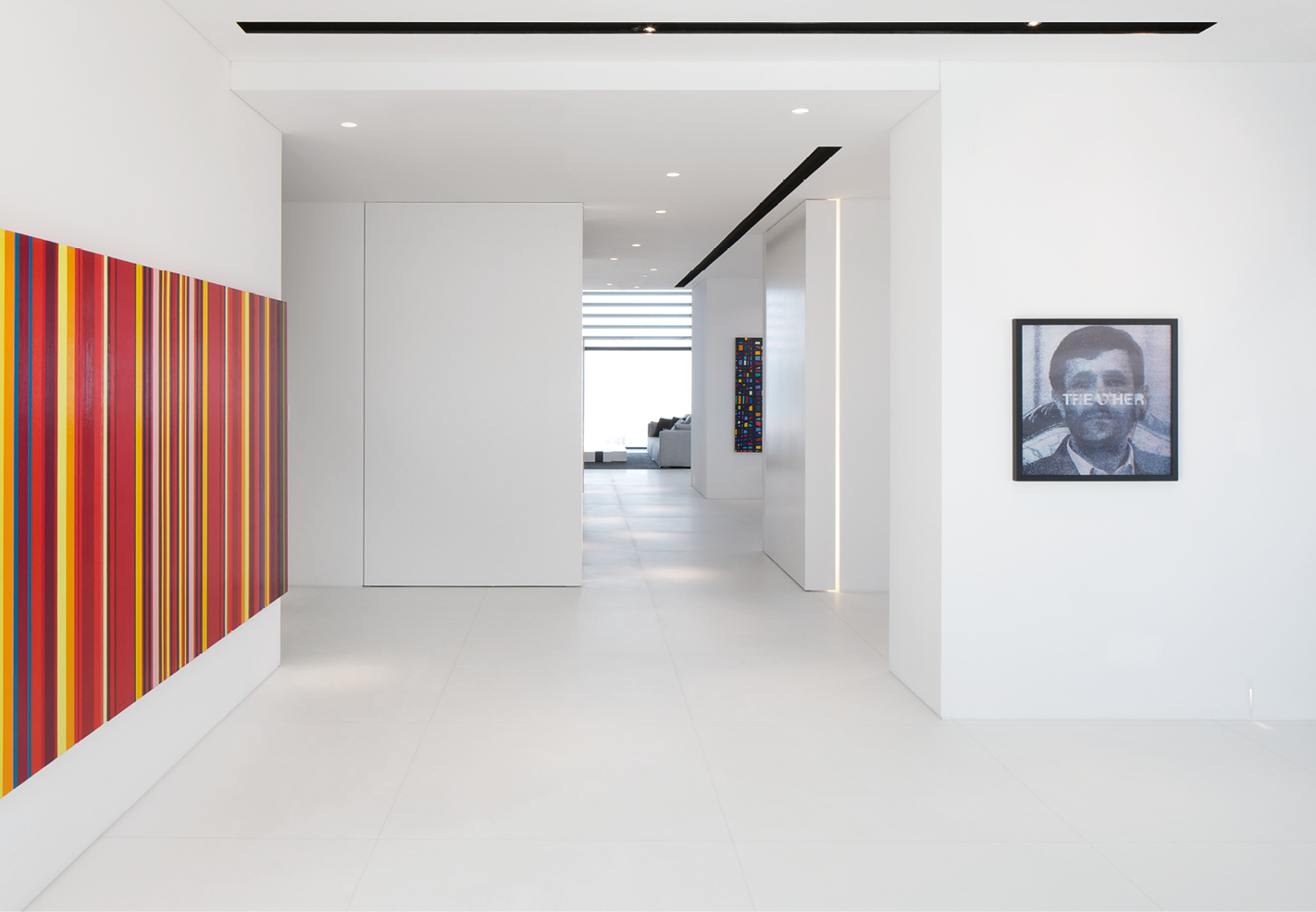

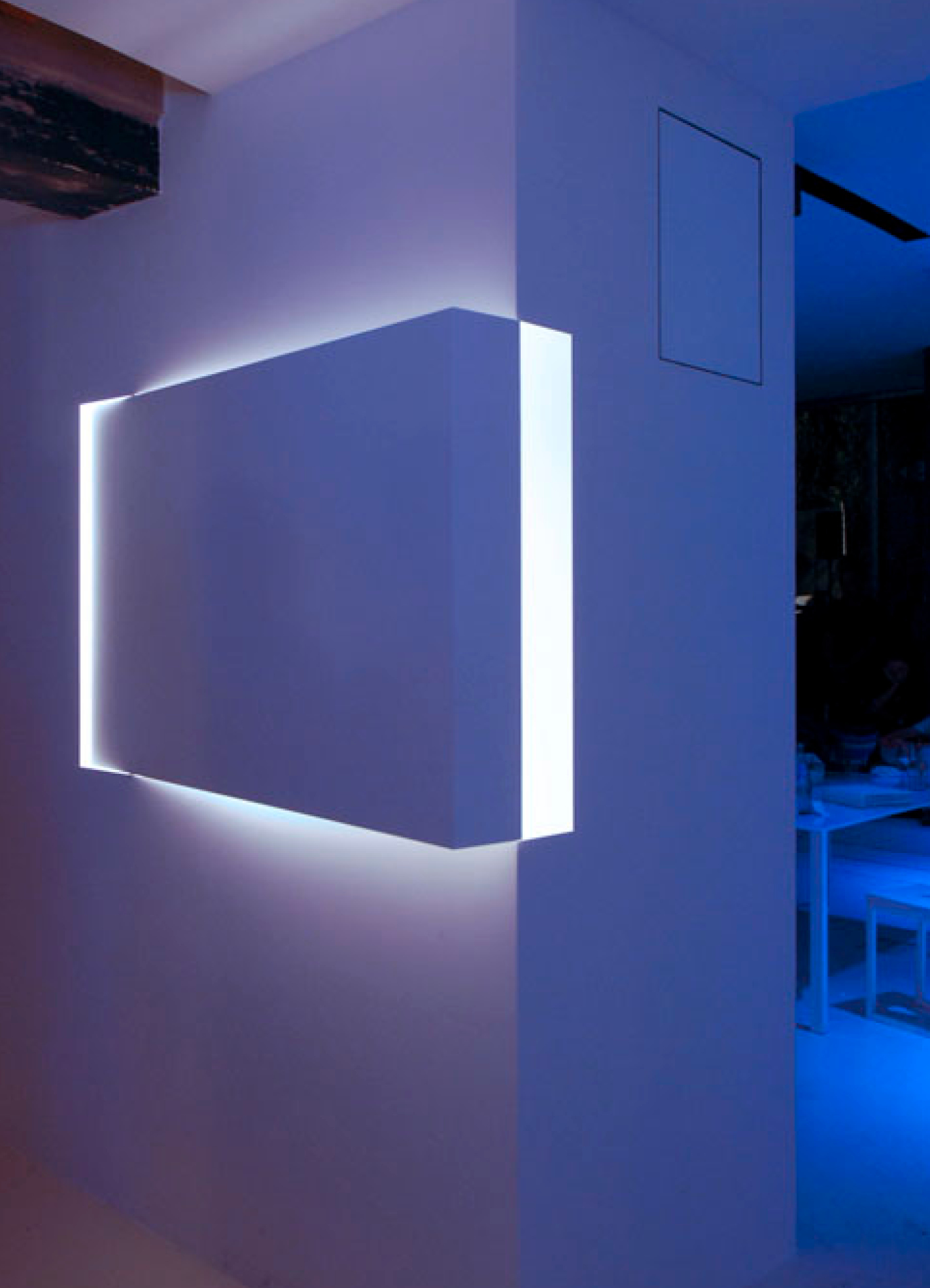

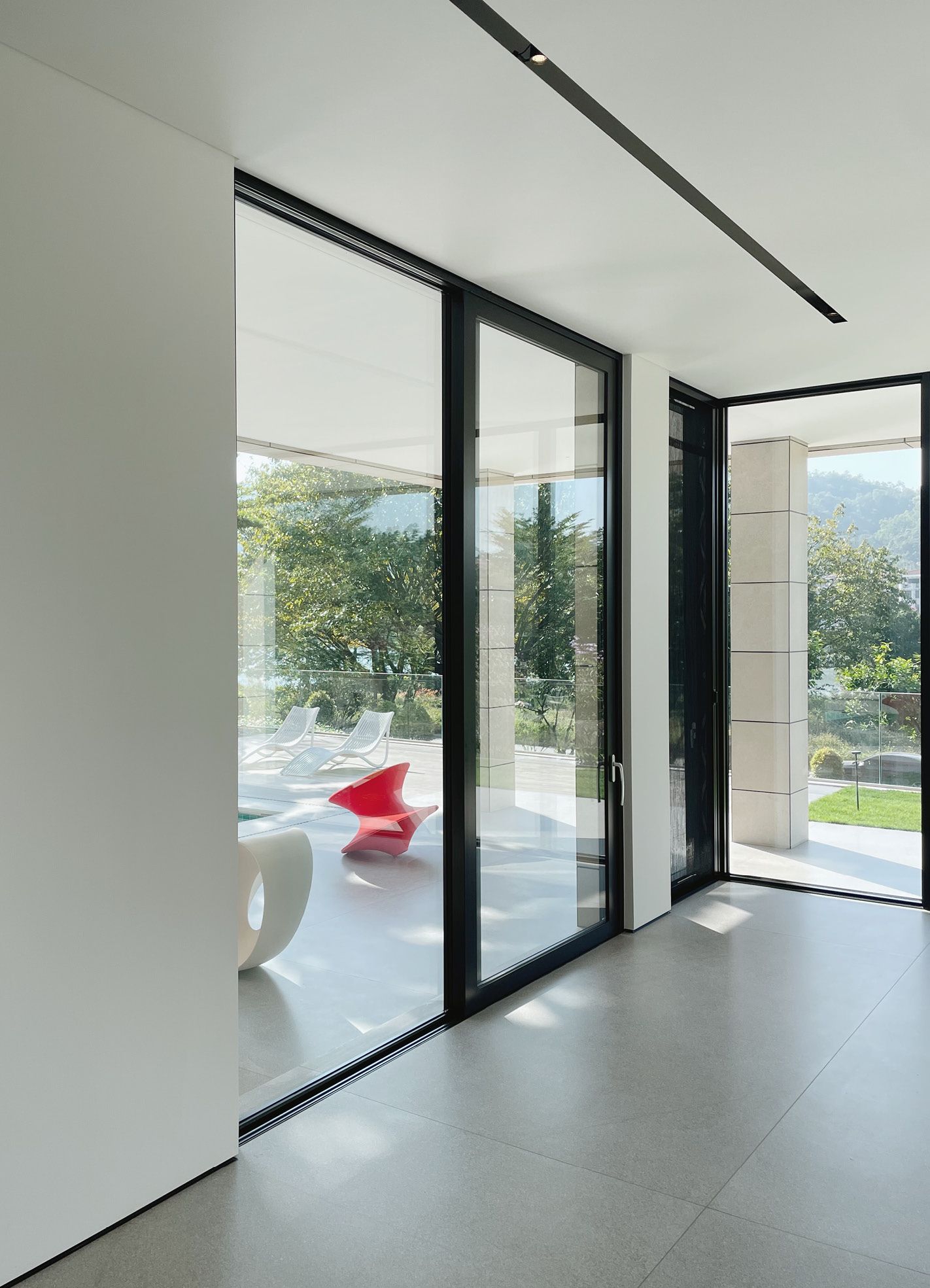

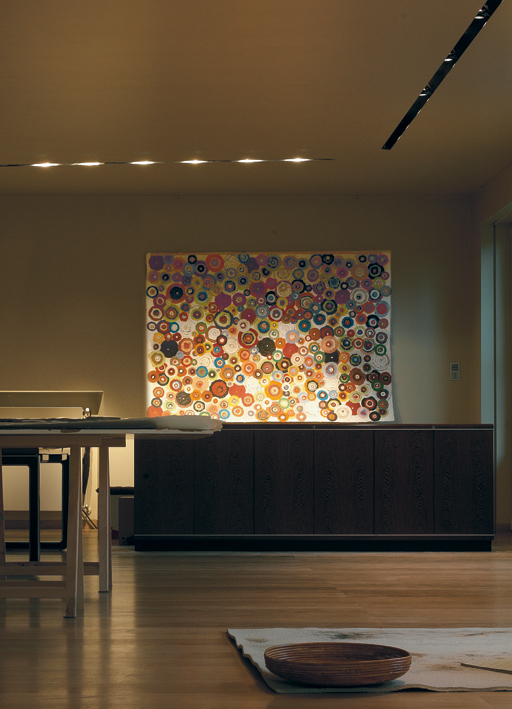

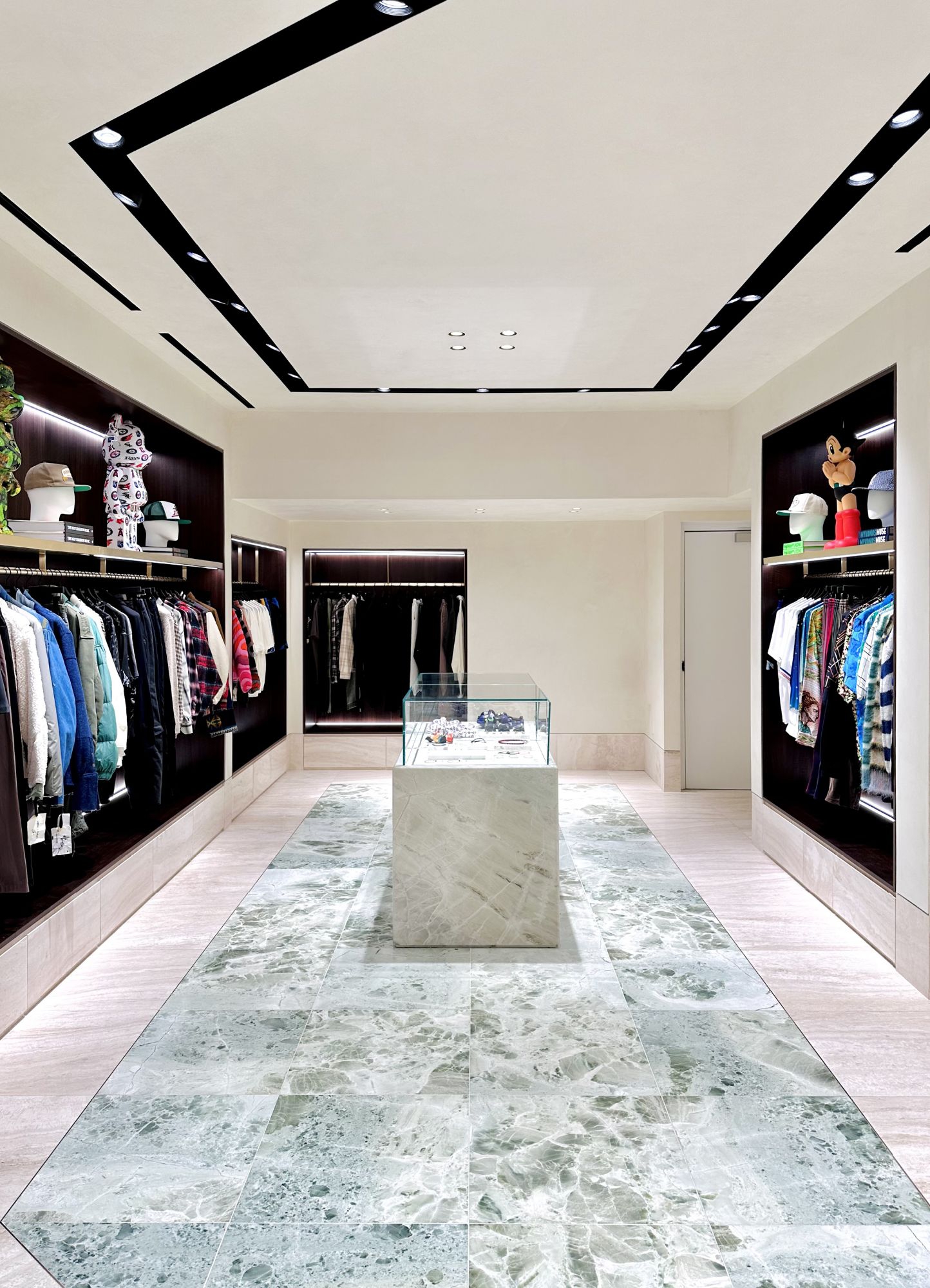

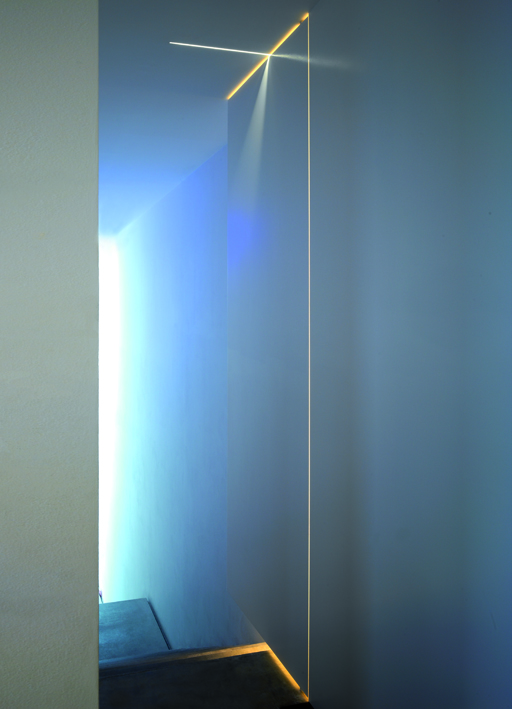

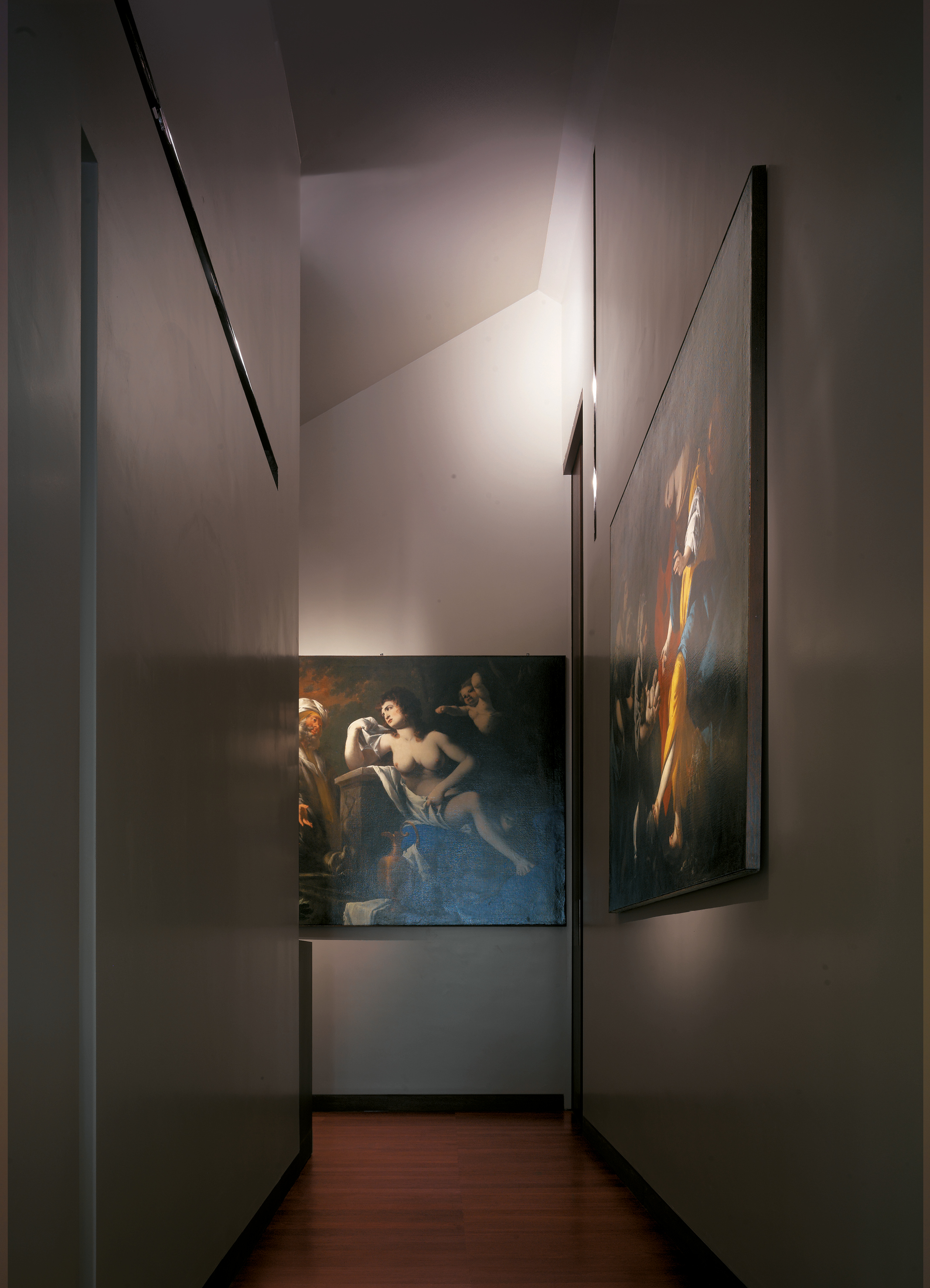

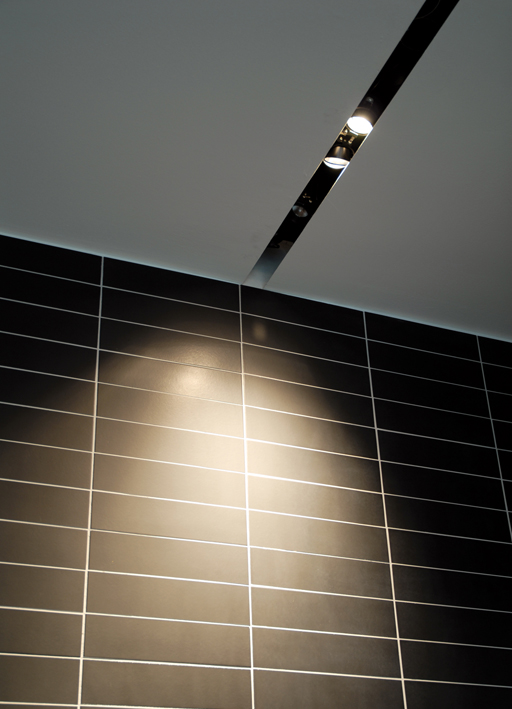

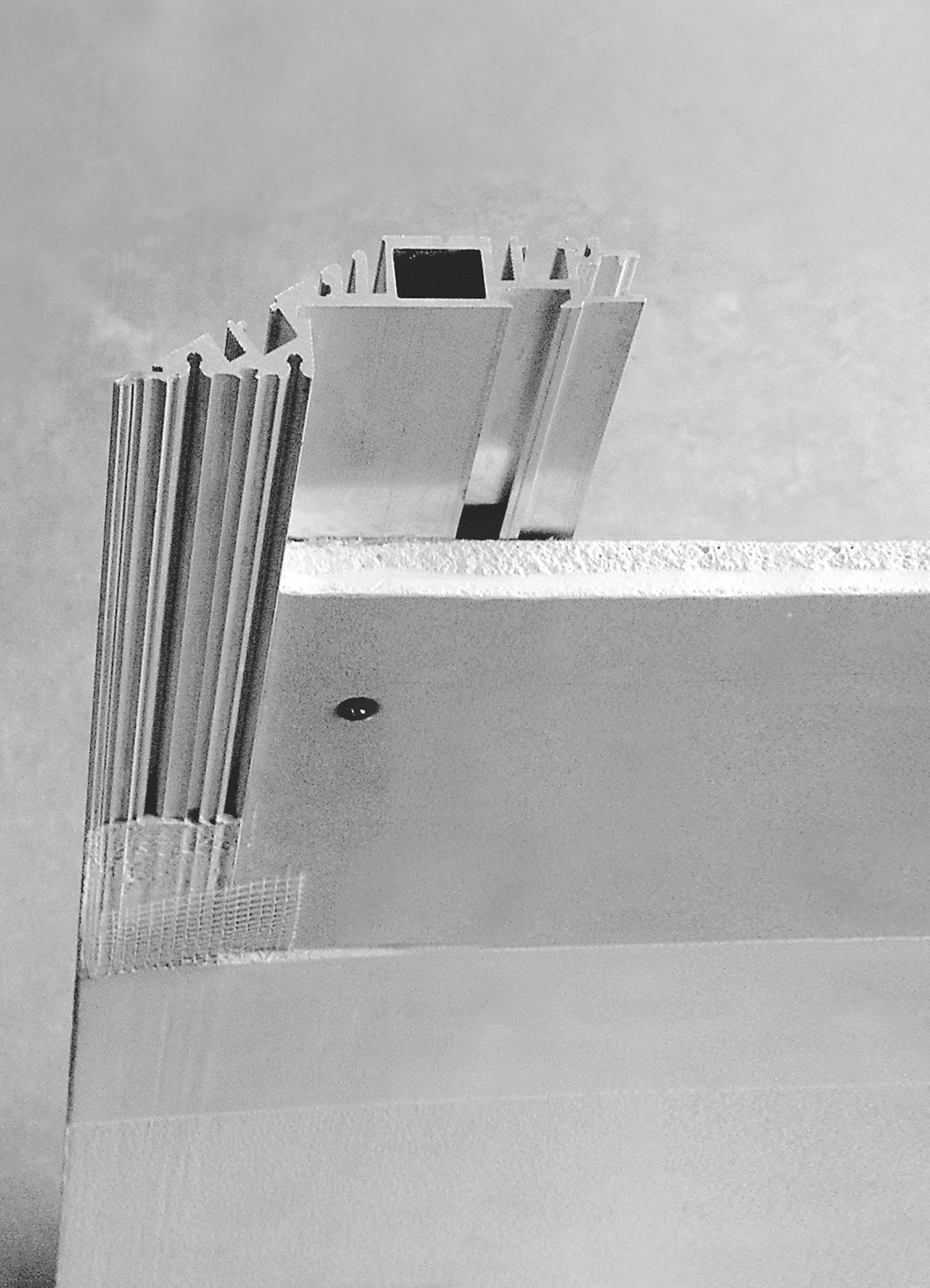

system designed to be integrated in the architecture, it not only suggests new ways of designing space through lighting but also enables services and technical installations to be integrated with spatial requirements. made of an extruded aluminium profile measuring 94x28.5mm/3.7x1.1’’ to obtain surfaces with tapered thickness for plasterboard, available for recessed or architectural cove installation. versions: 094 system h.15 for plasterboard fino a 15mm/0.6’’, 094 system h.18 for plasterboard fino a 18mm/0.7’’. the system gives maximum design flexibility using end plates to create 70mm/2.8’’ to 140mm/5.5’’ grooves, 500mm/19.7’’, 1000mm/39.4’’, 2000mm/78.7’’ or 3000mm/118.1’’ accessories: internal or external angular connectors, linear joints, compensatory thickness. the profile can be equipped with kit elettrici di cablaggio per sistemi integrati con l’architettura. finishes: natural aluminium and nero55 profile; nero55 and bianco V reflector and housings.
