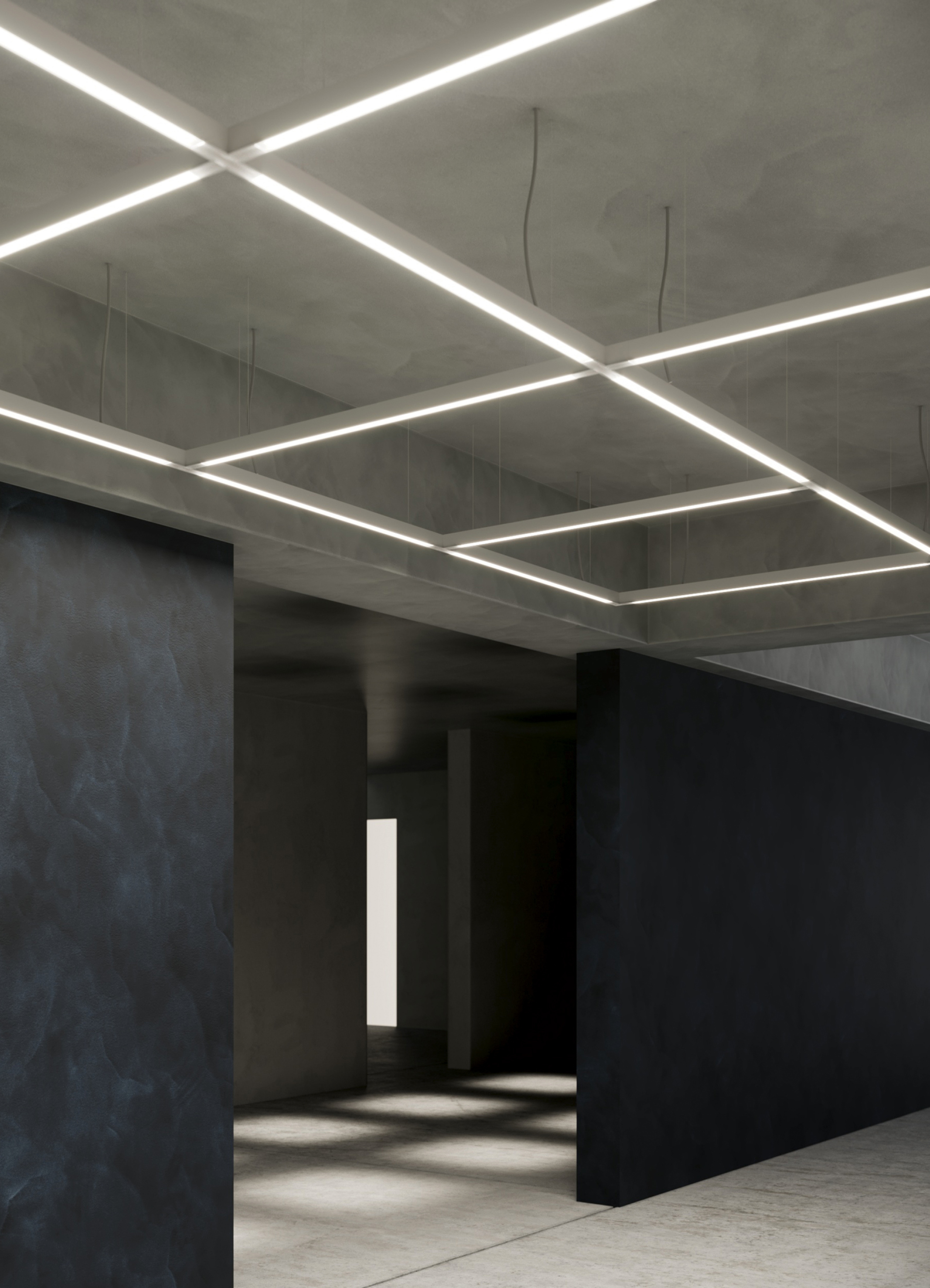

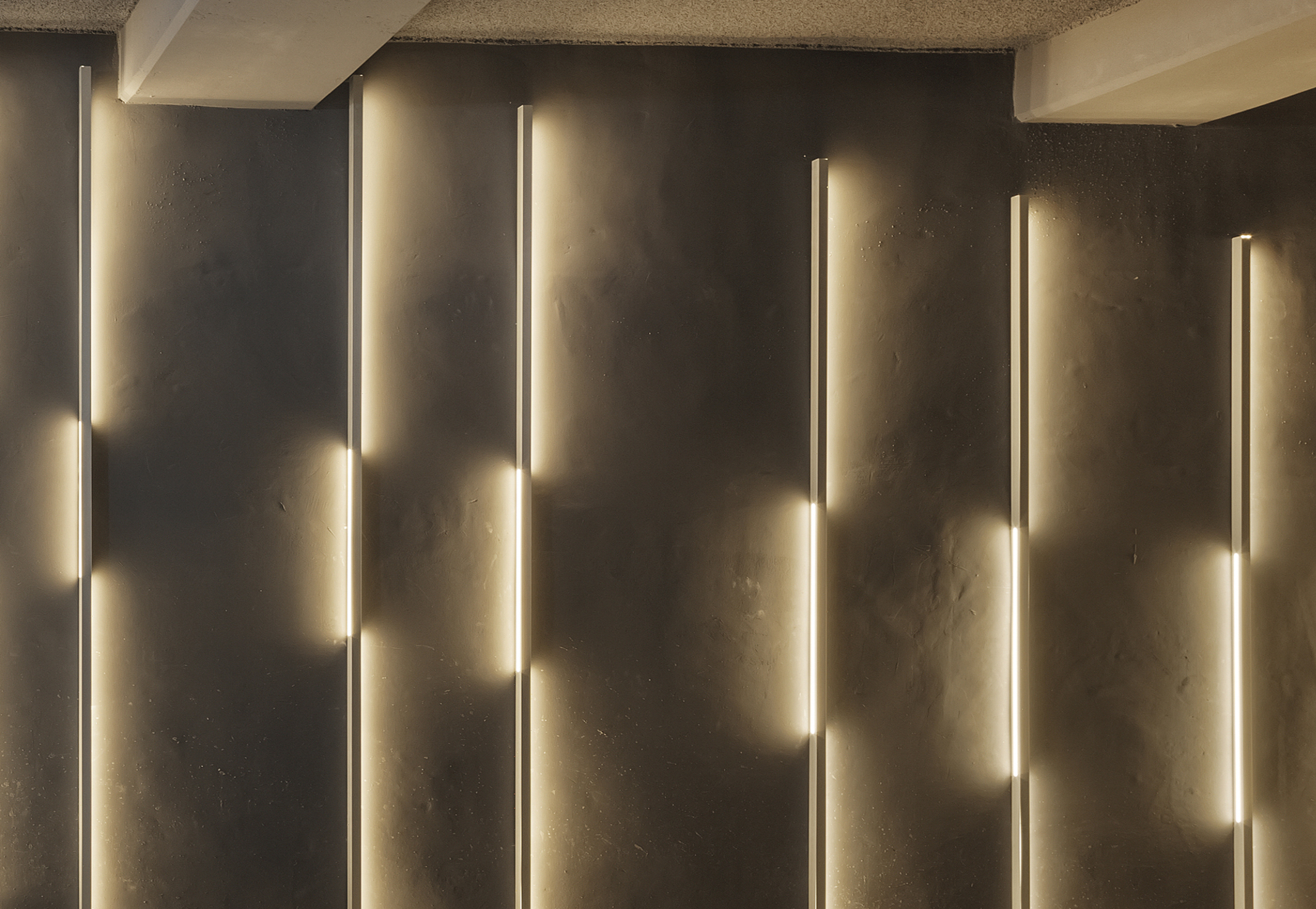

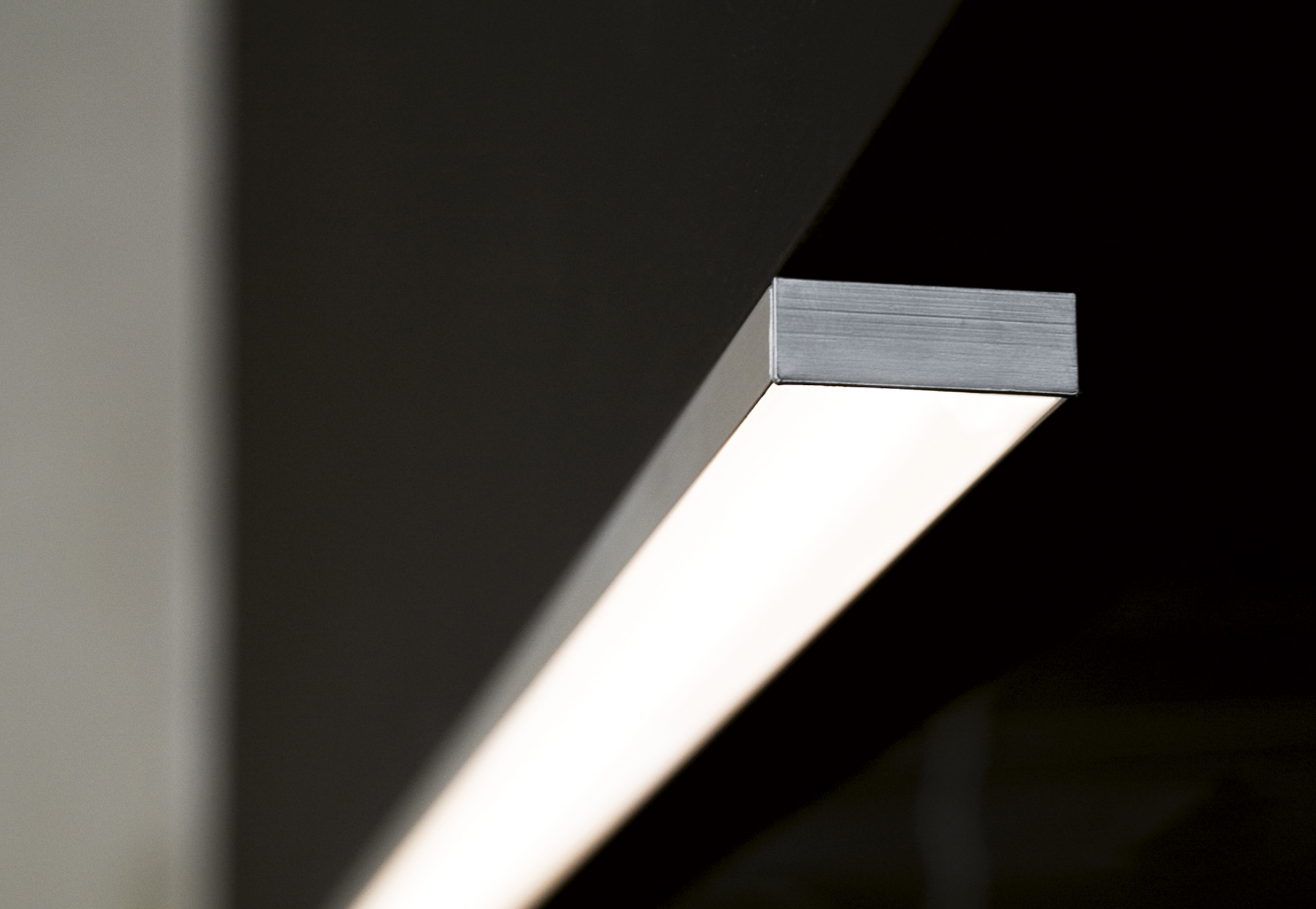

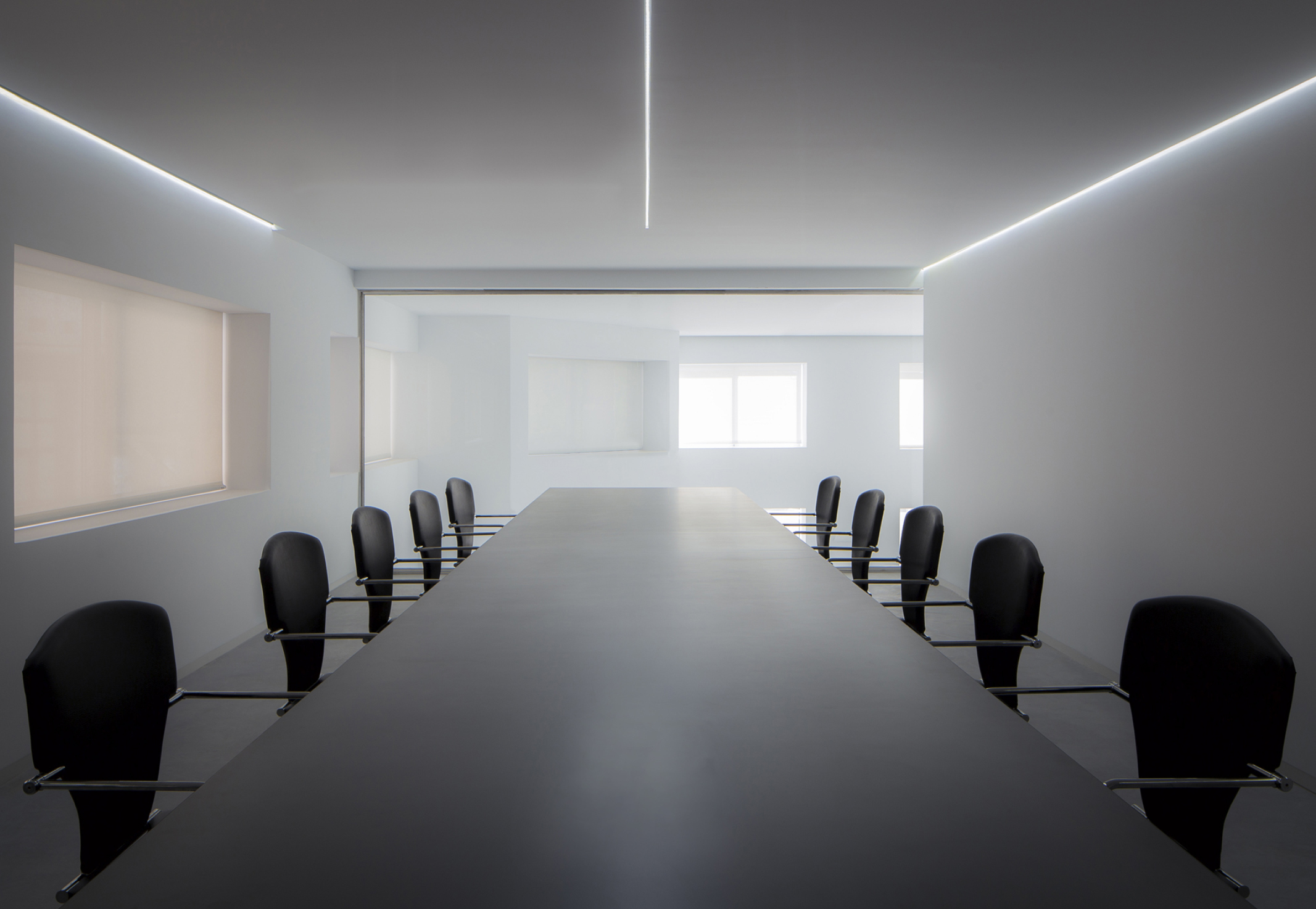

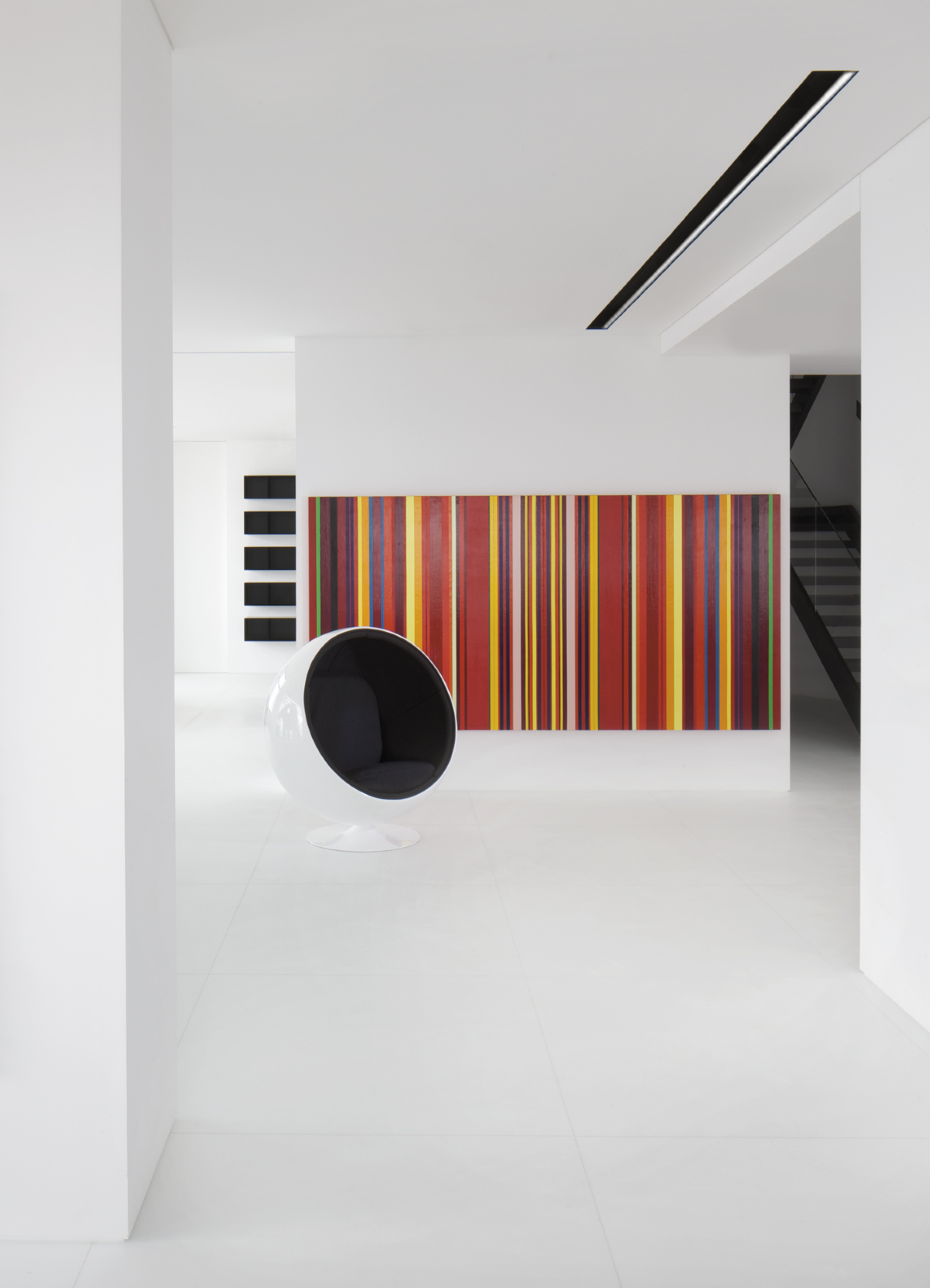

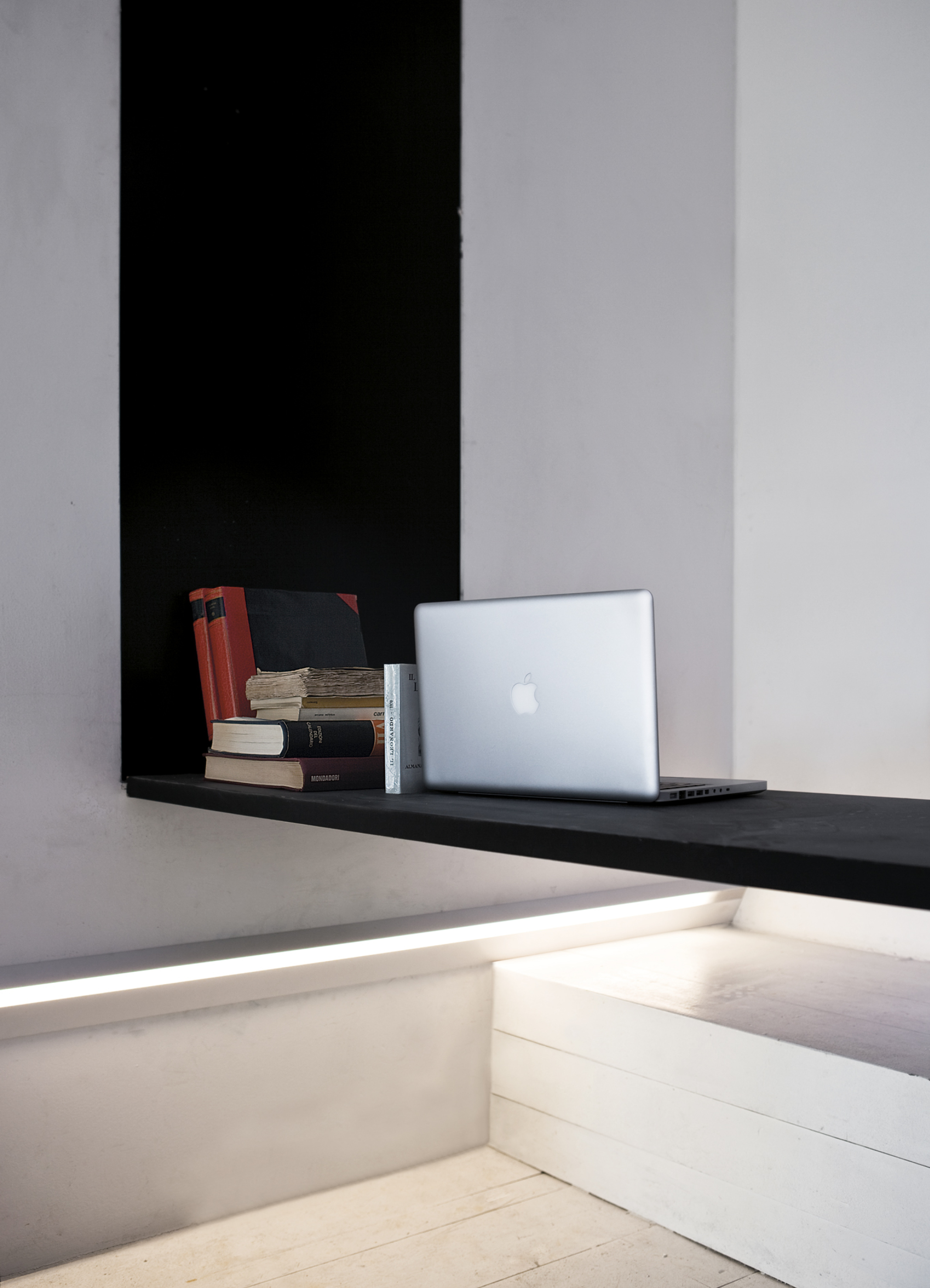

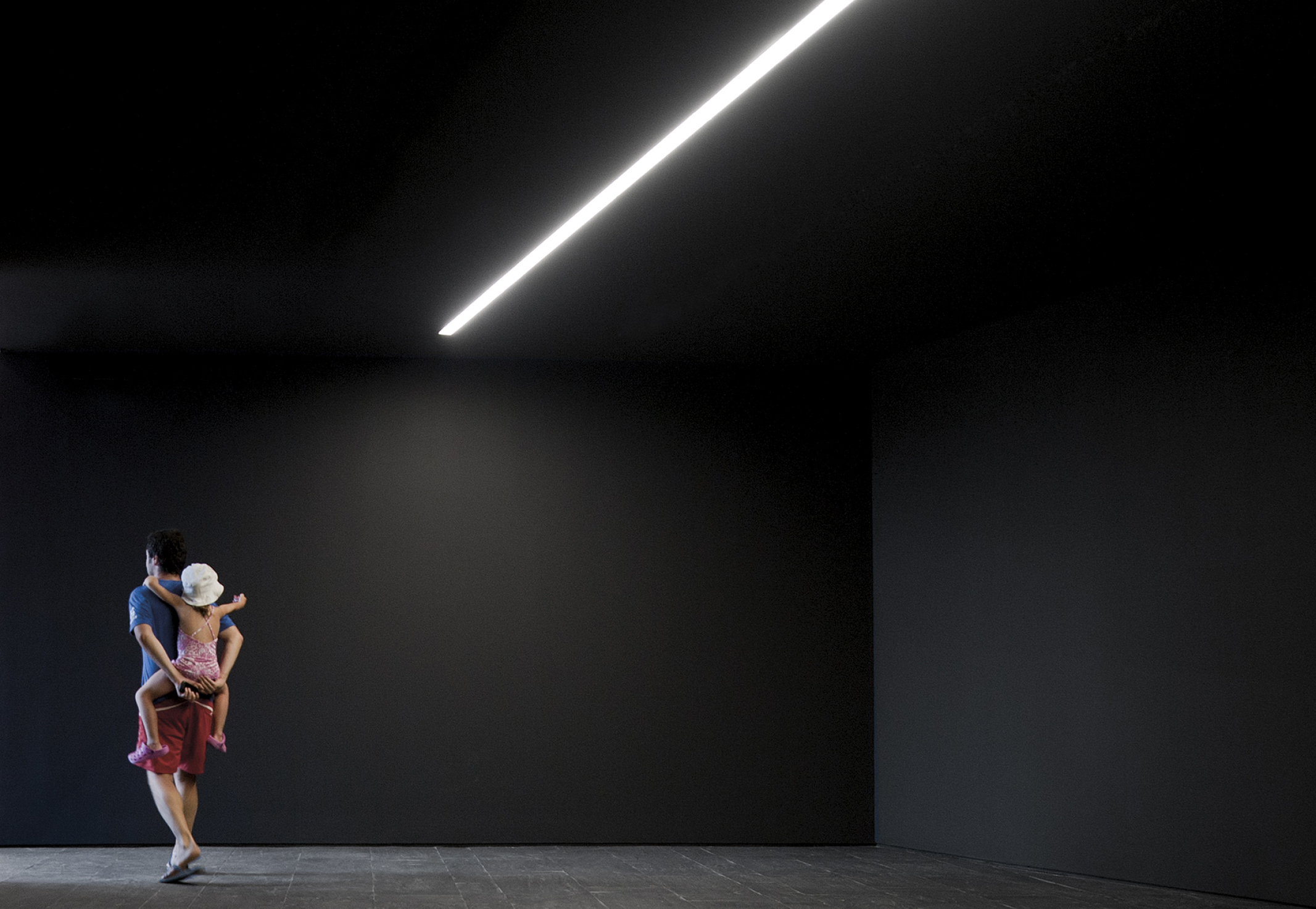

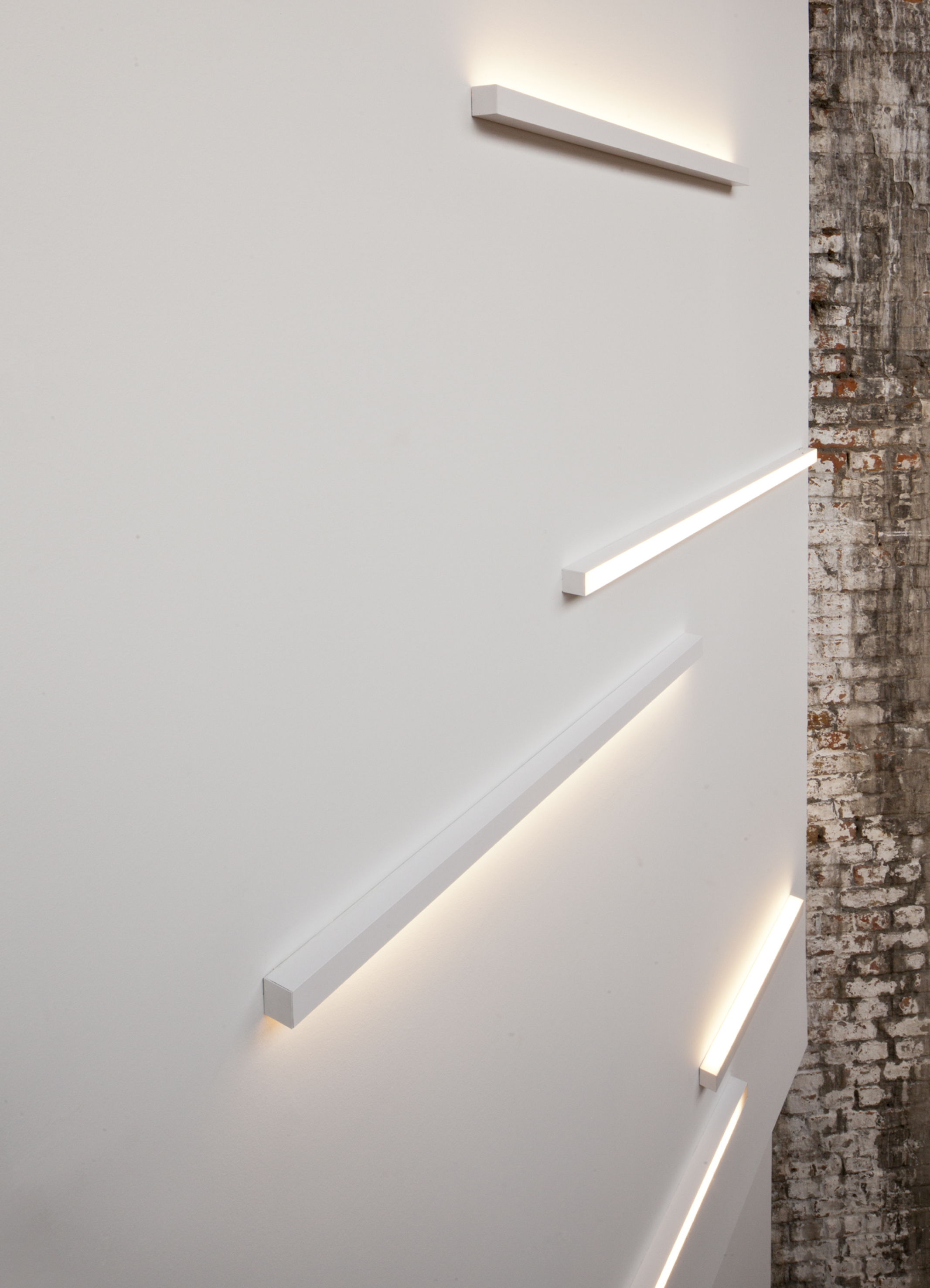

damp location rated modular system for indoor or outdoor use. made of powder and painted oxidised extruded aluminium, available in the configured version or to custom at user’s discretion. versions: c2 30x32 wall and ceiling version, ck 30x32, c1 30x48 wall, ceiling and suspension version, c1 40x48 recessed, ca 42x42 wall and ceiling version, c 16.64; css 92x48 fully concealed version; csr 60x68 fully concealed grazing version. each hollow profile can be cutted to the desired length and is suitable to accommodate the following electrical wiring kits: kit with linear led source and frosted polycarbonate diffuser, kit with linear led source and h.5mm/0.2’’ frosted polycarbonate diffuser, kit with linear led source and prismatic polycarbonate diffuser, kit with linear led source and polycarbonate elliptical lens, micromen spotlight kit 36,8x30x120mm/1.5x1.2x4.9’’ wired with 2700K and 3000K 2x1W up to 2x90lm led source, vangogh spotlight kit 42x30x125mm/1.6x1.2x4.9’’ wired with 2700K and 3000K les6 2x2,2W 2x214lm, trentotto spotlight kit diameter Ø38mm/1.5’’ 60x250mm/2.4x9.8’’ wired with 2700K and 3000K 6W 19° and 41° up to 544lm led source, eco mini spotlight kit with diameter Ø55mm/2.2’’ 69x250mm/2.7x9.8’’ wired with 2700K and 3000K 12.4W 13° and 12.7W 19° 31° led source with dimmer. all the electrical kits are powered with 24Vdc constant voltage, power supply not included. accessories: lateral end caps, c system blind lid, linear joints, push-button, various fittings, adjustable hooks for integrated systems, 120V/24Vdc power supply, suspension kit, led sources supports. finishes: profiles, vangogh spotlight kit, trentotto kit, eco mini spotlight kit matt silver, bianco V and nero55.
