traccia sistema
2018

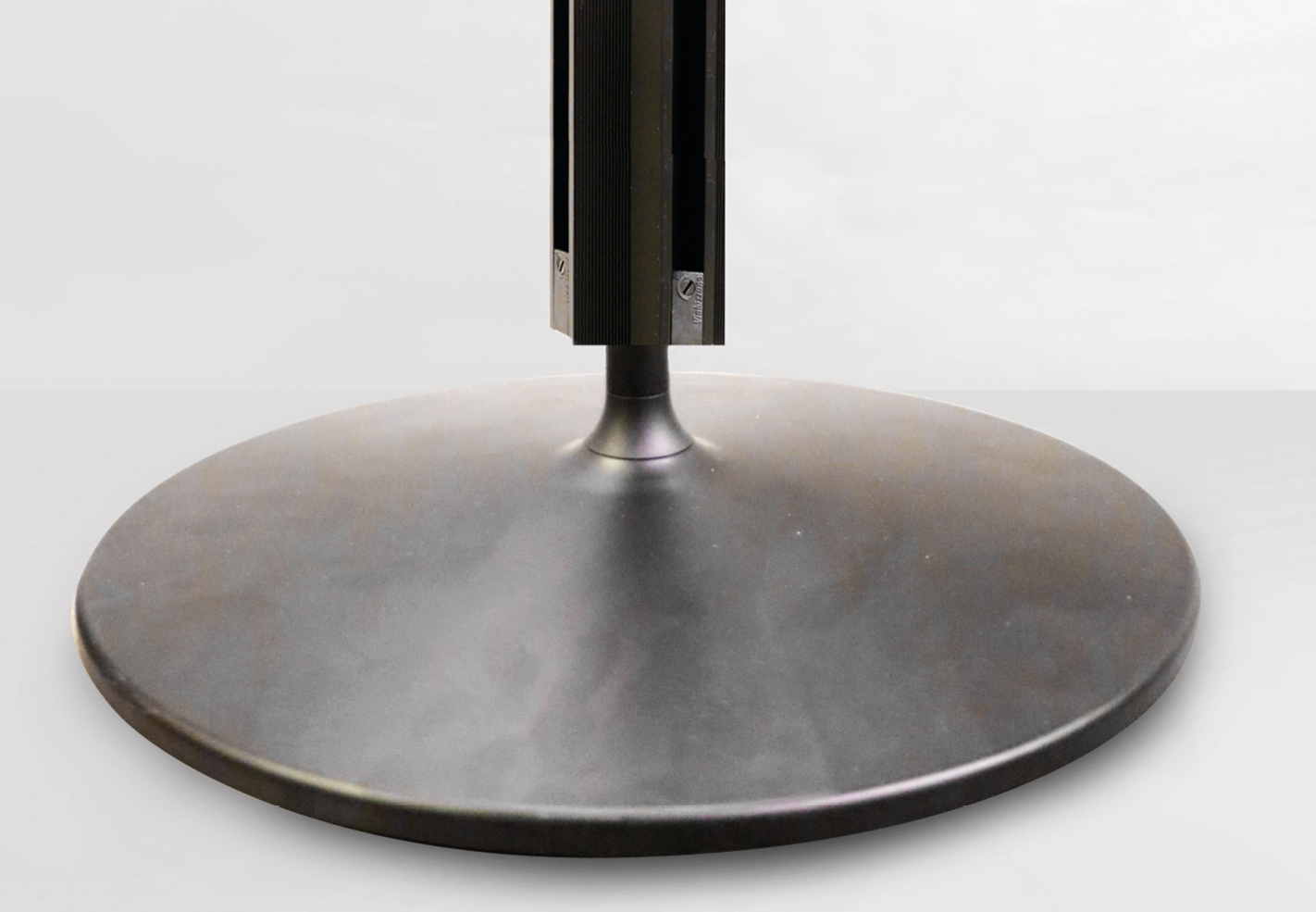

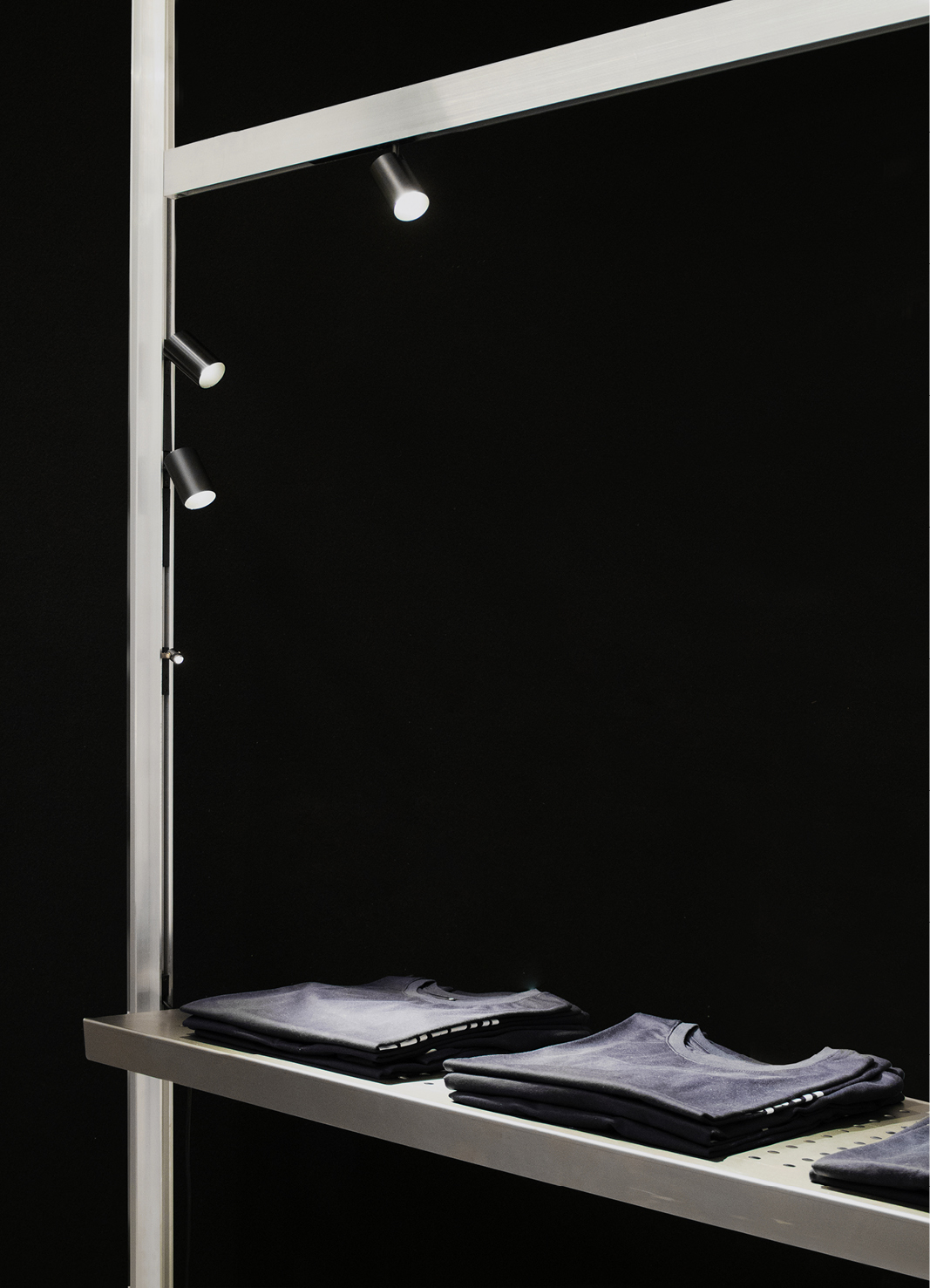

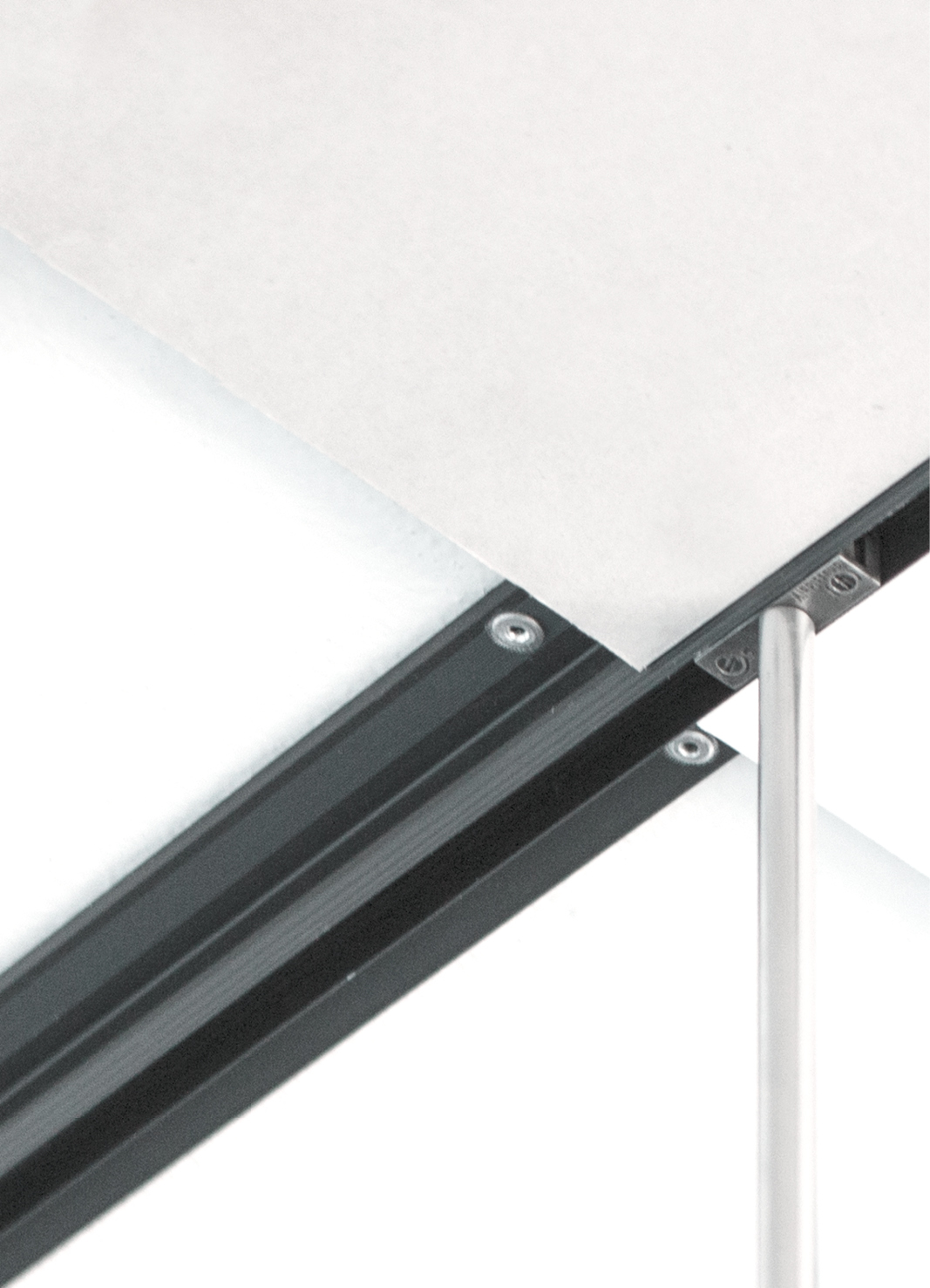

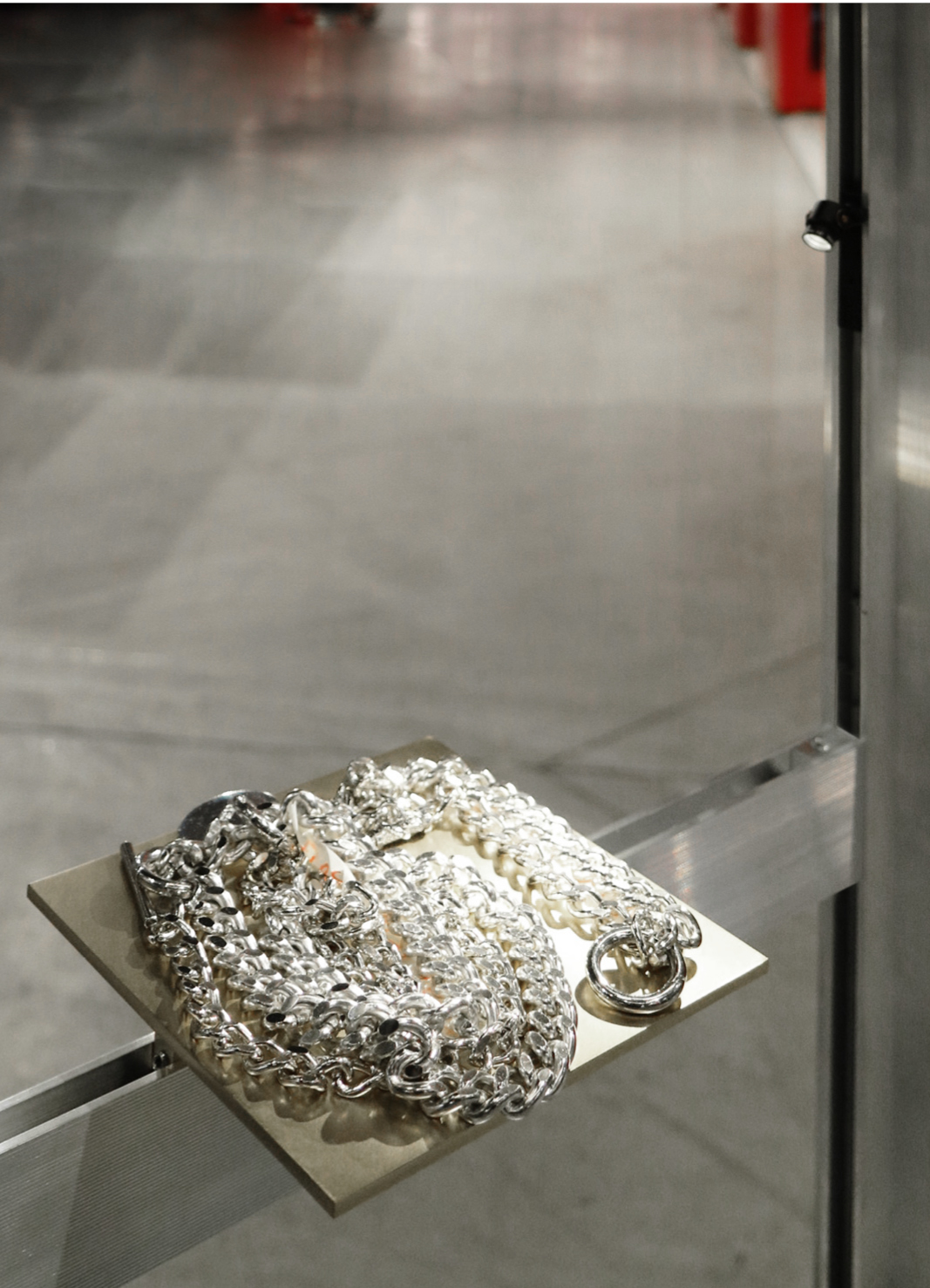

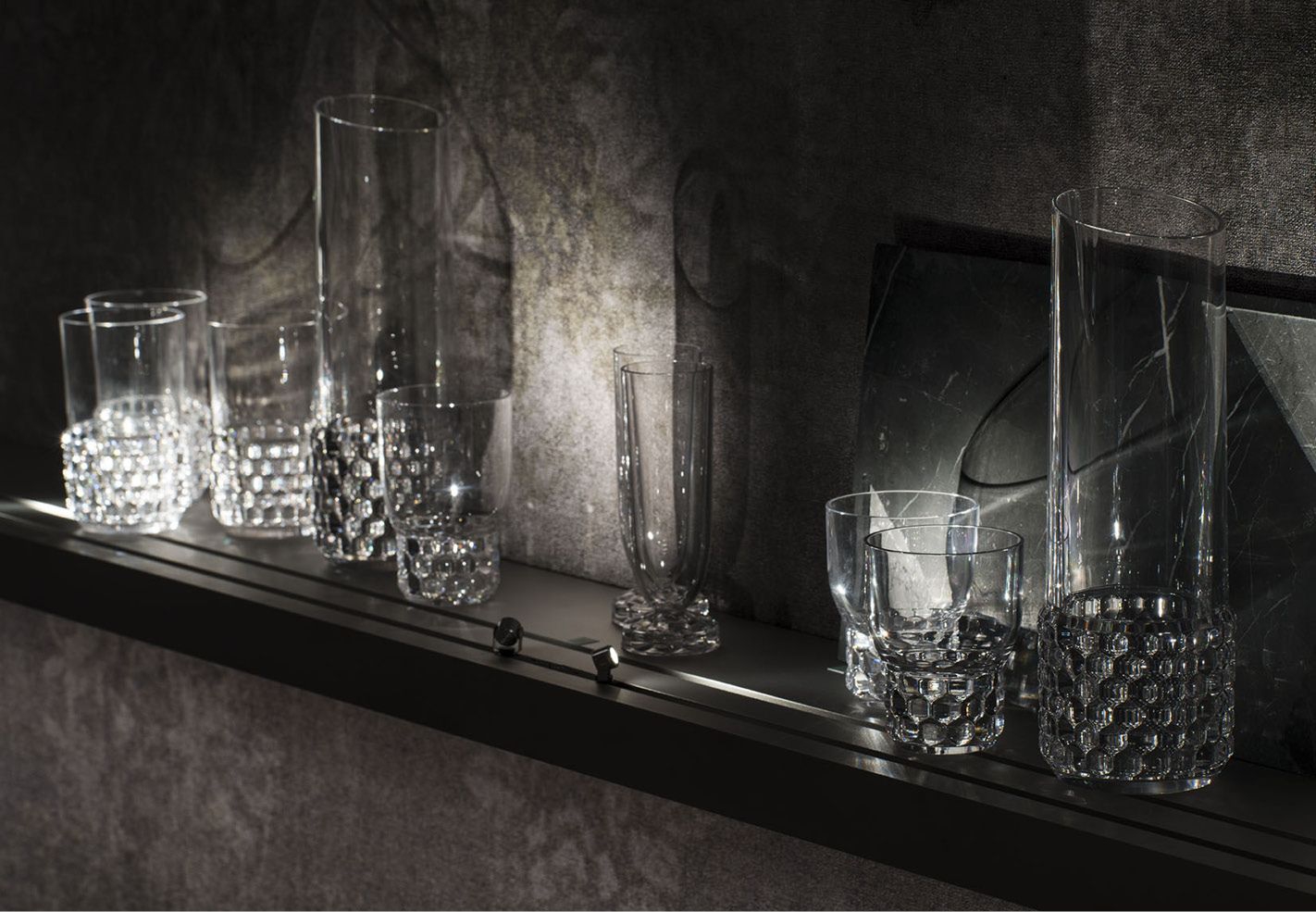

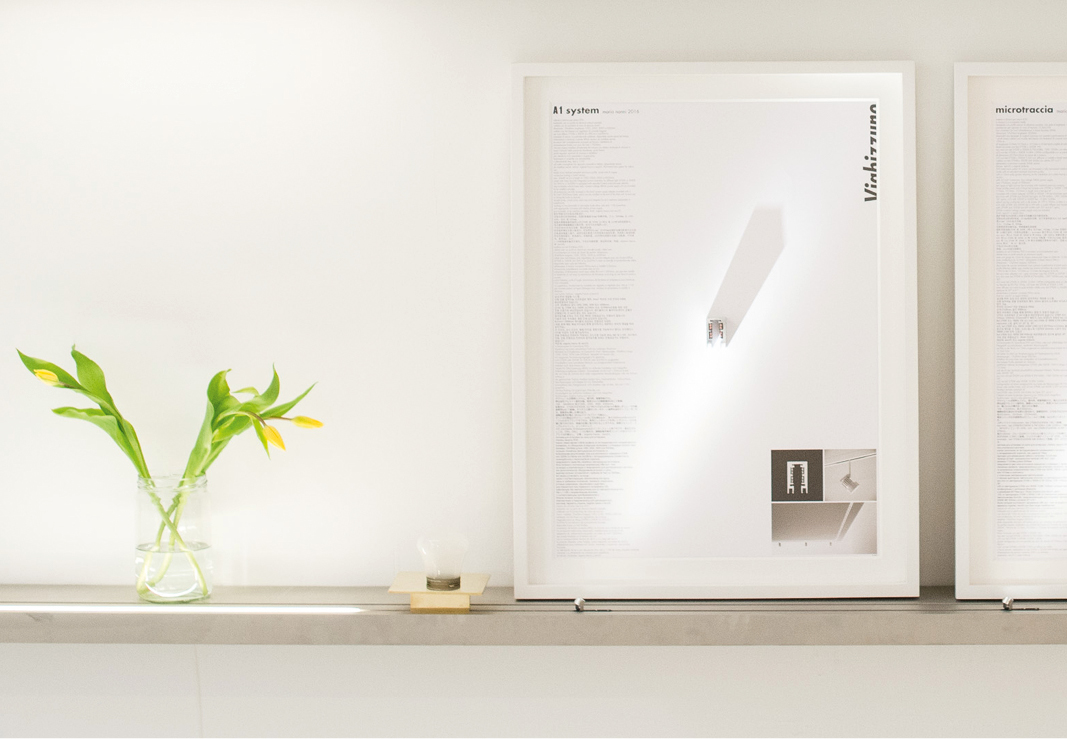

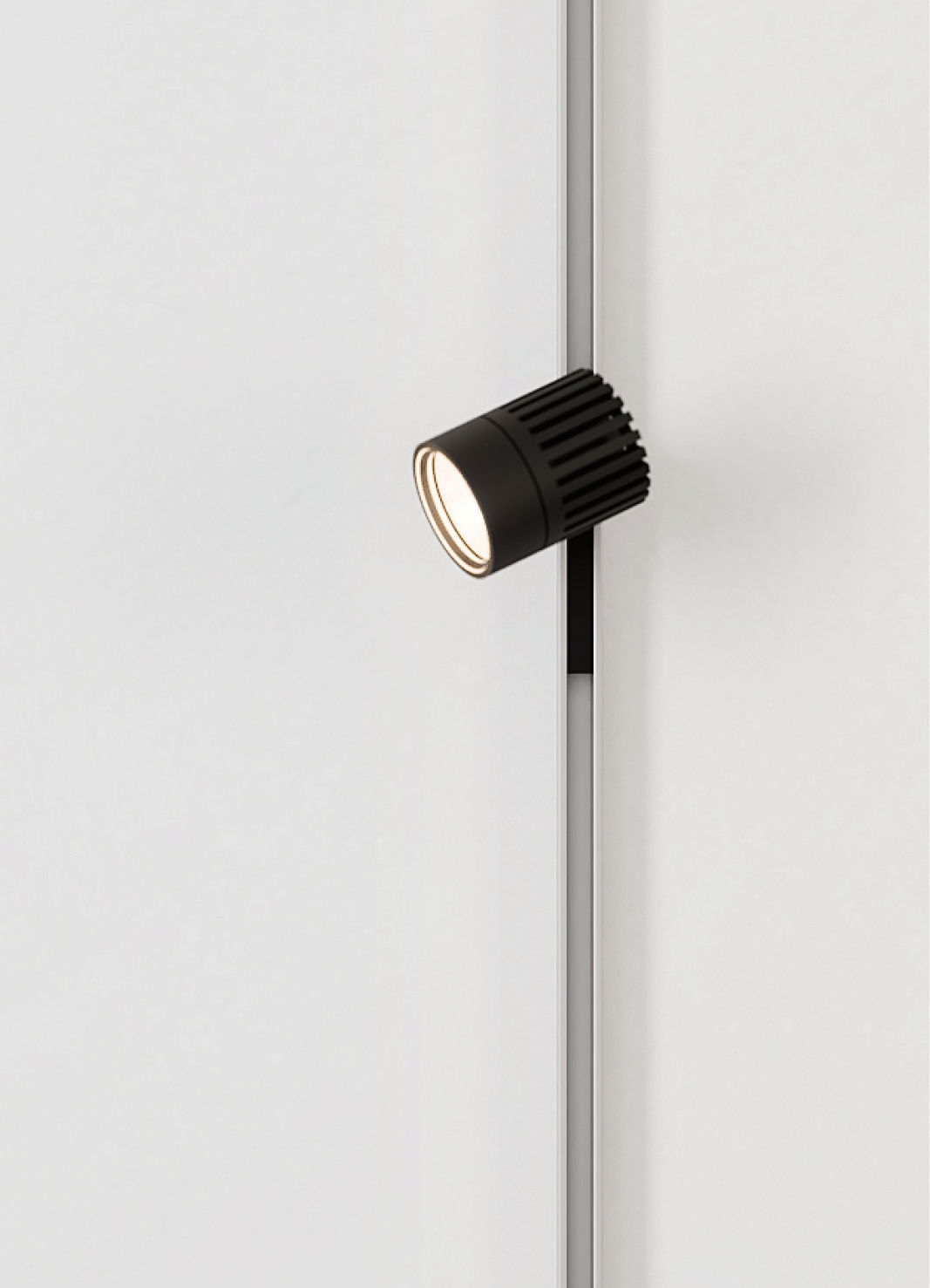

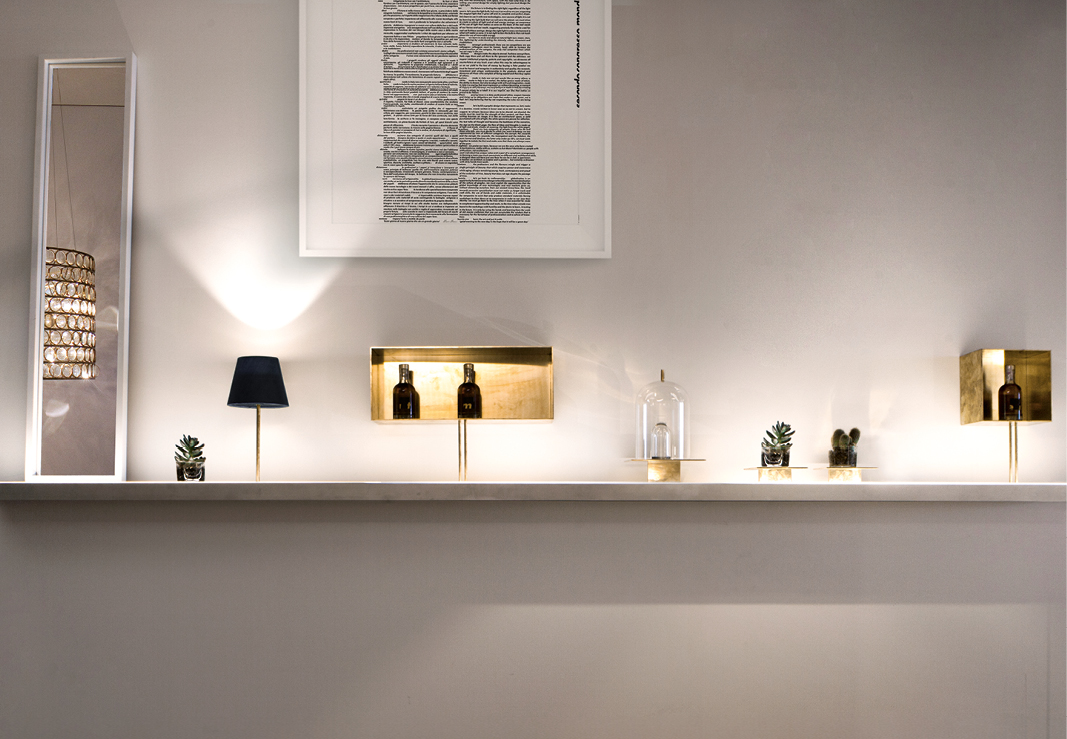

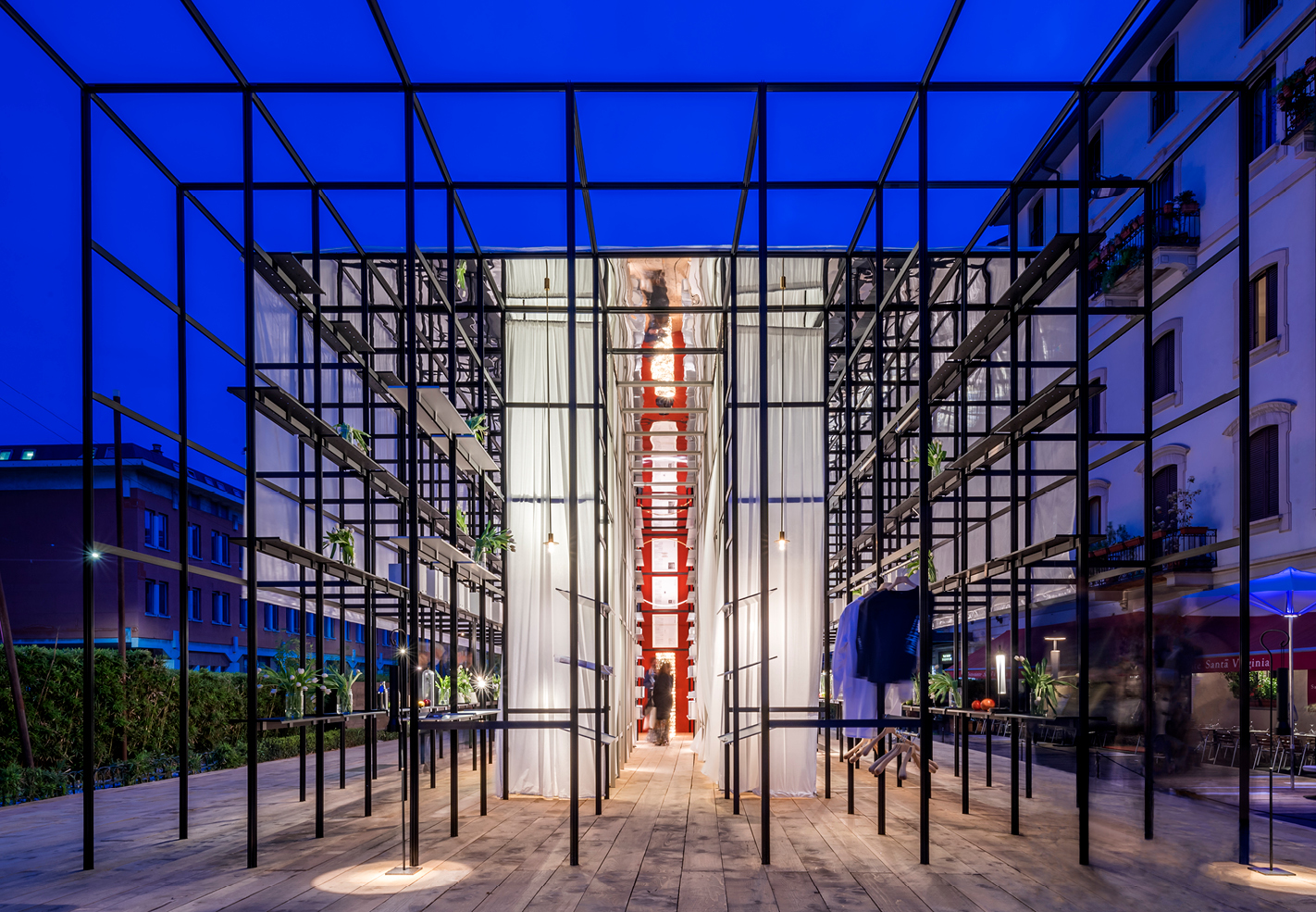

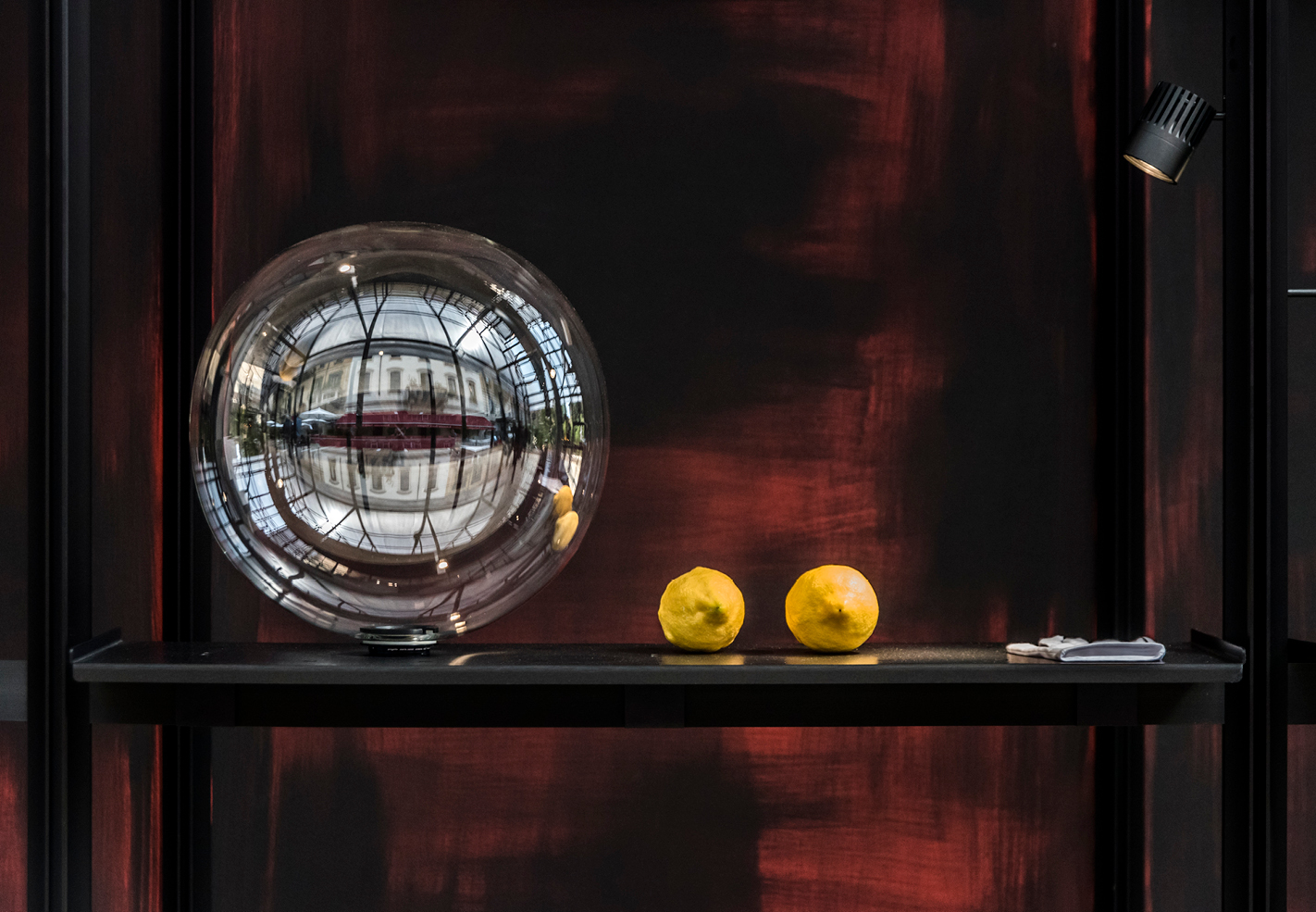

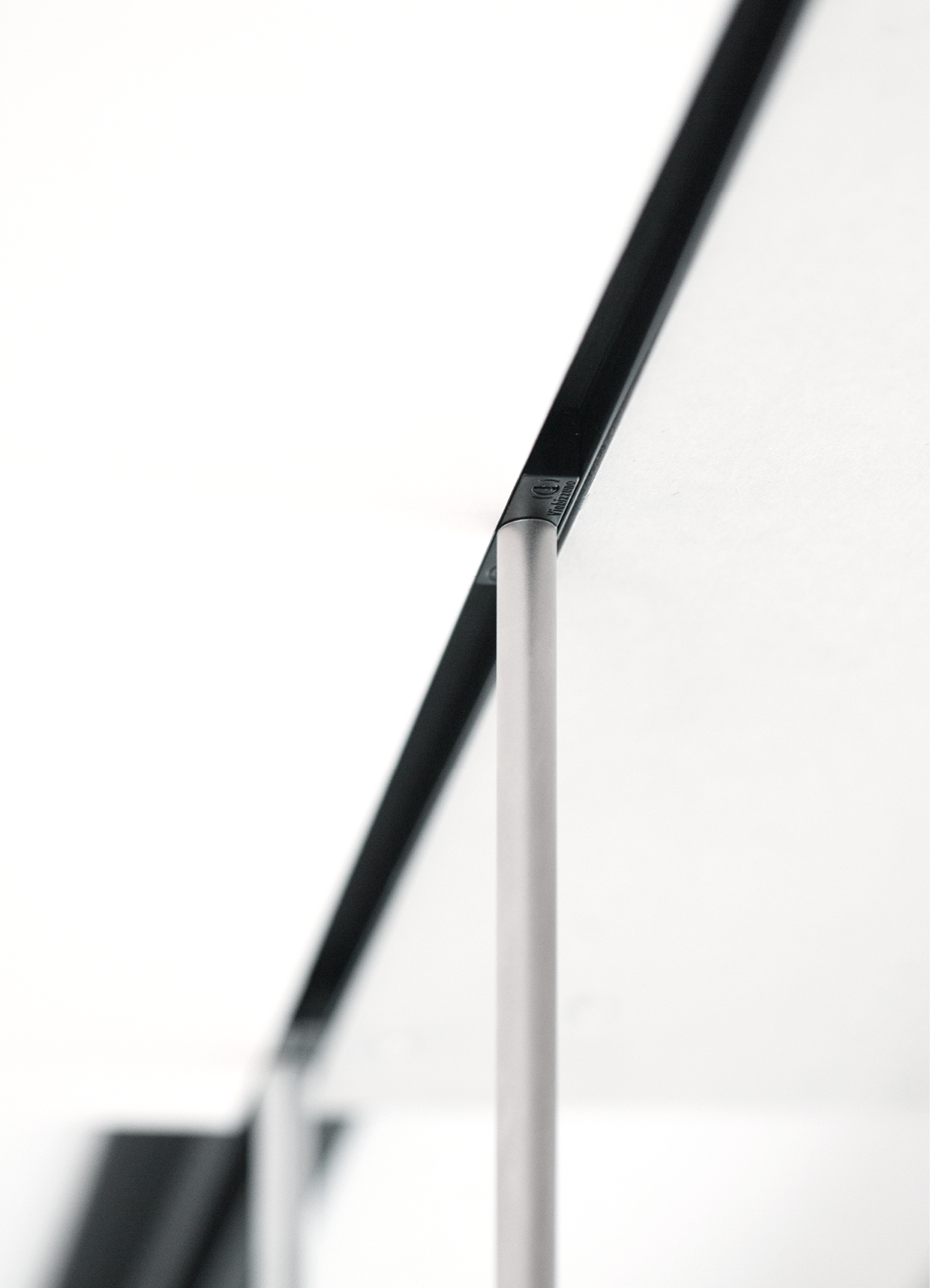

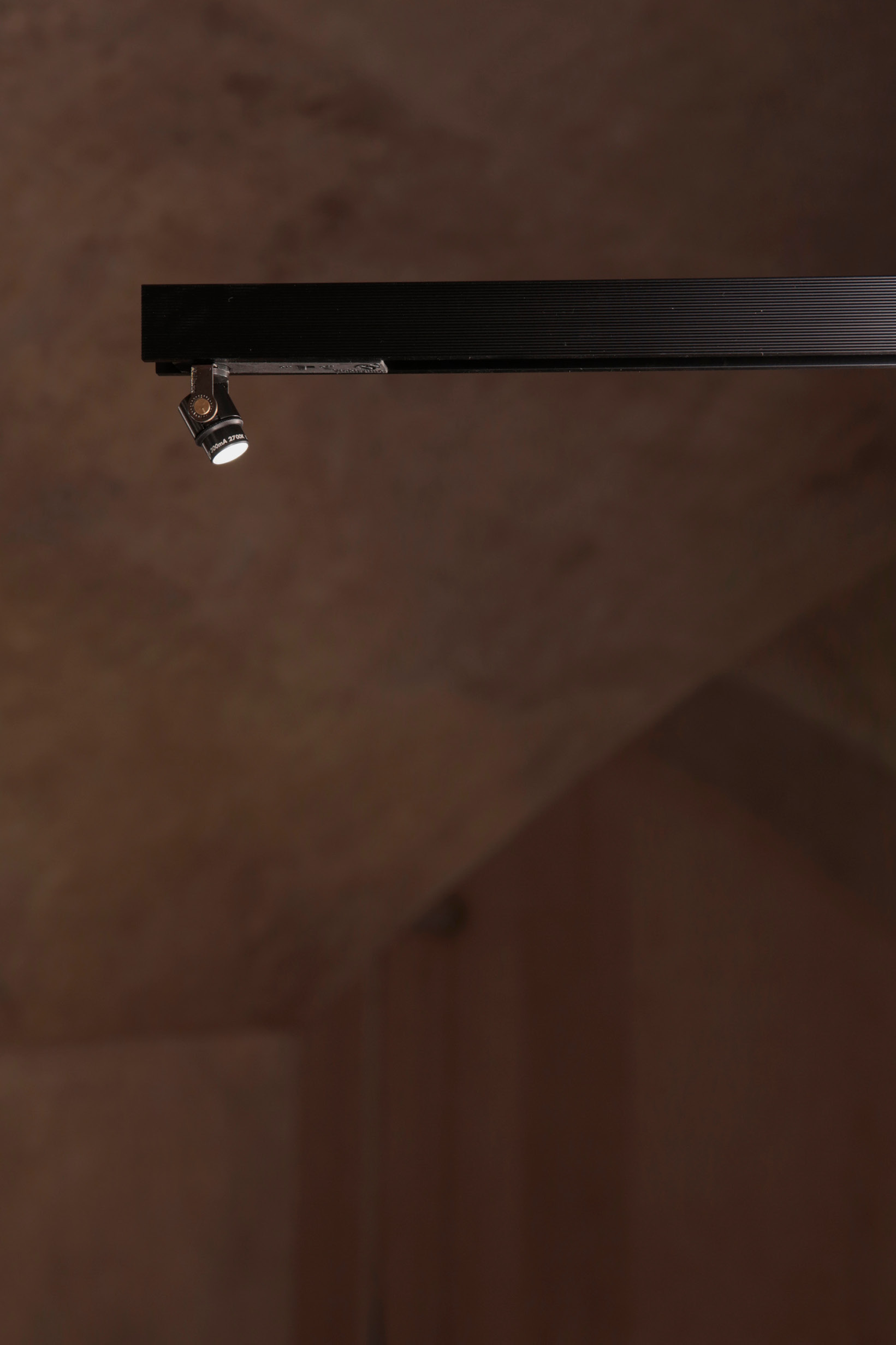

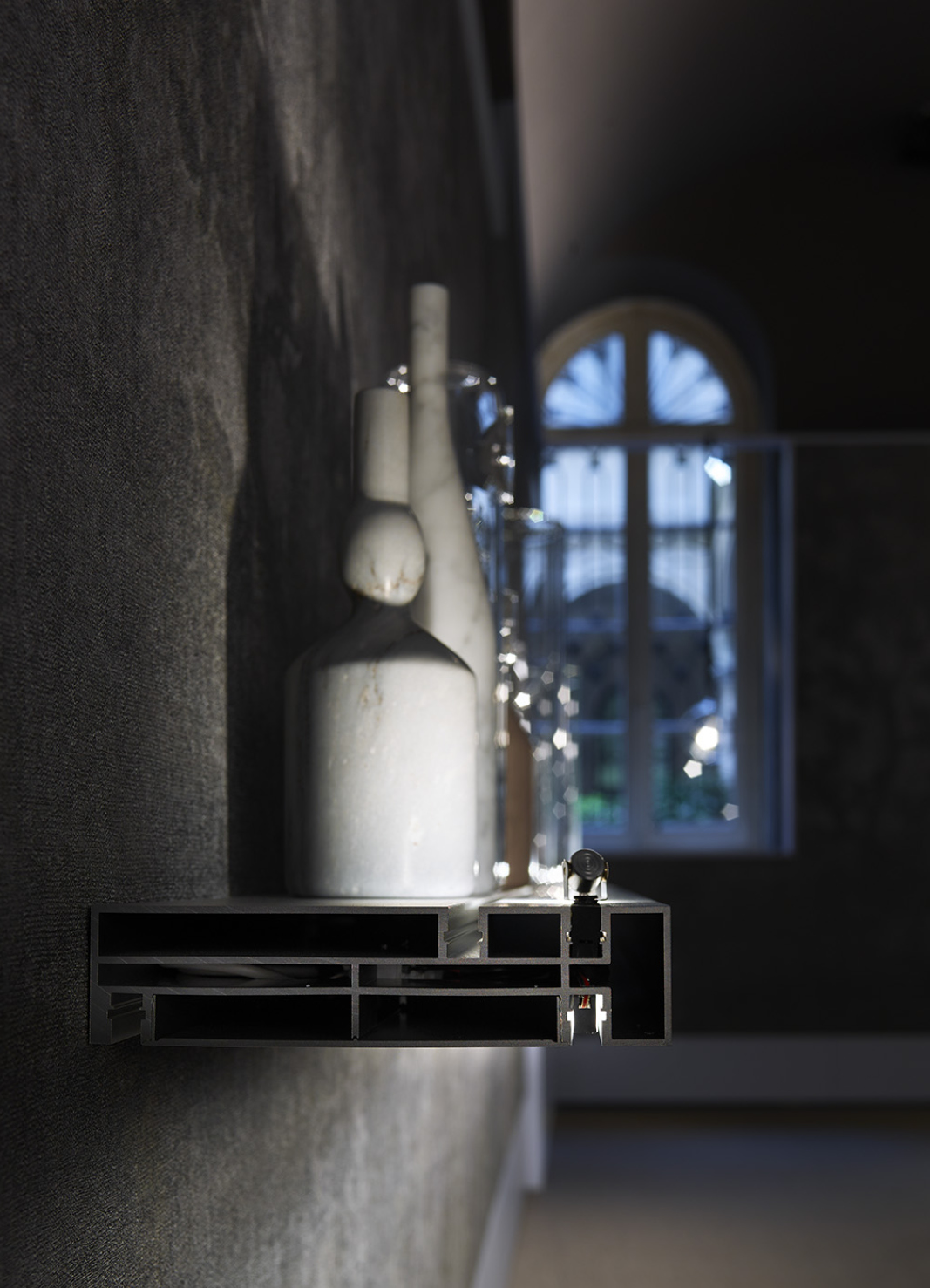

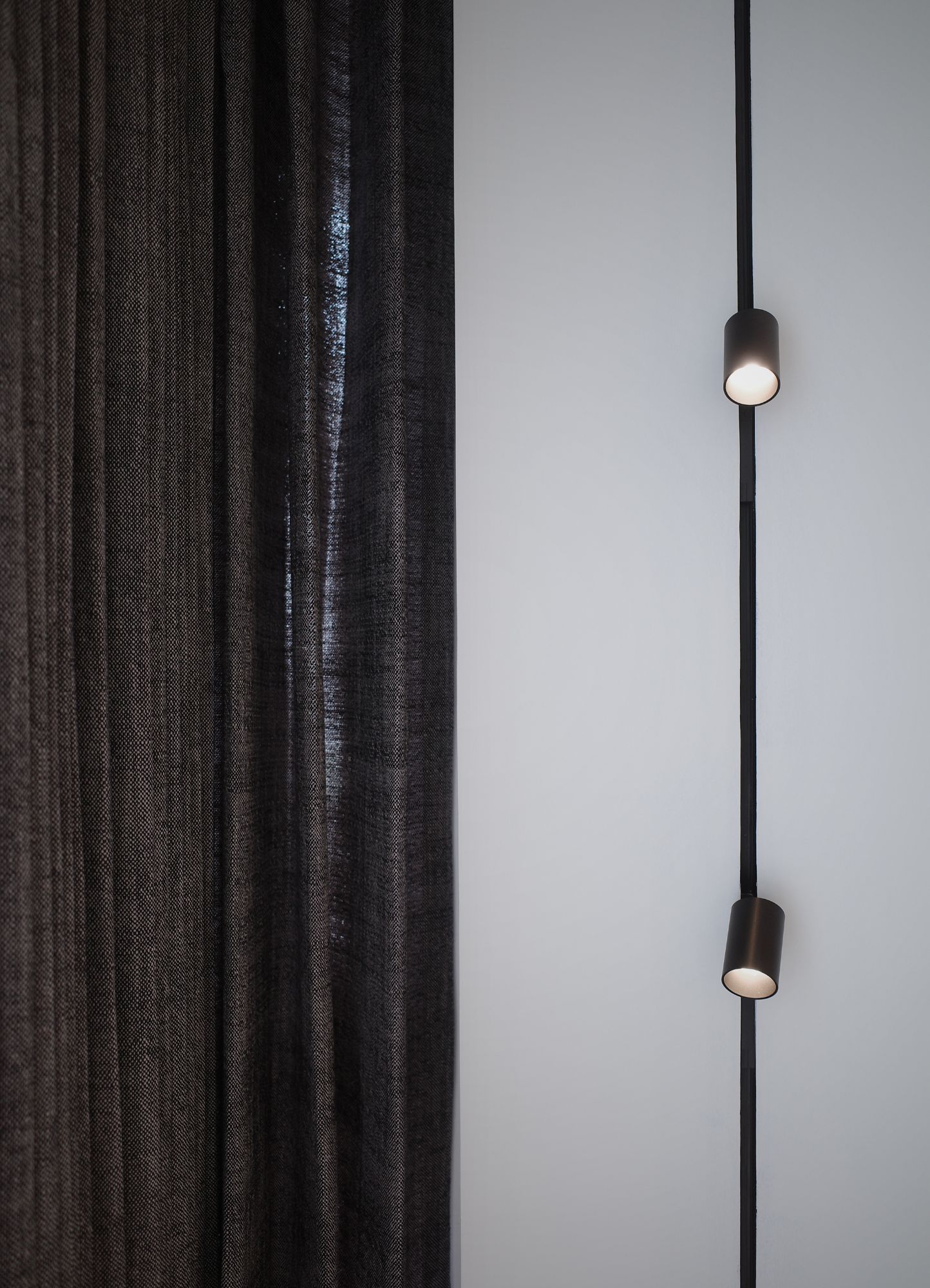

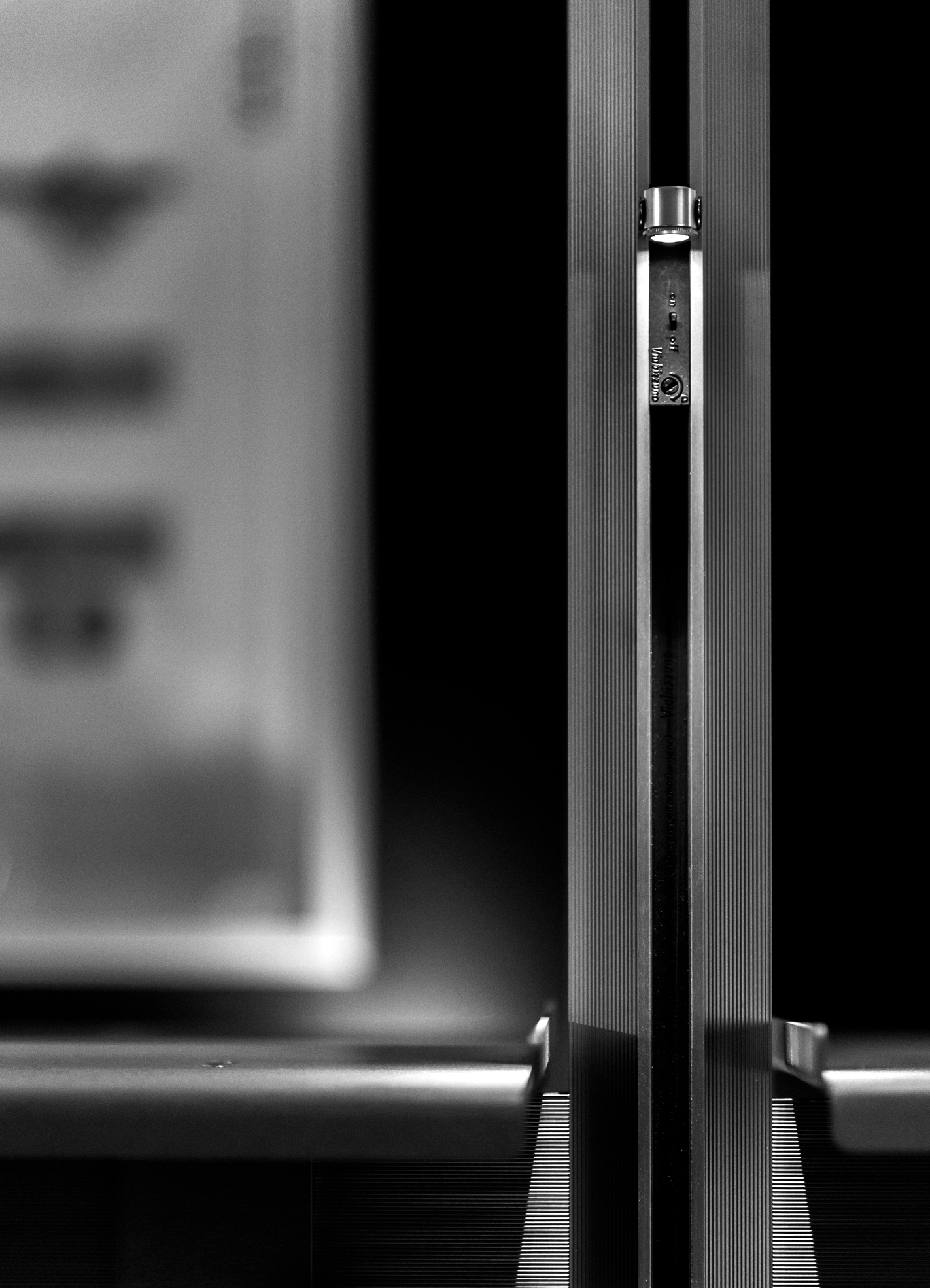

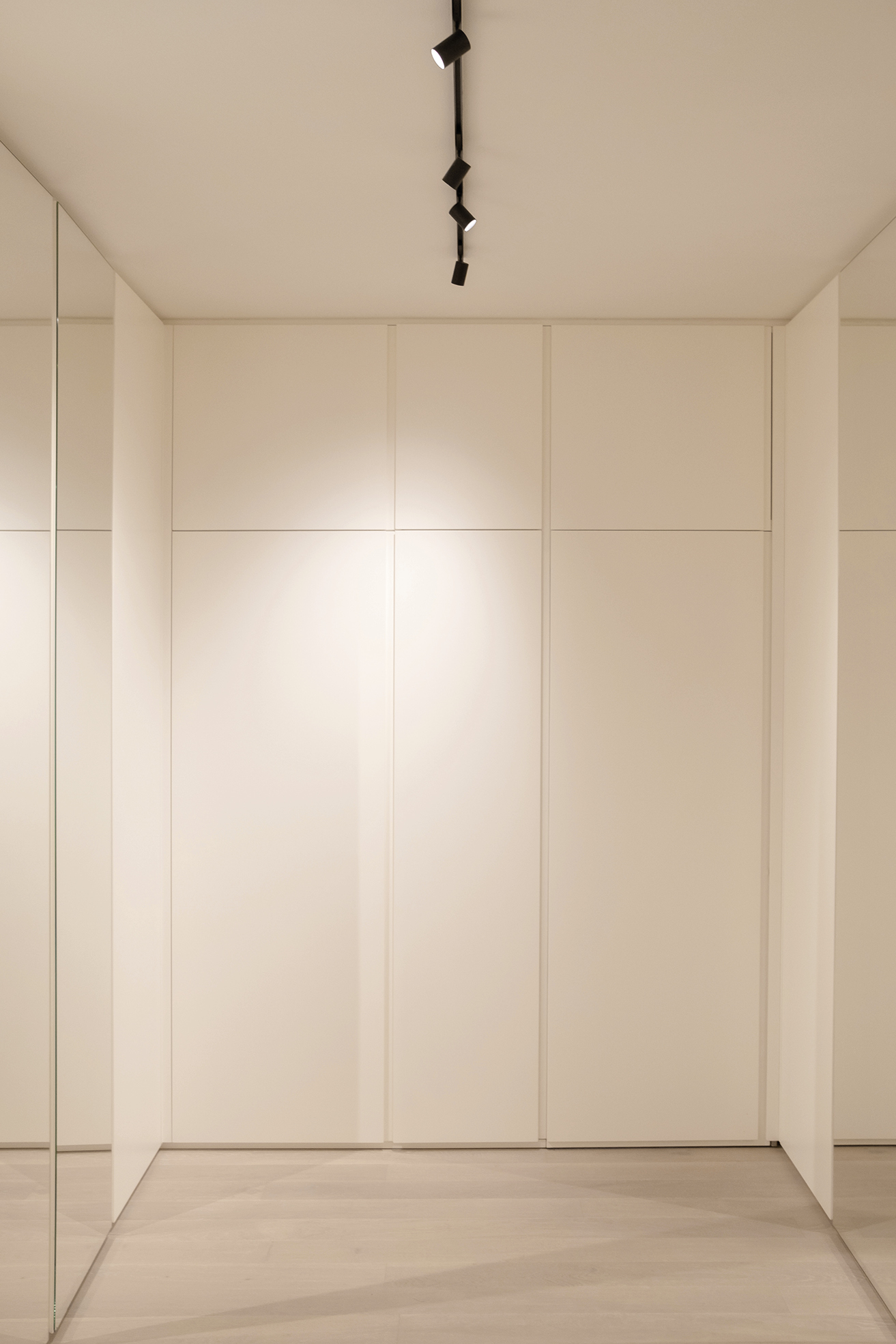

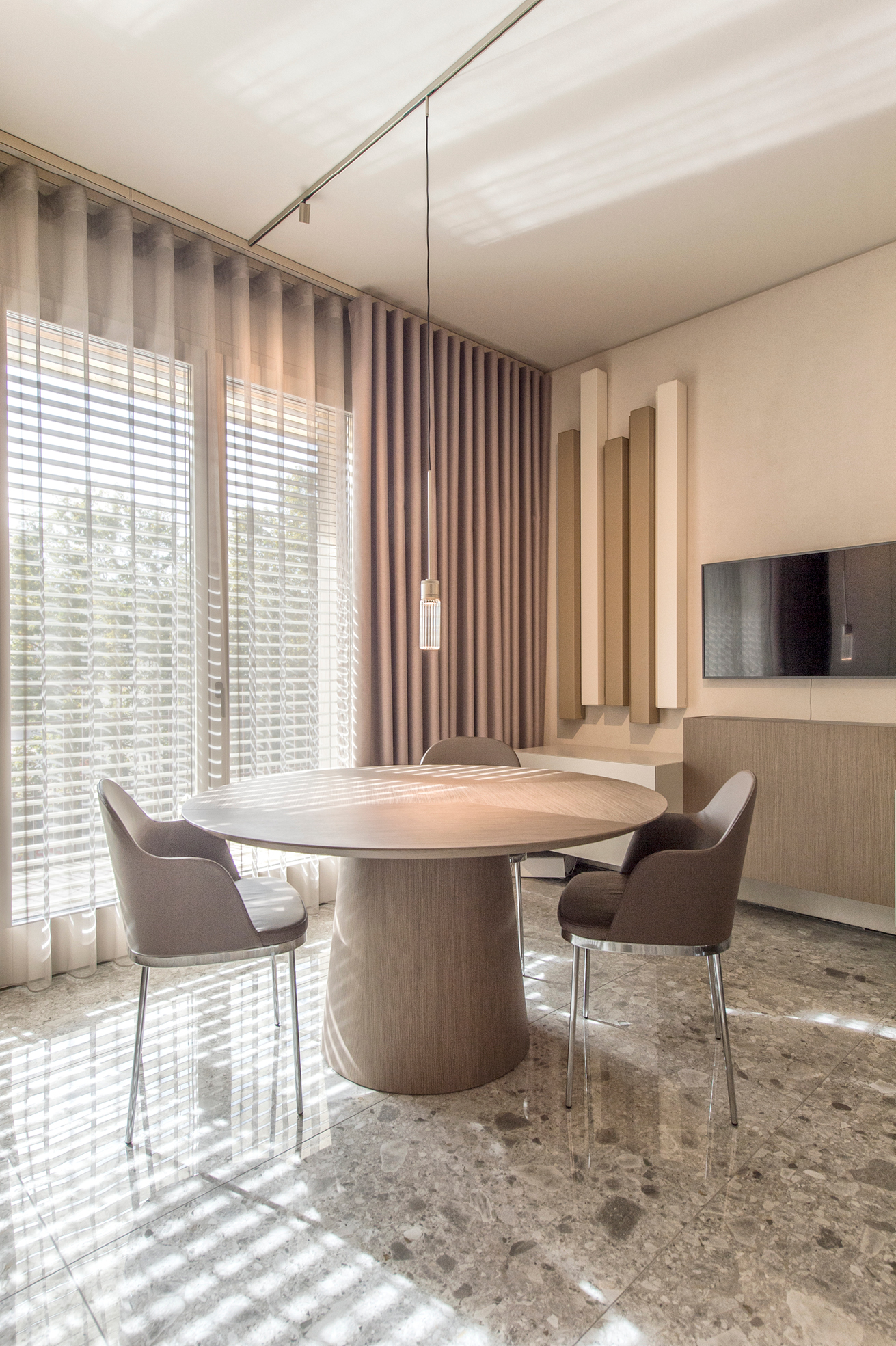

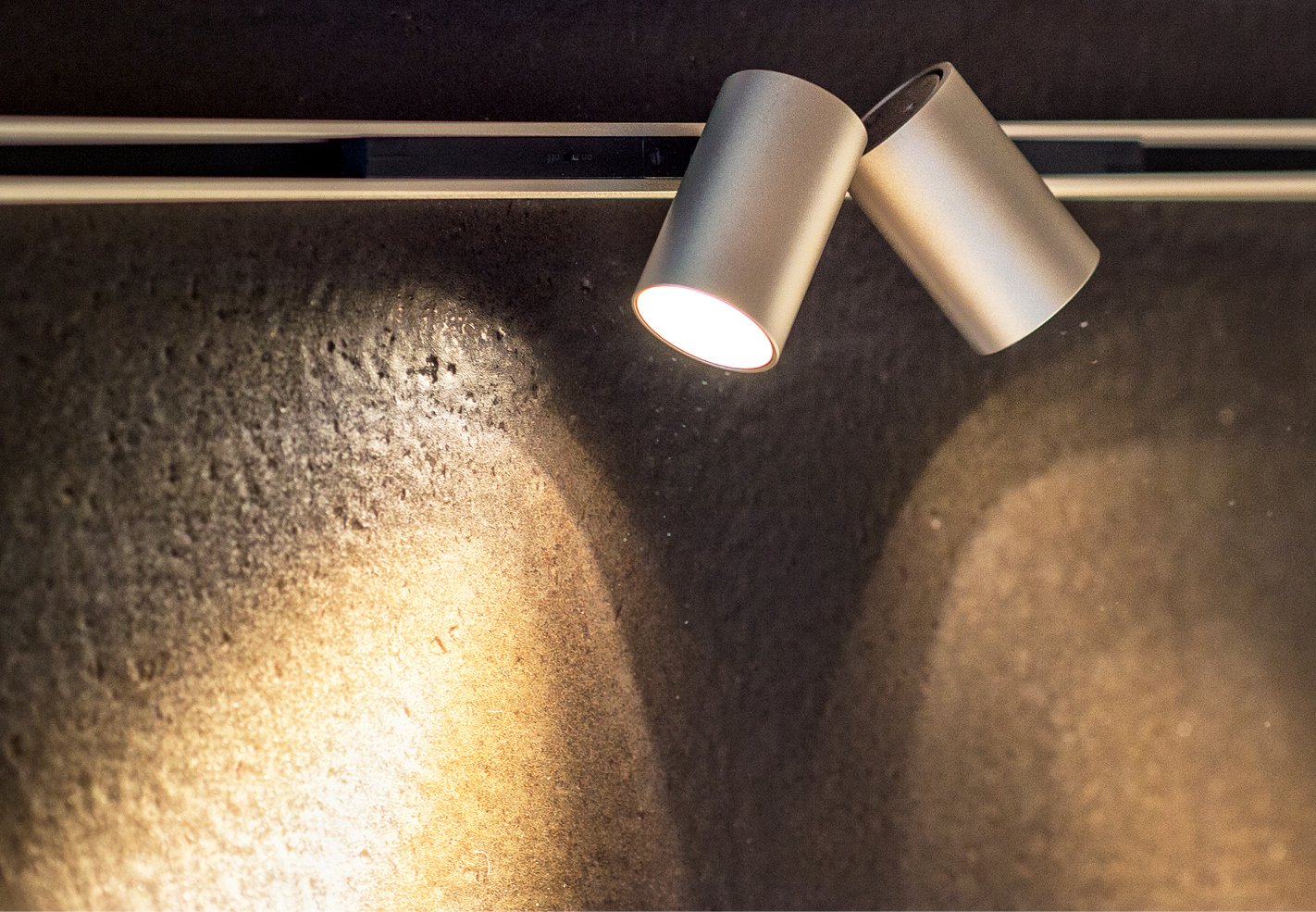

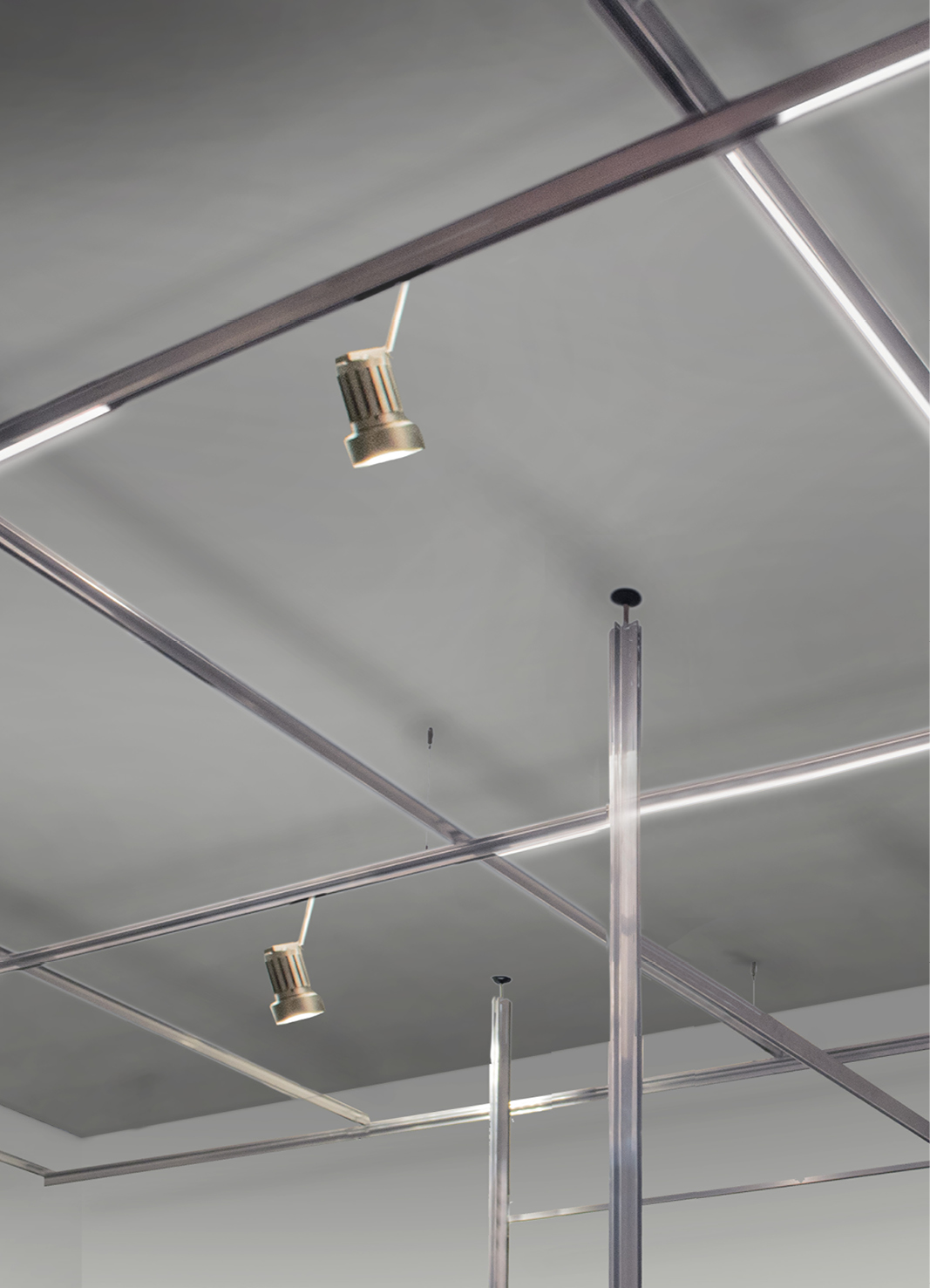

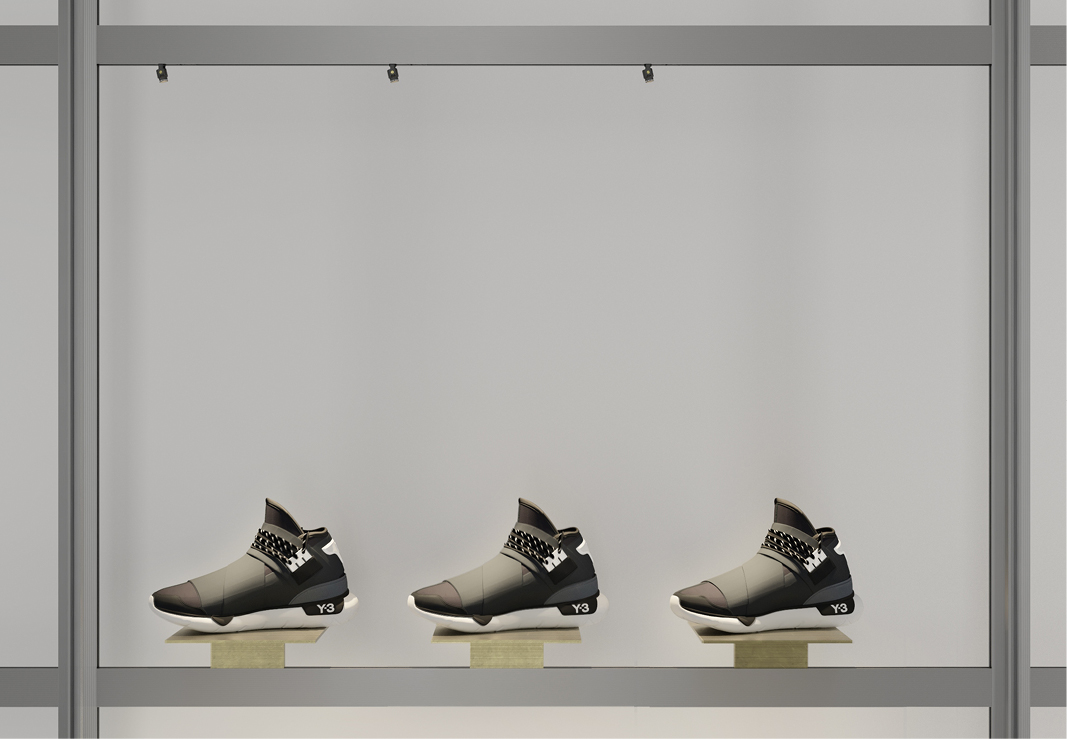

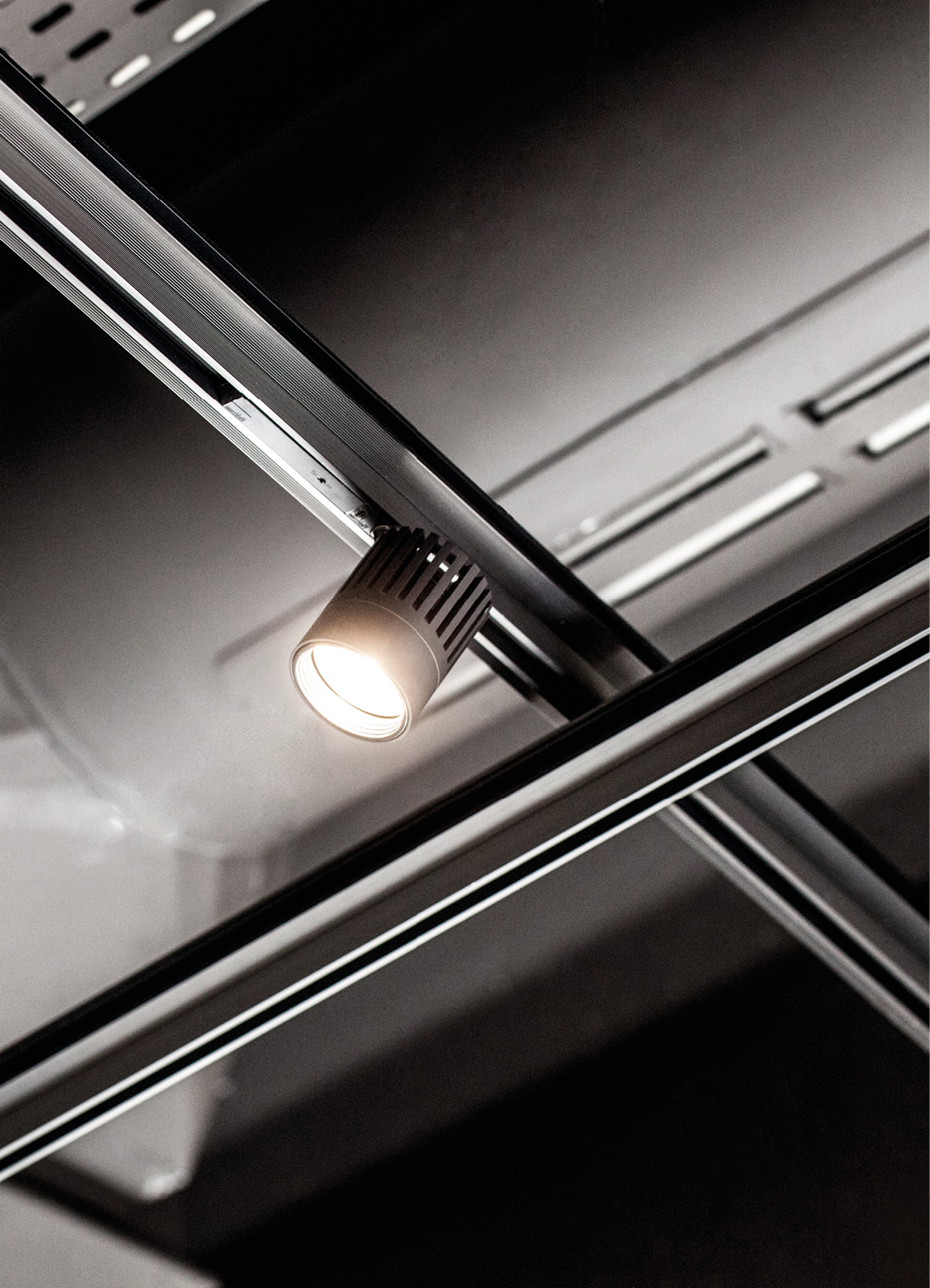

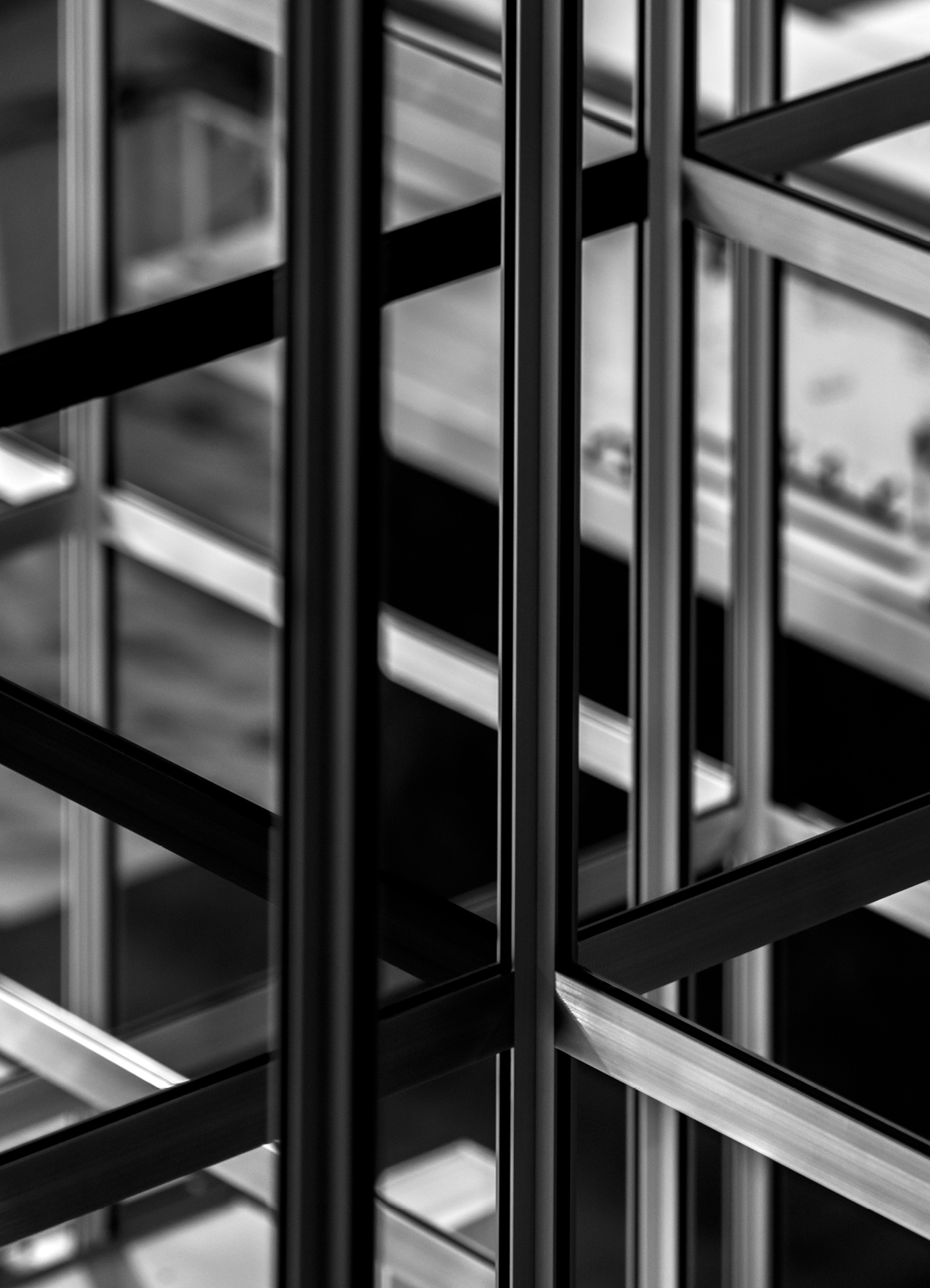

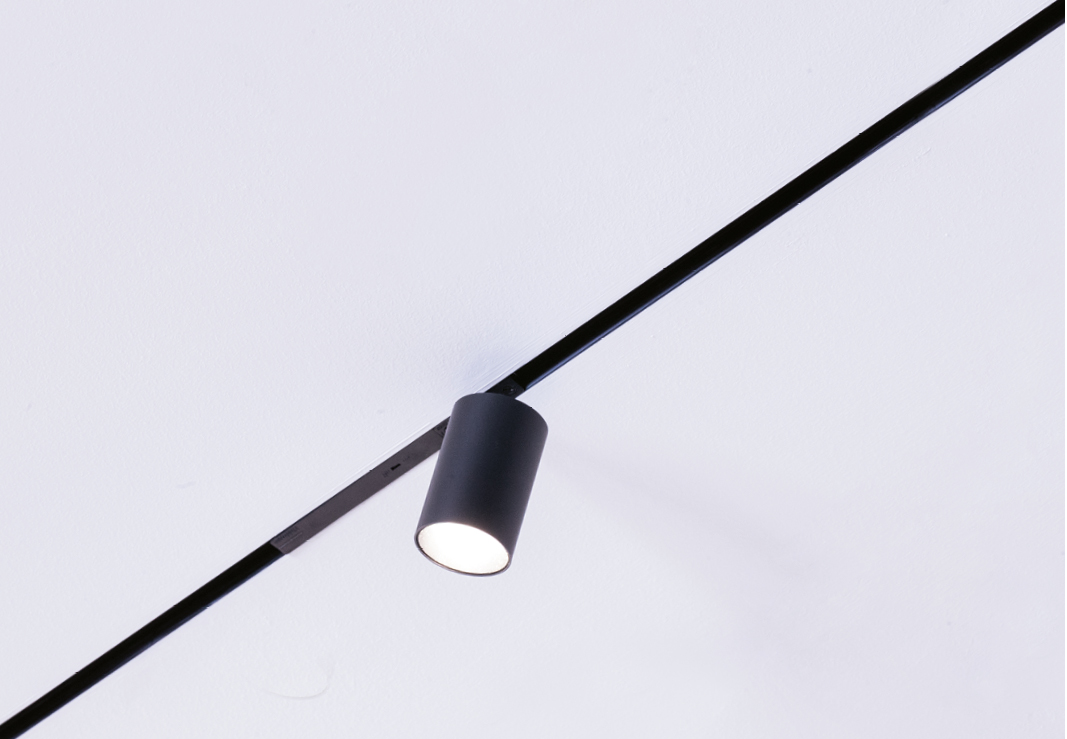

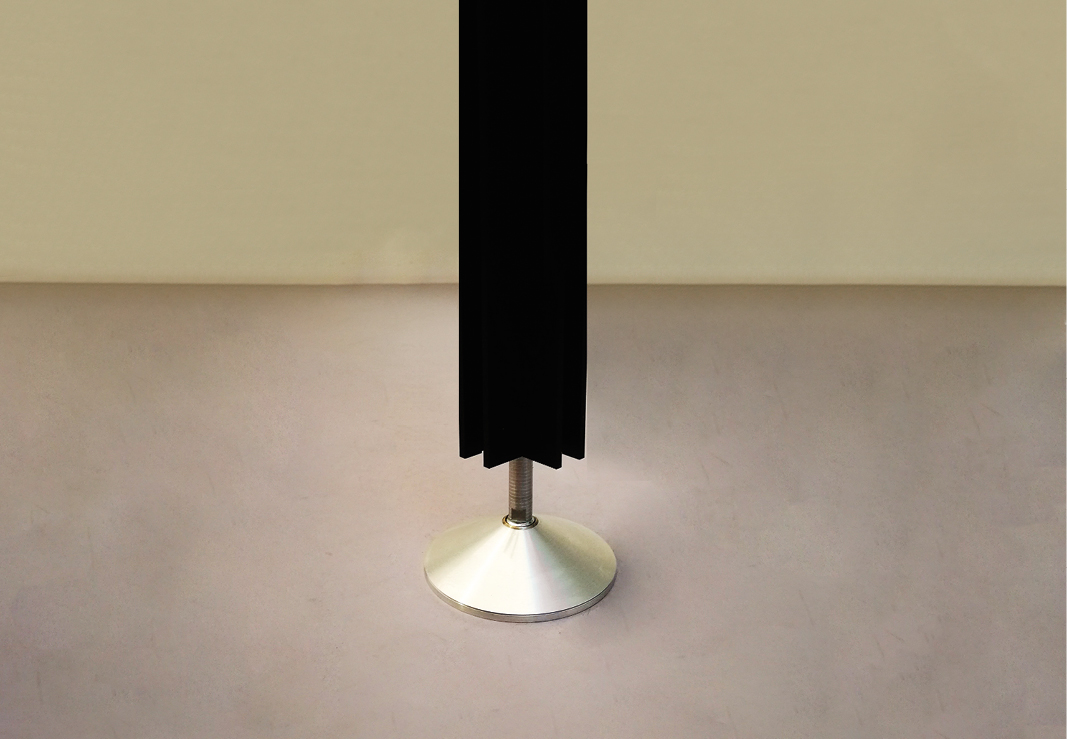

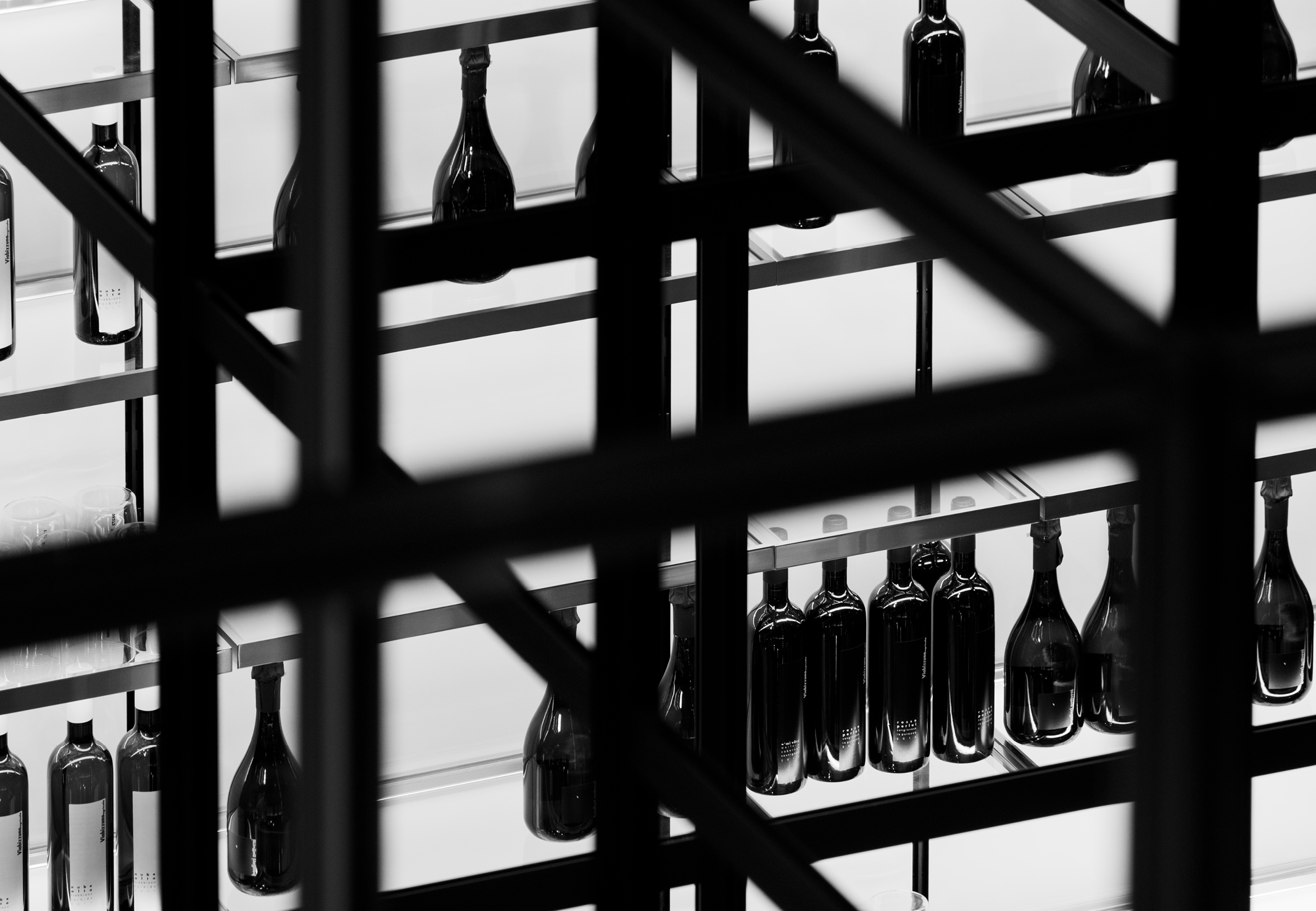

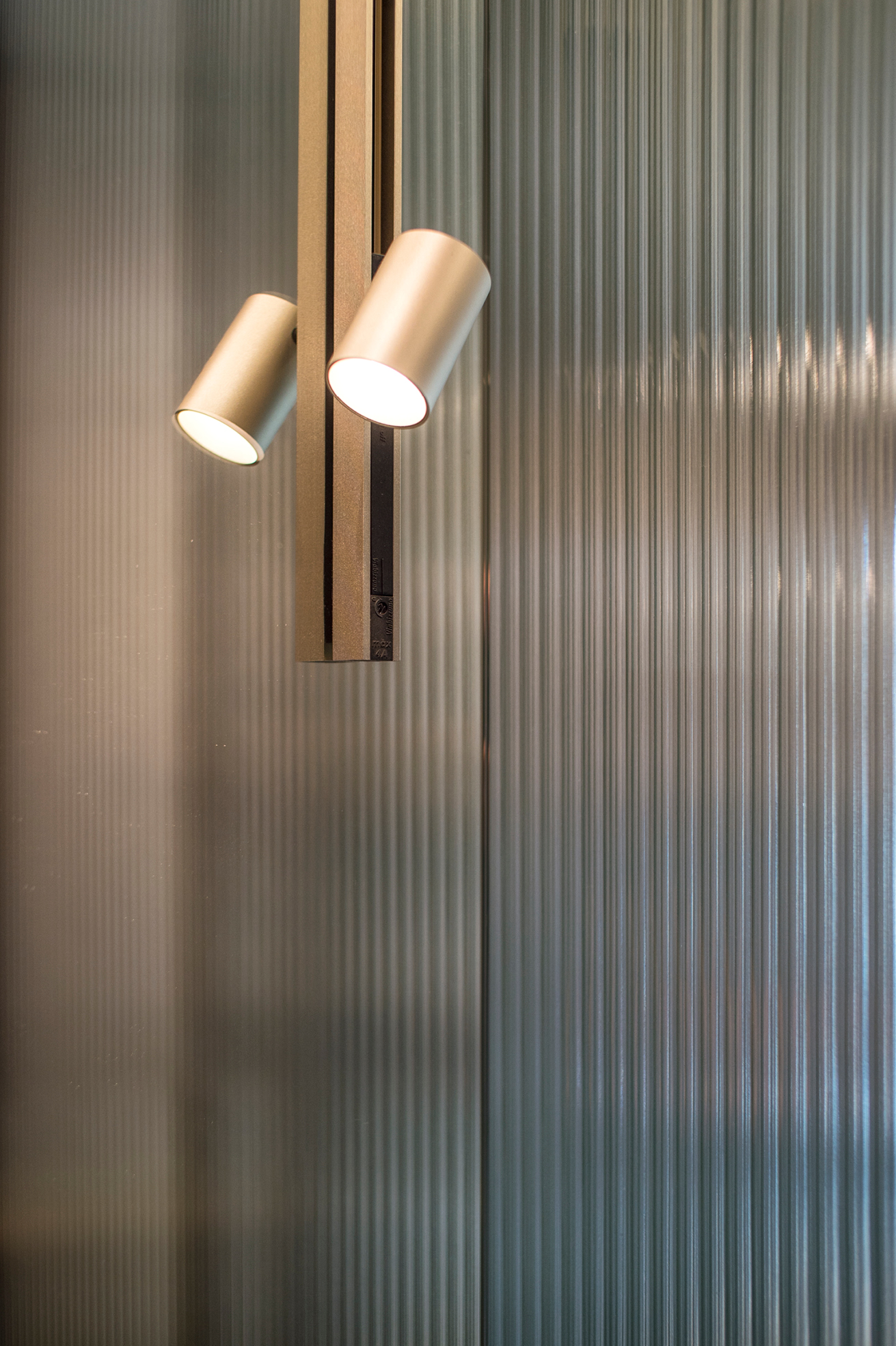

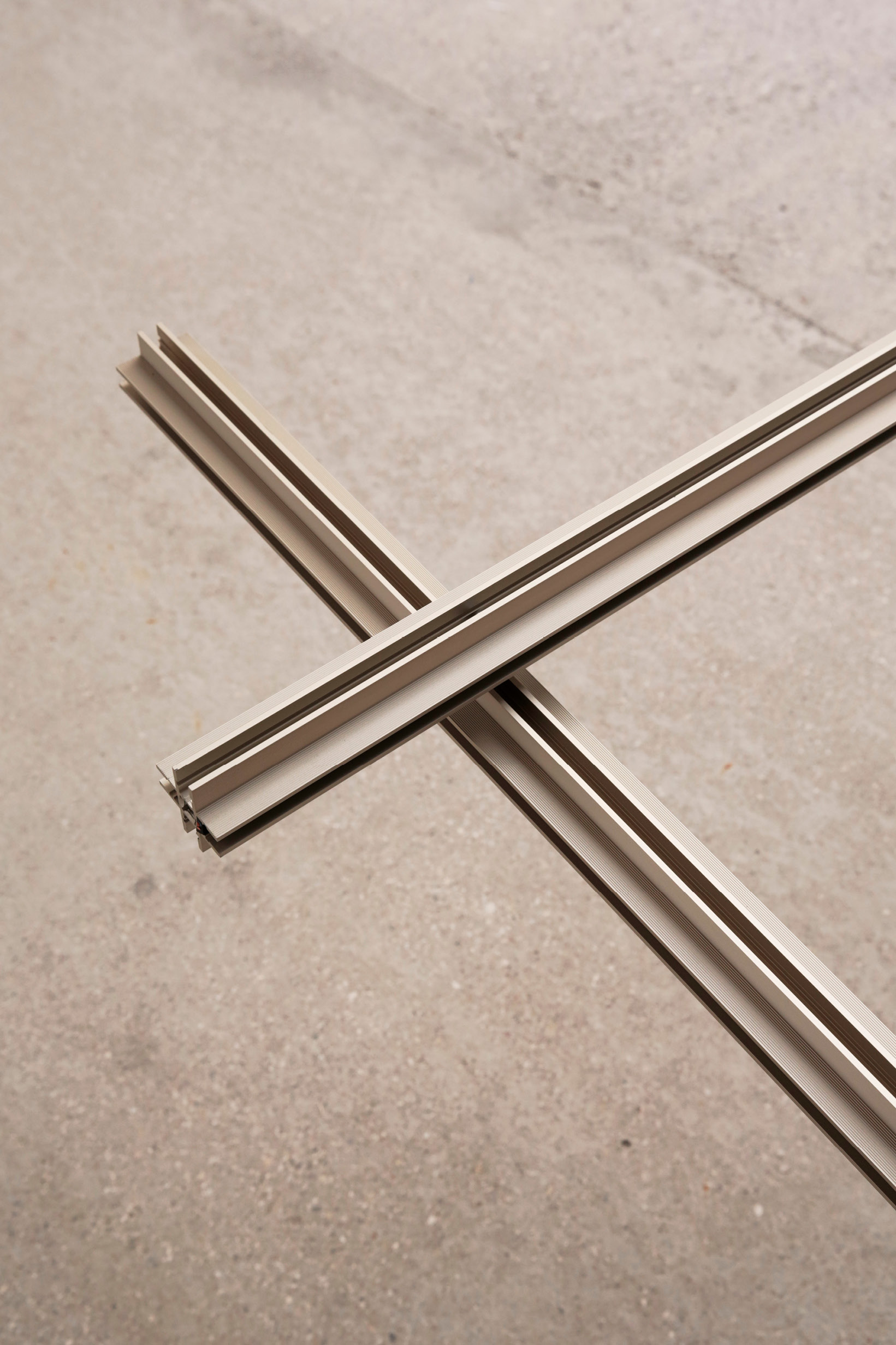

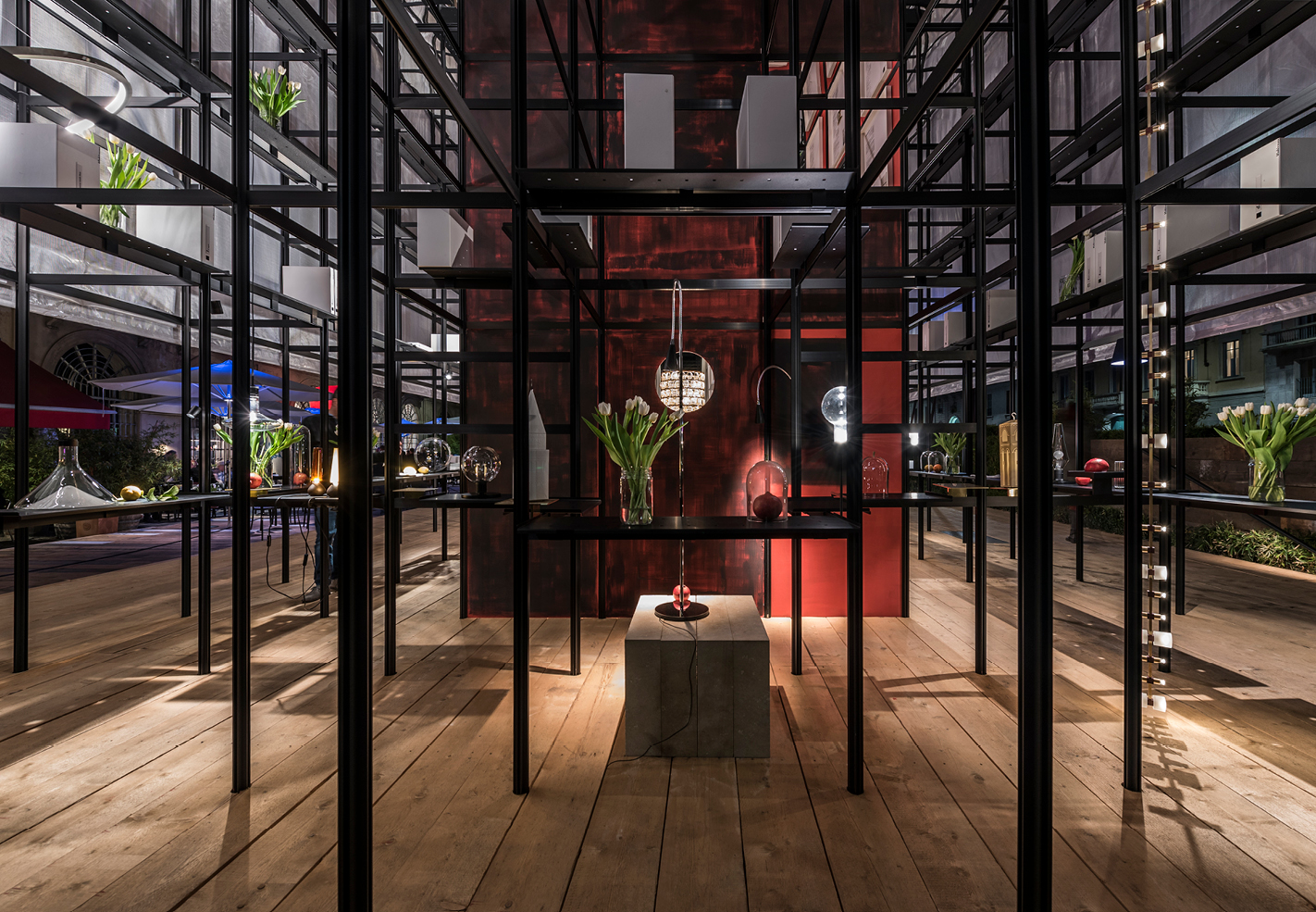

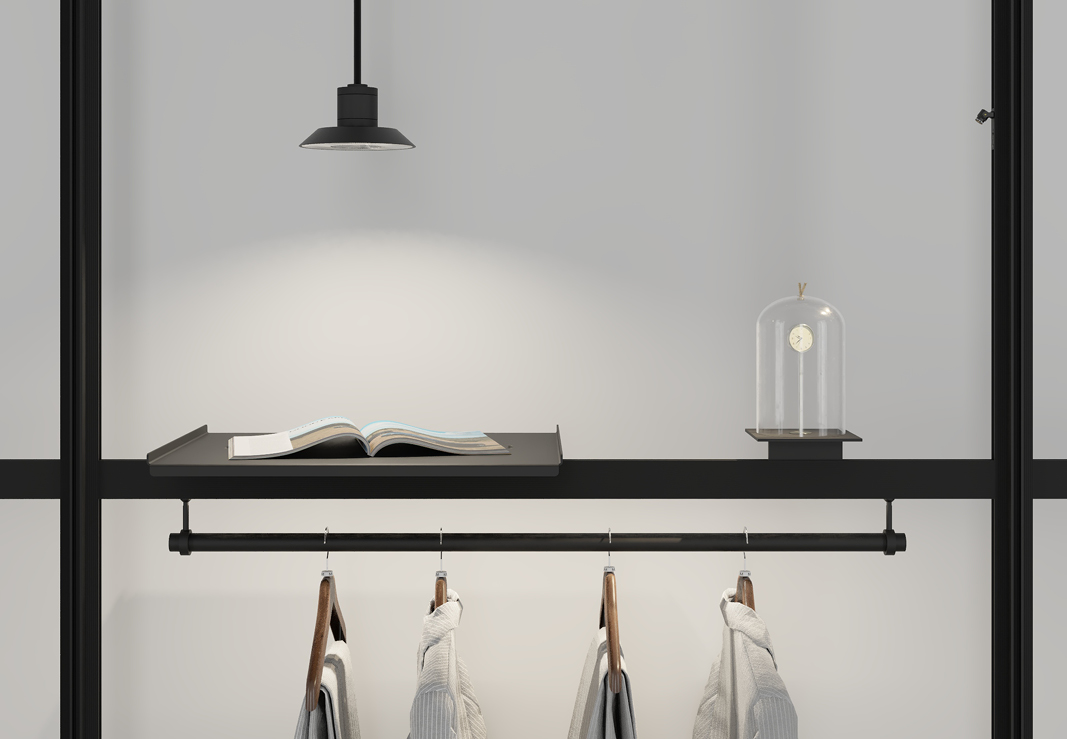

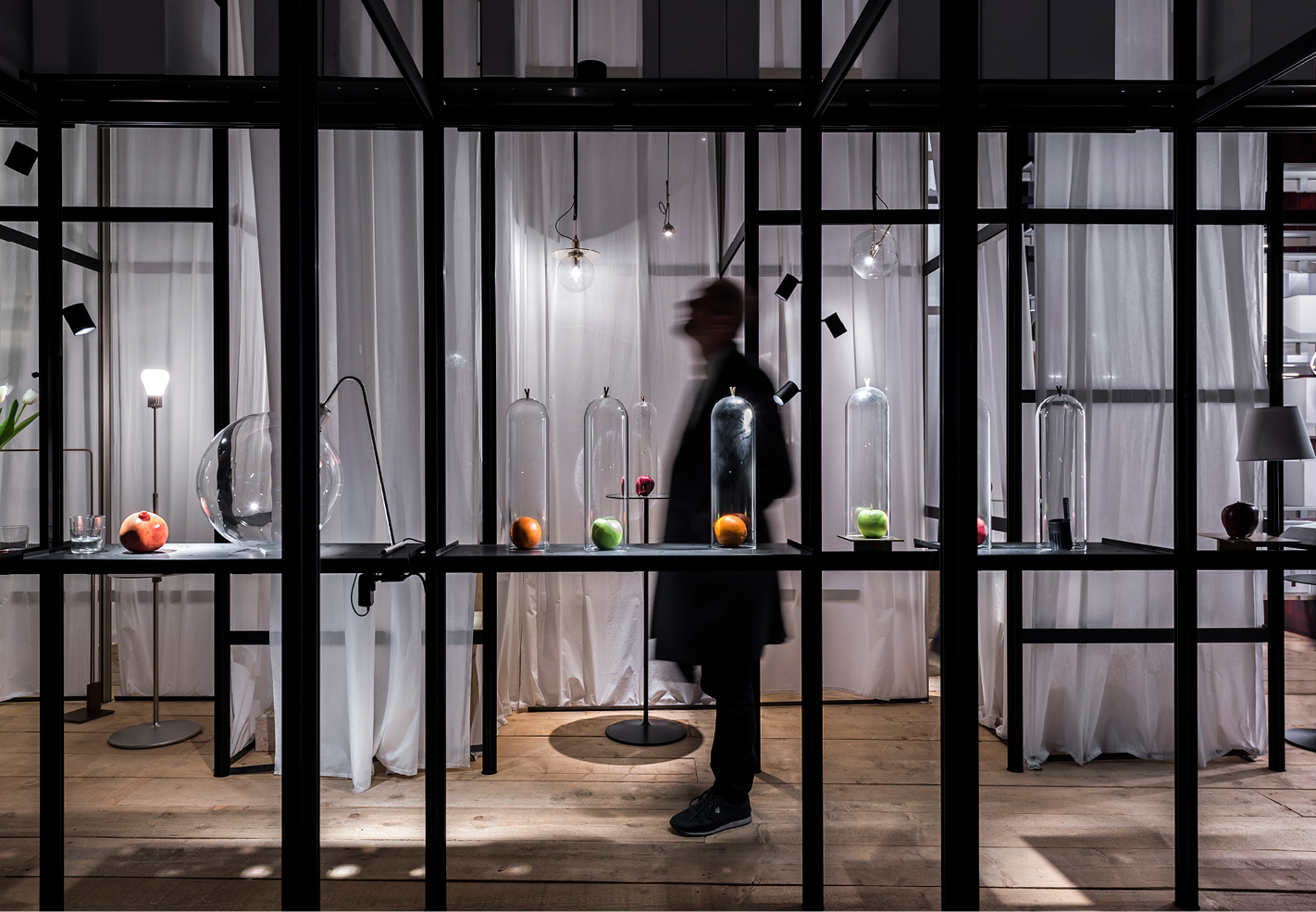

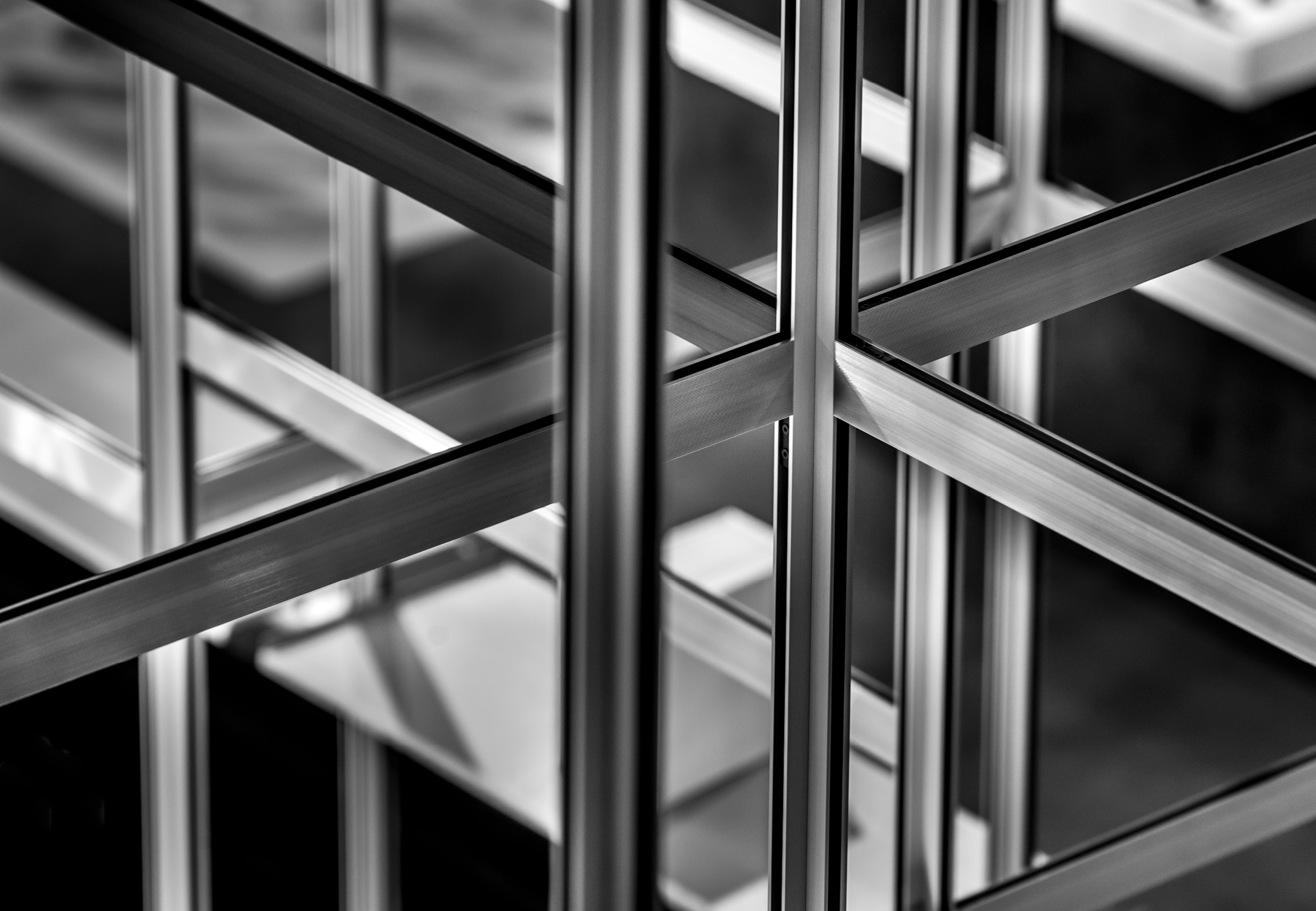

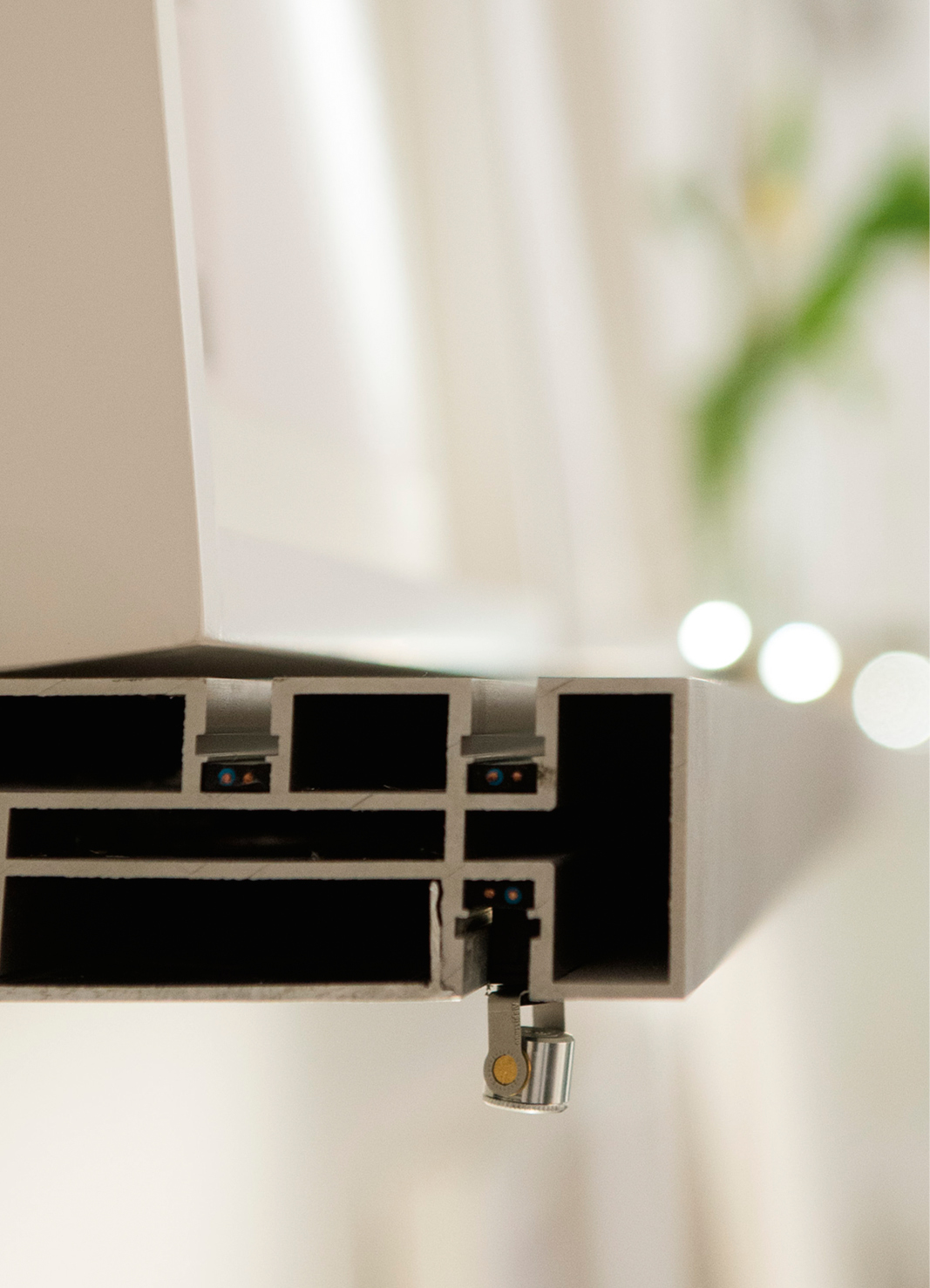

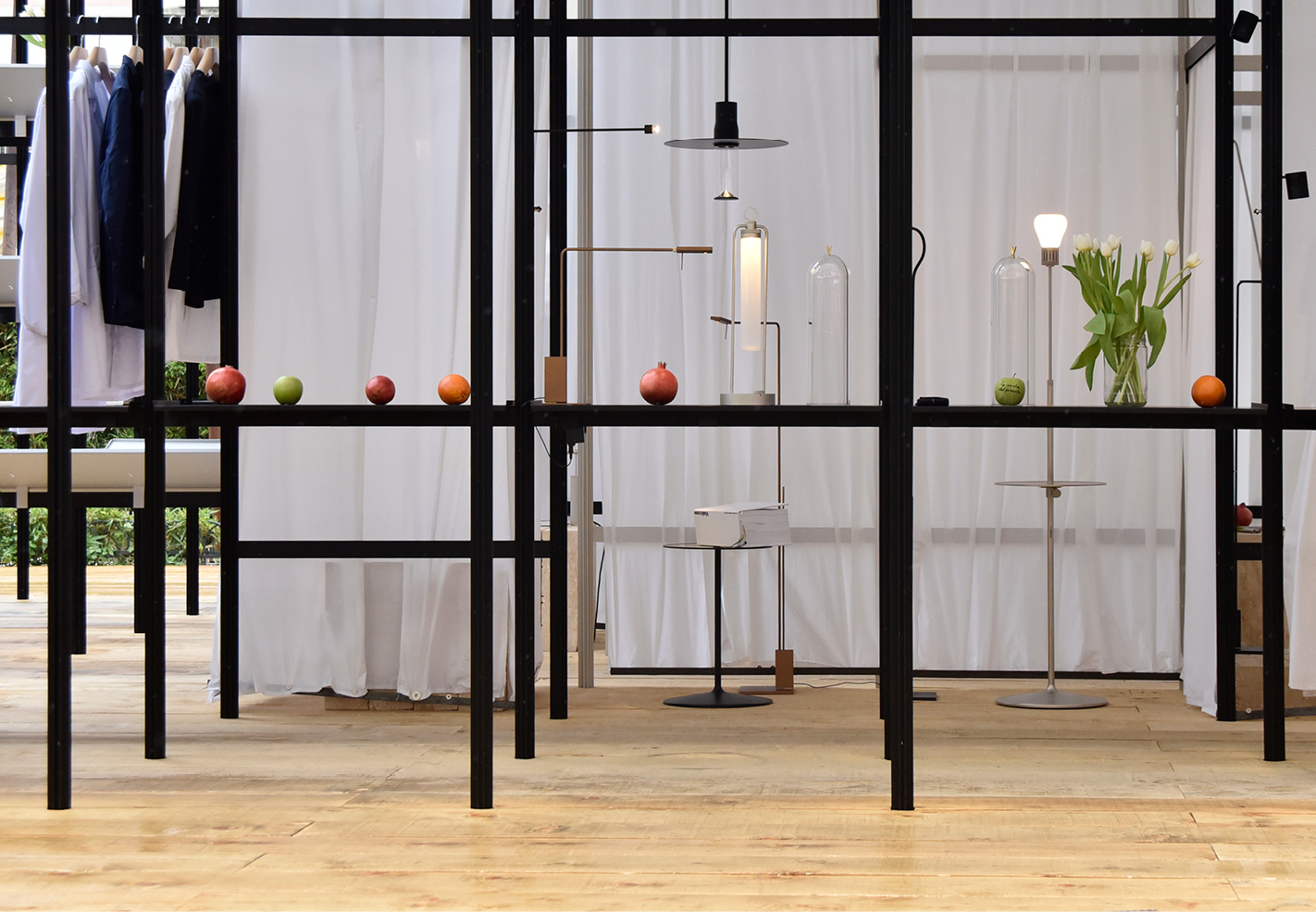

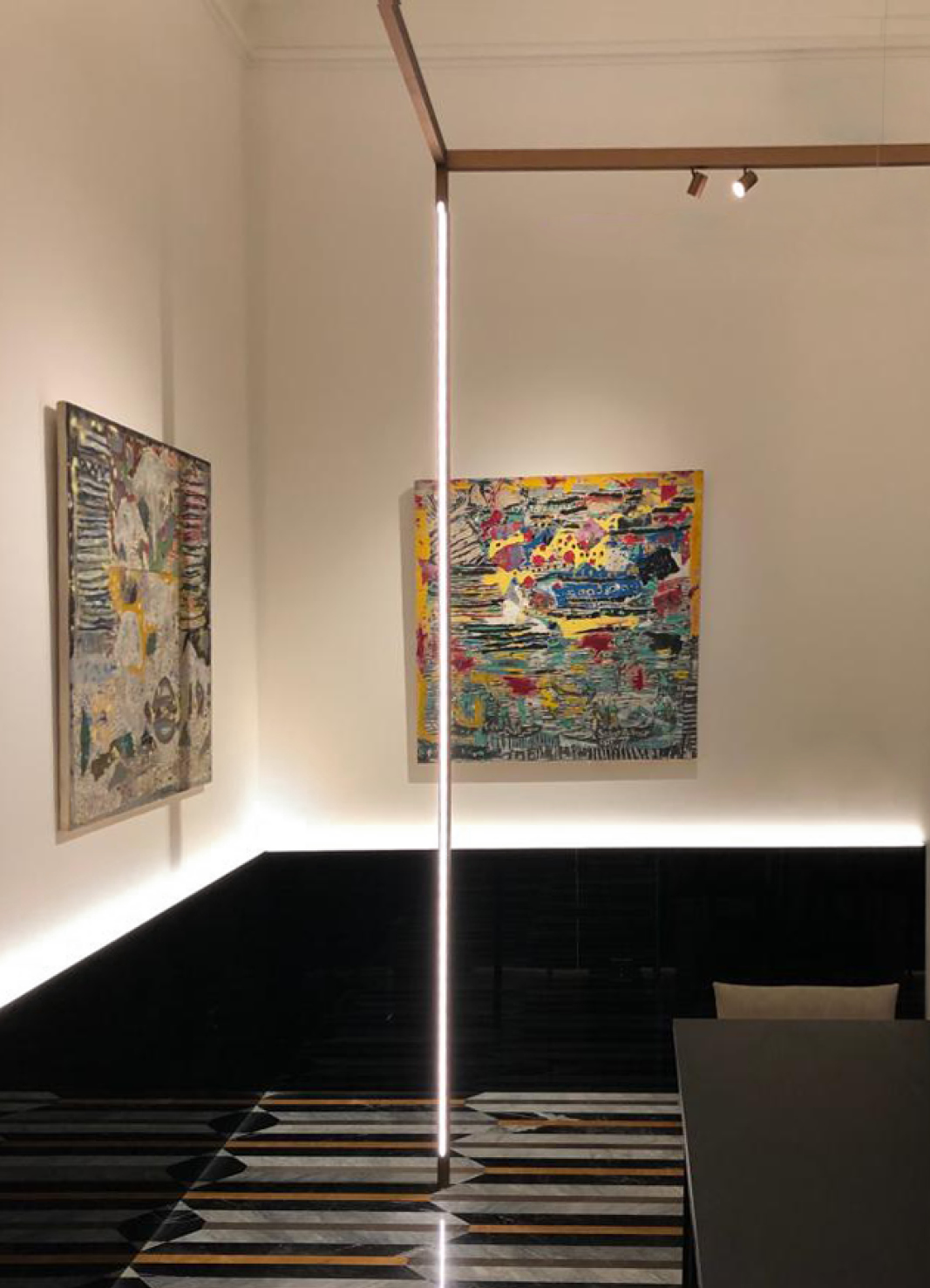

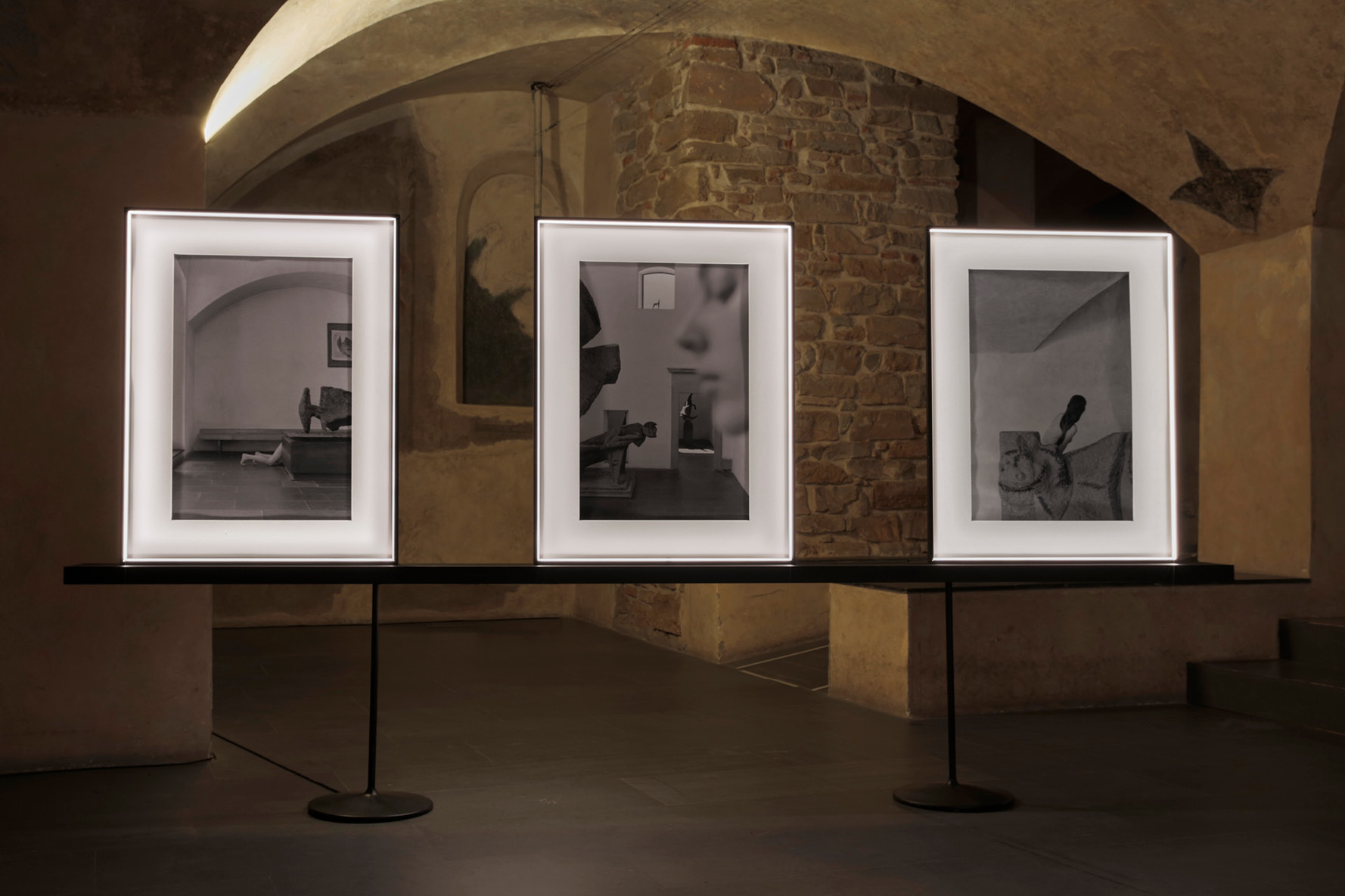

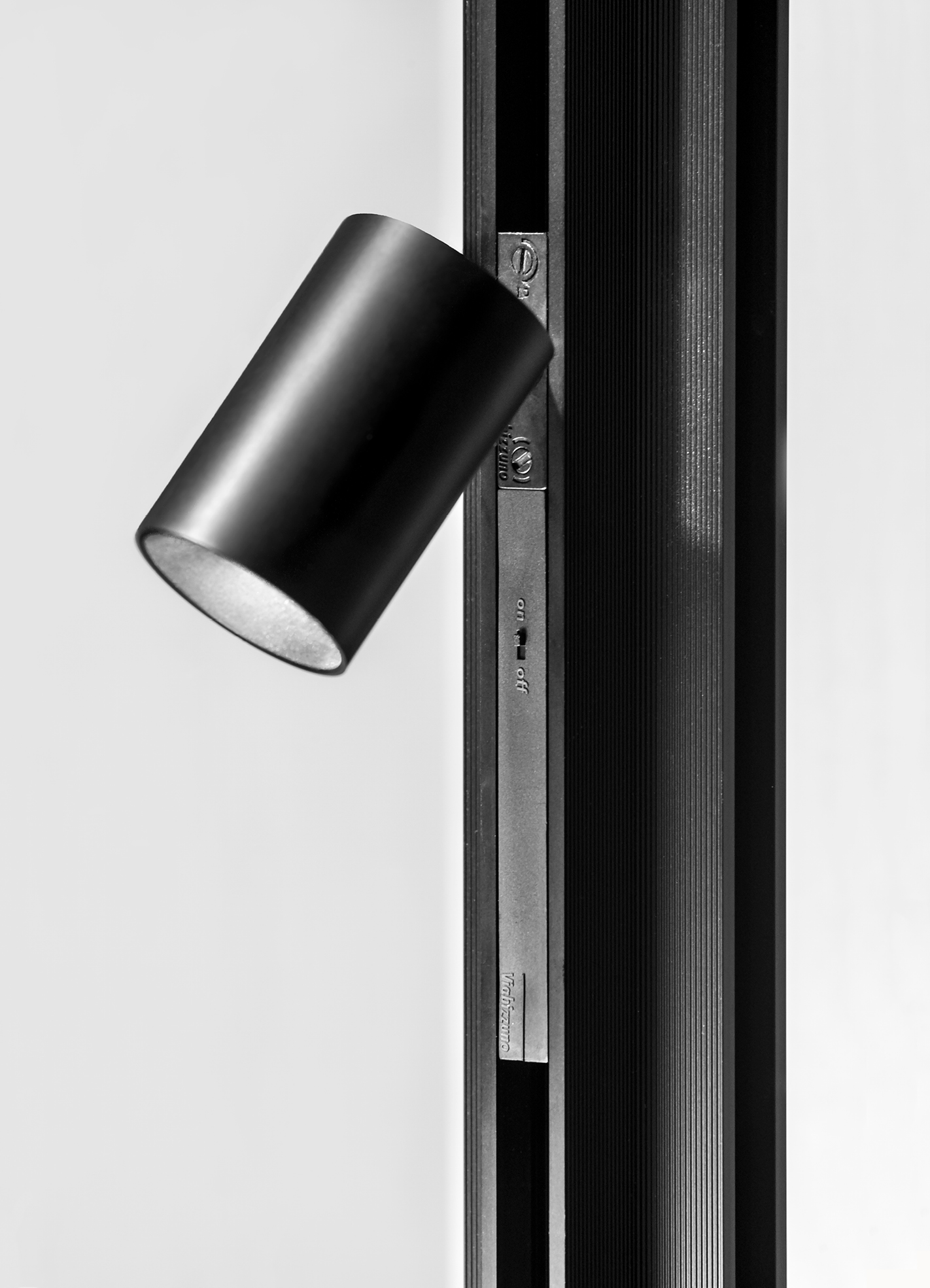

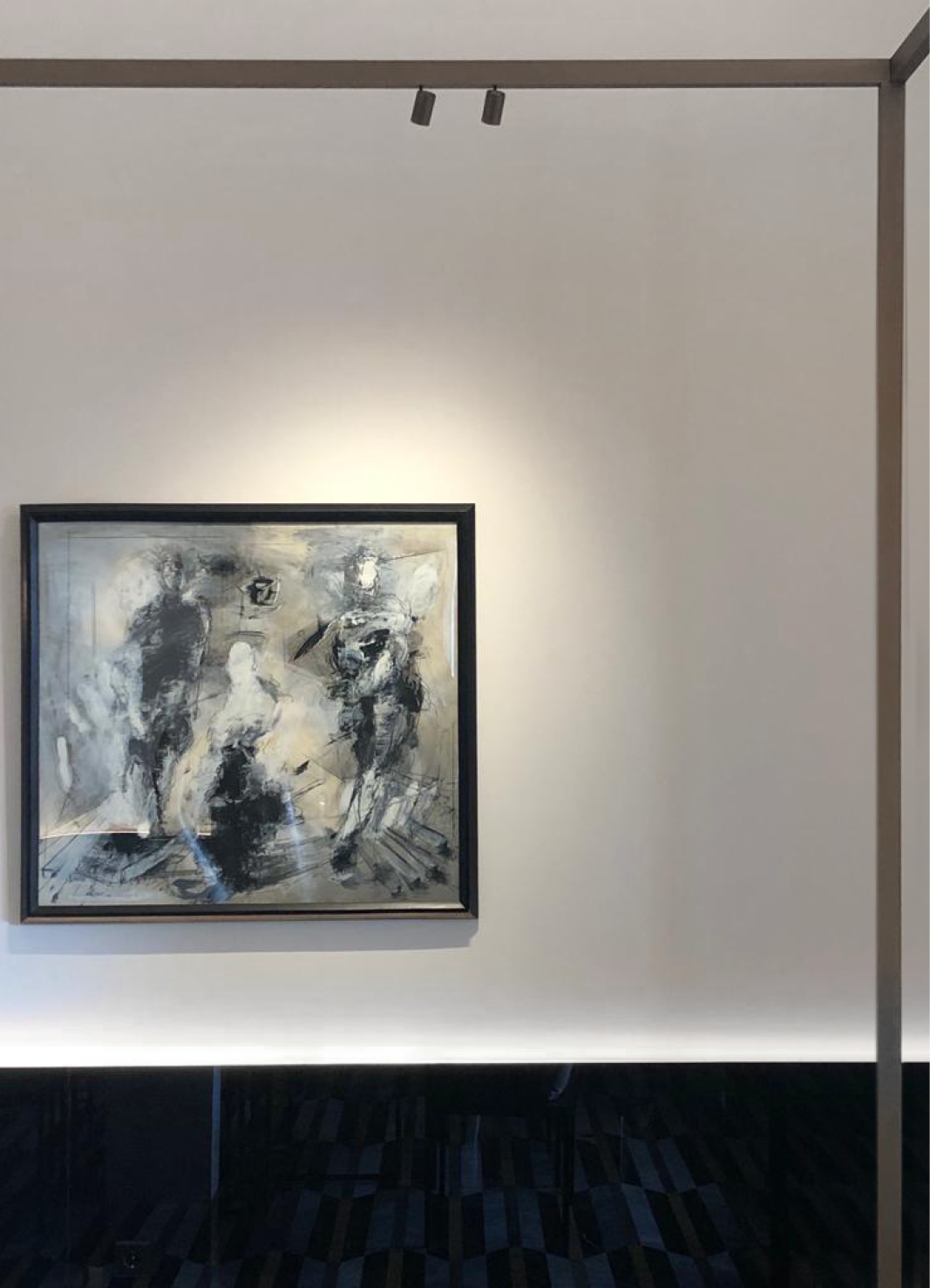

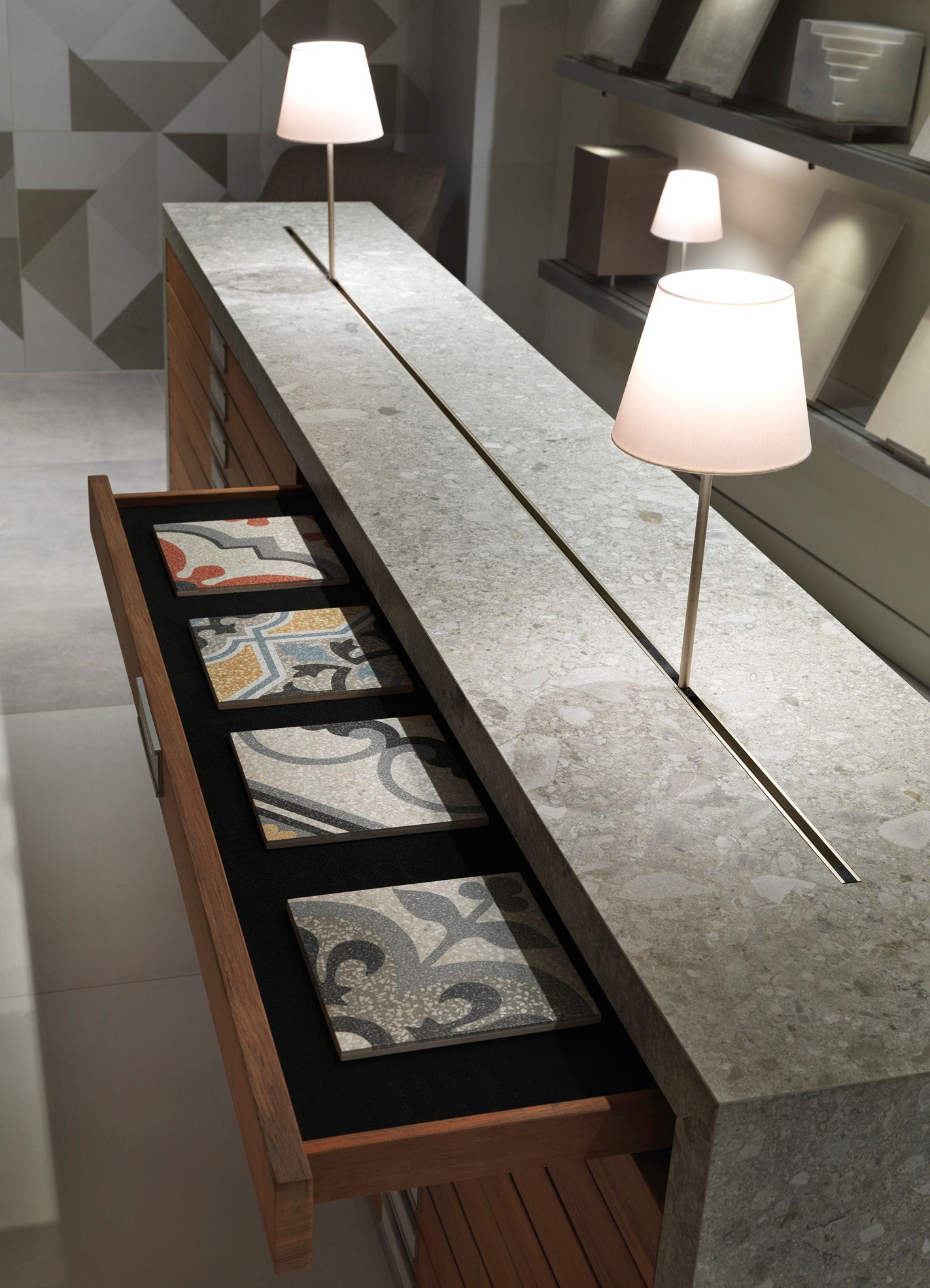

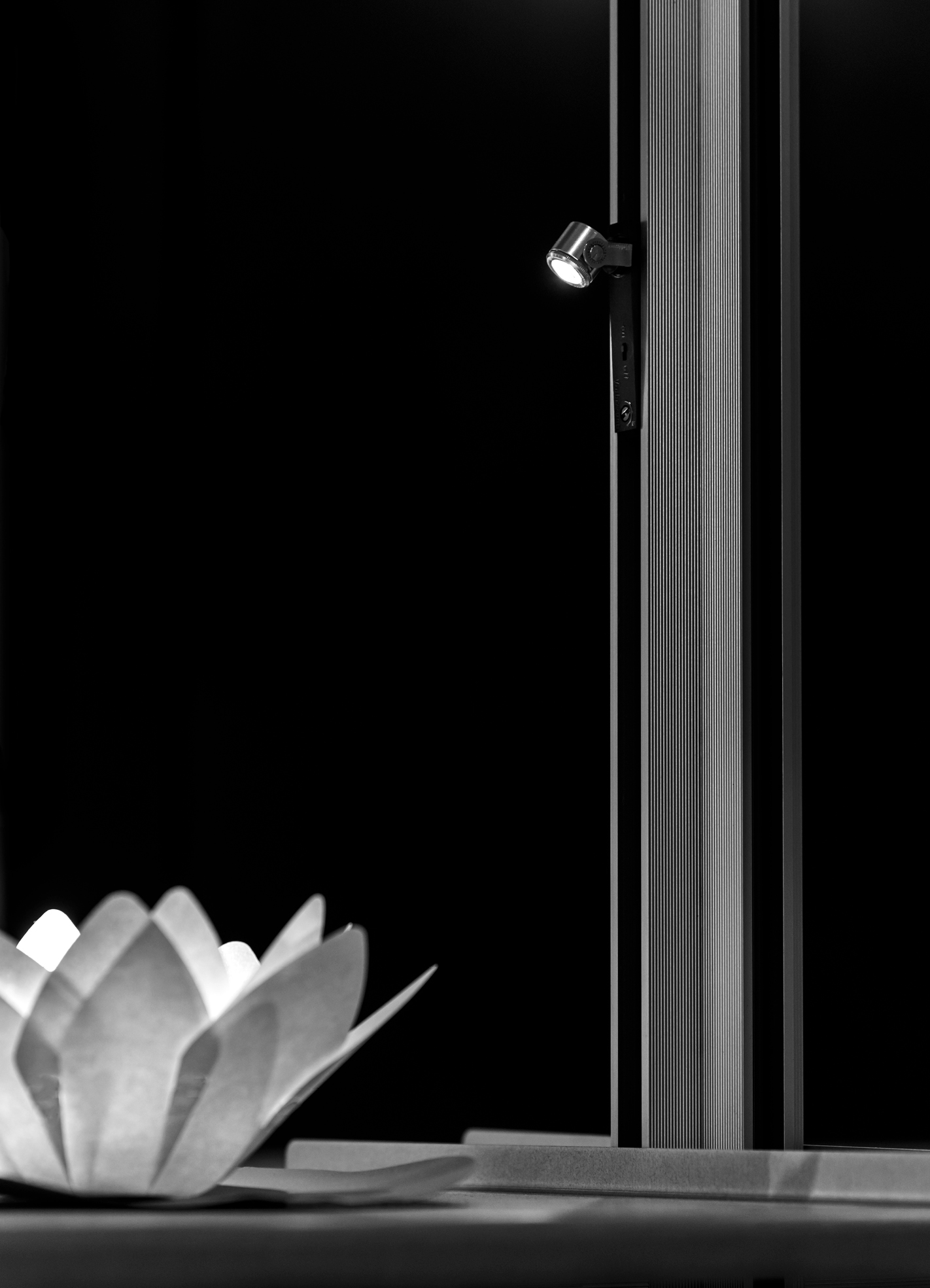

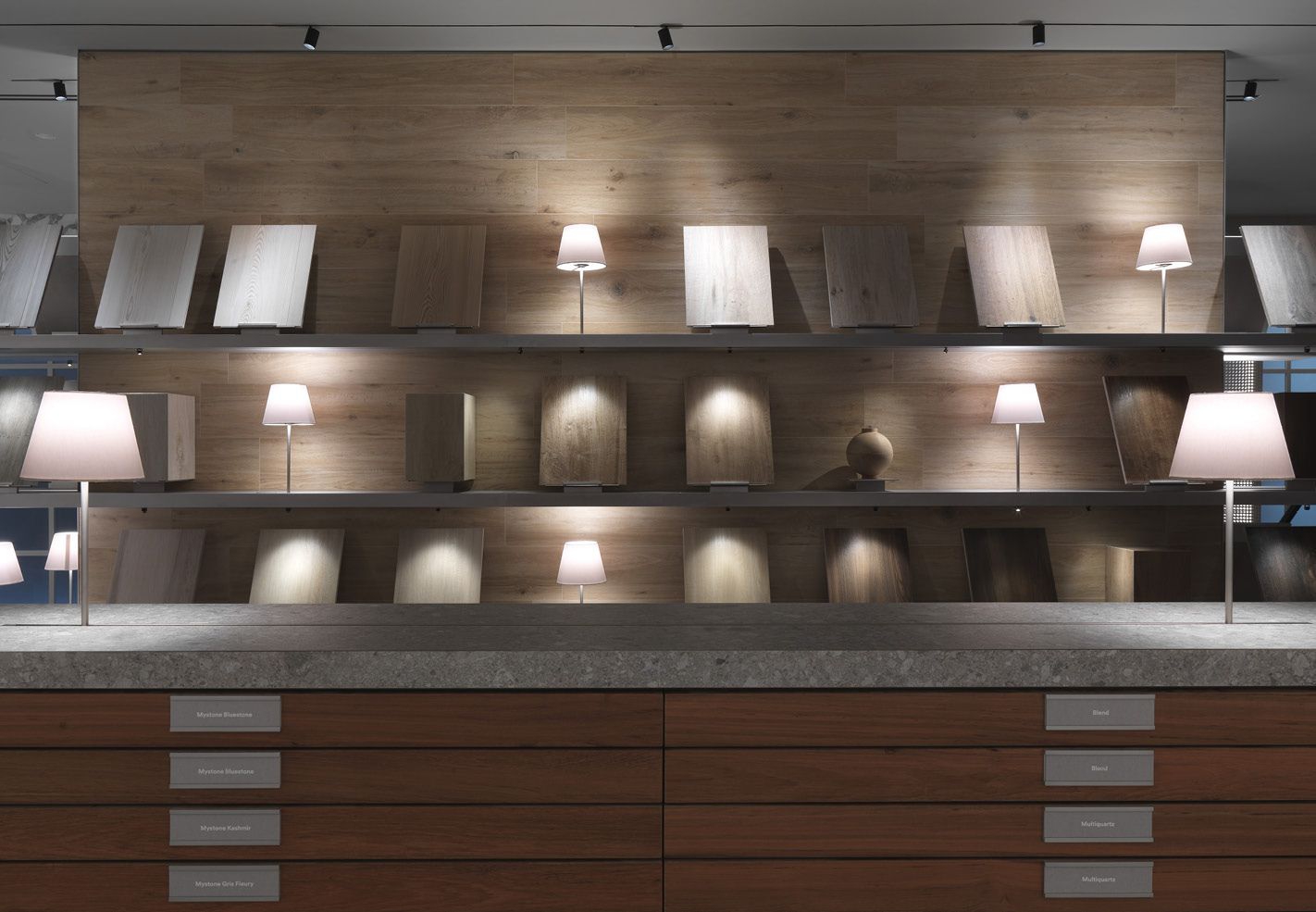

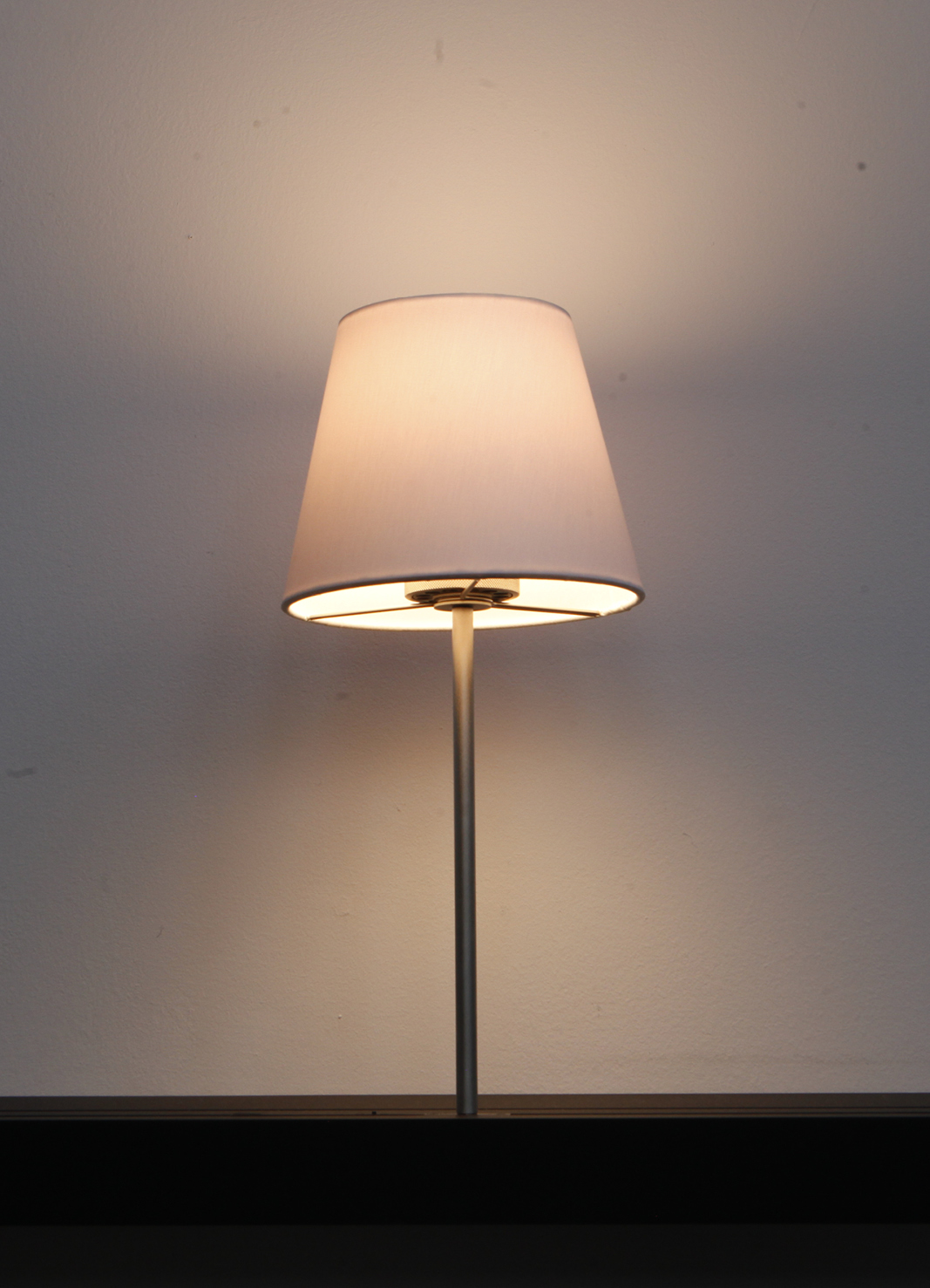

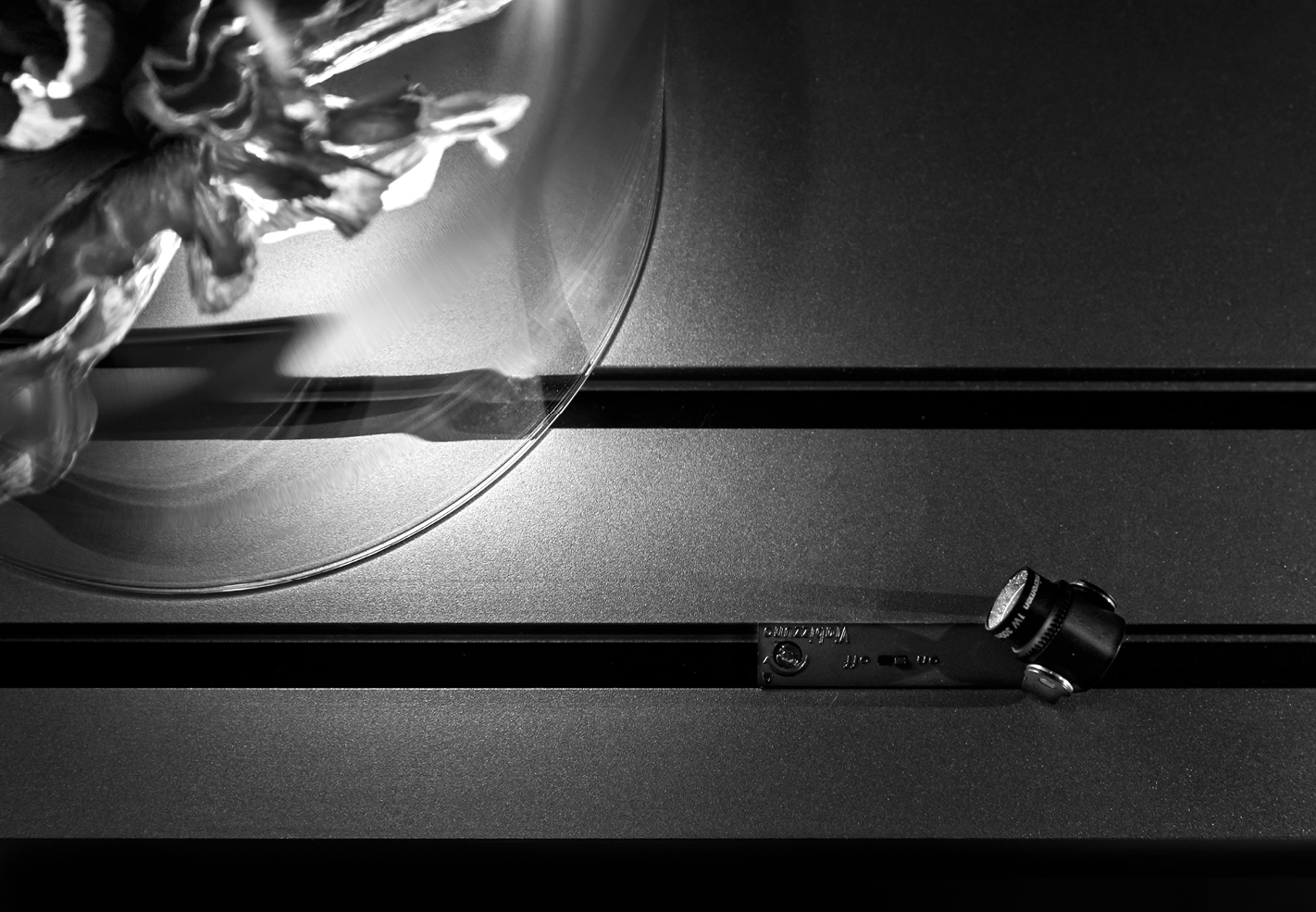

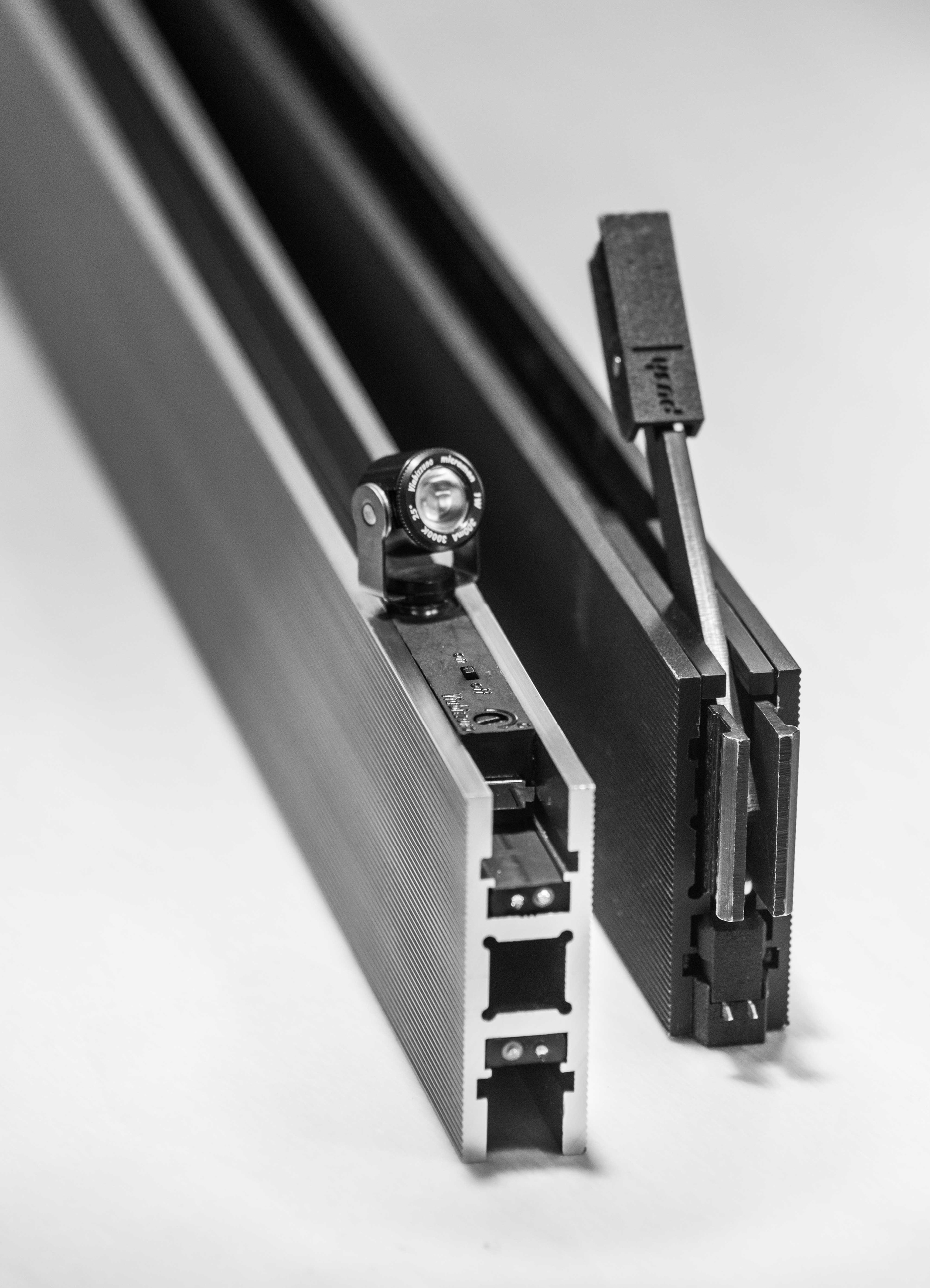

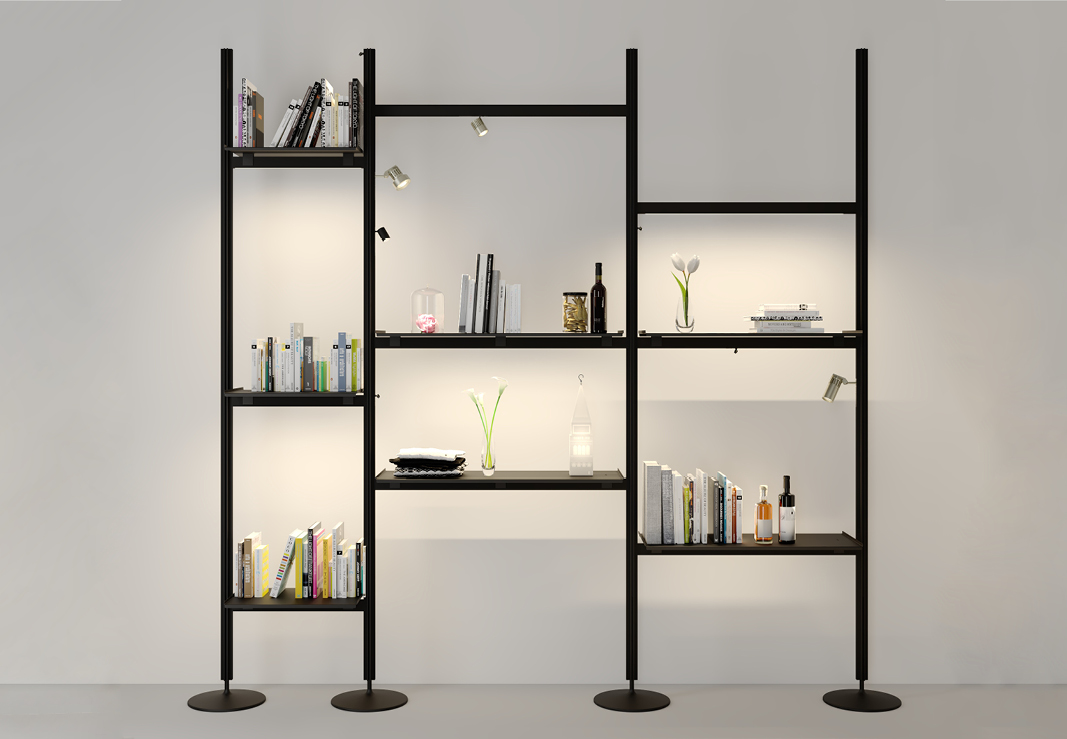

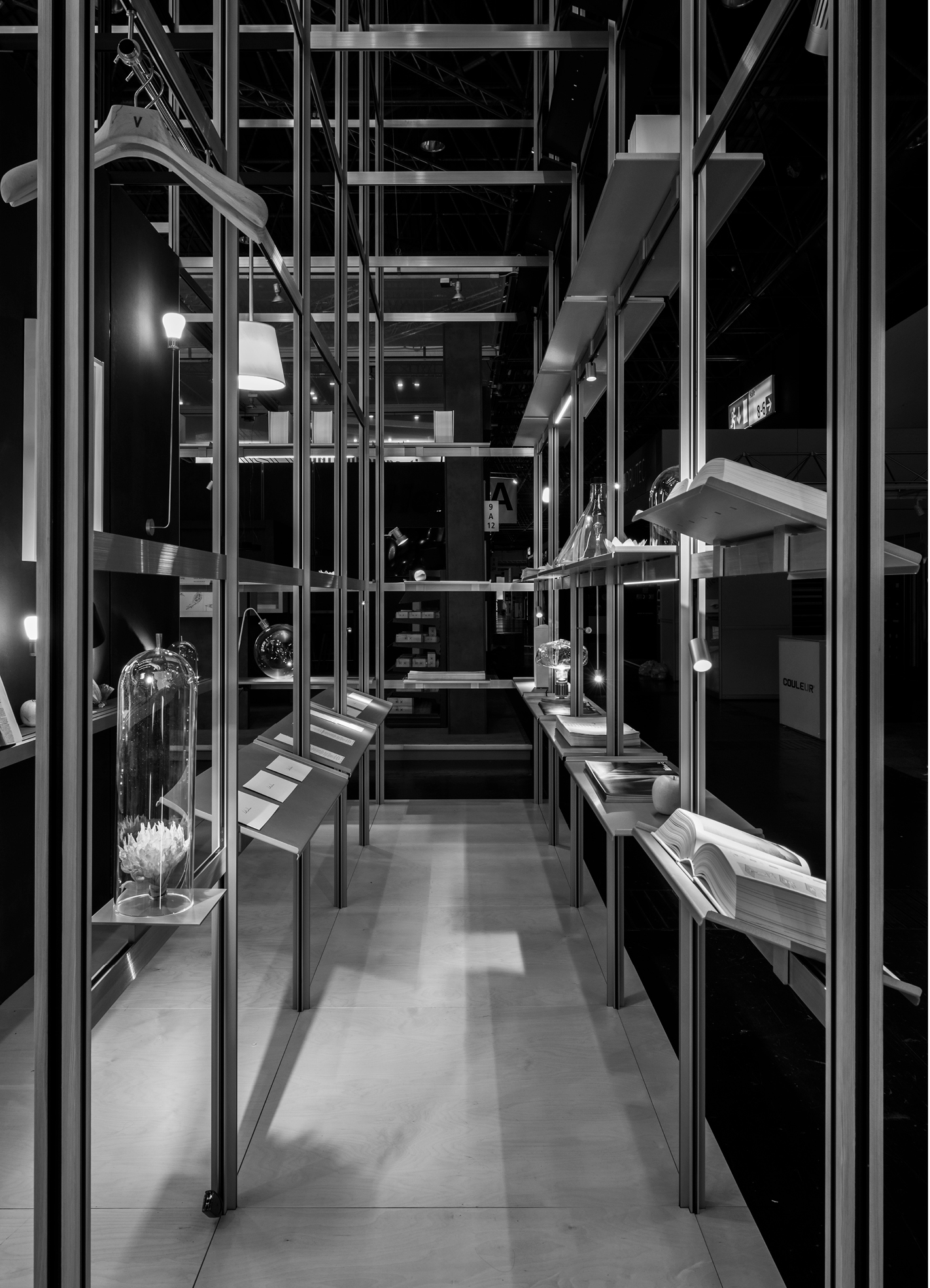

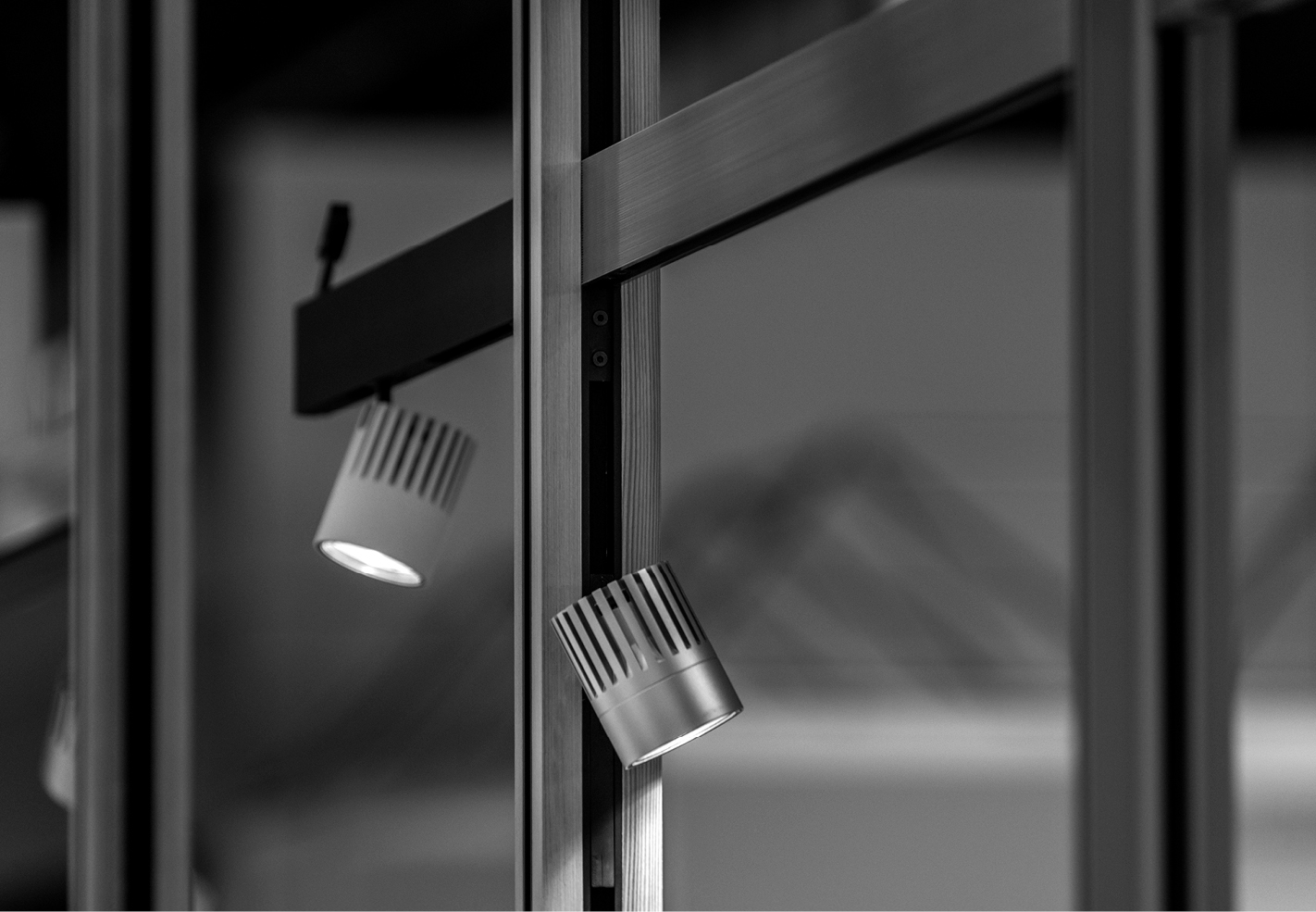

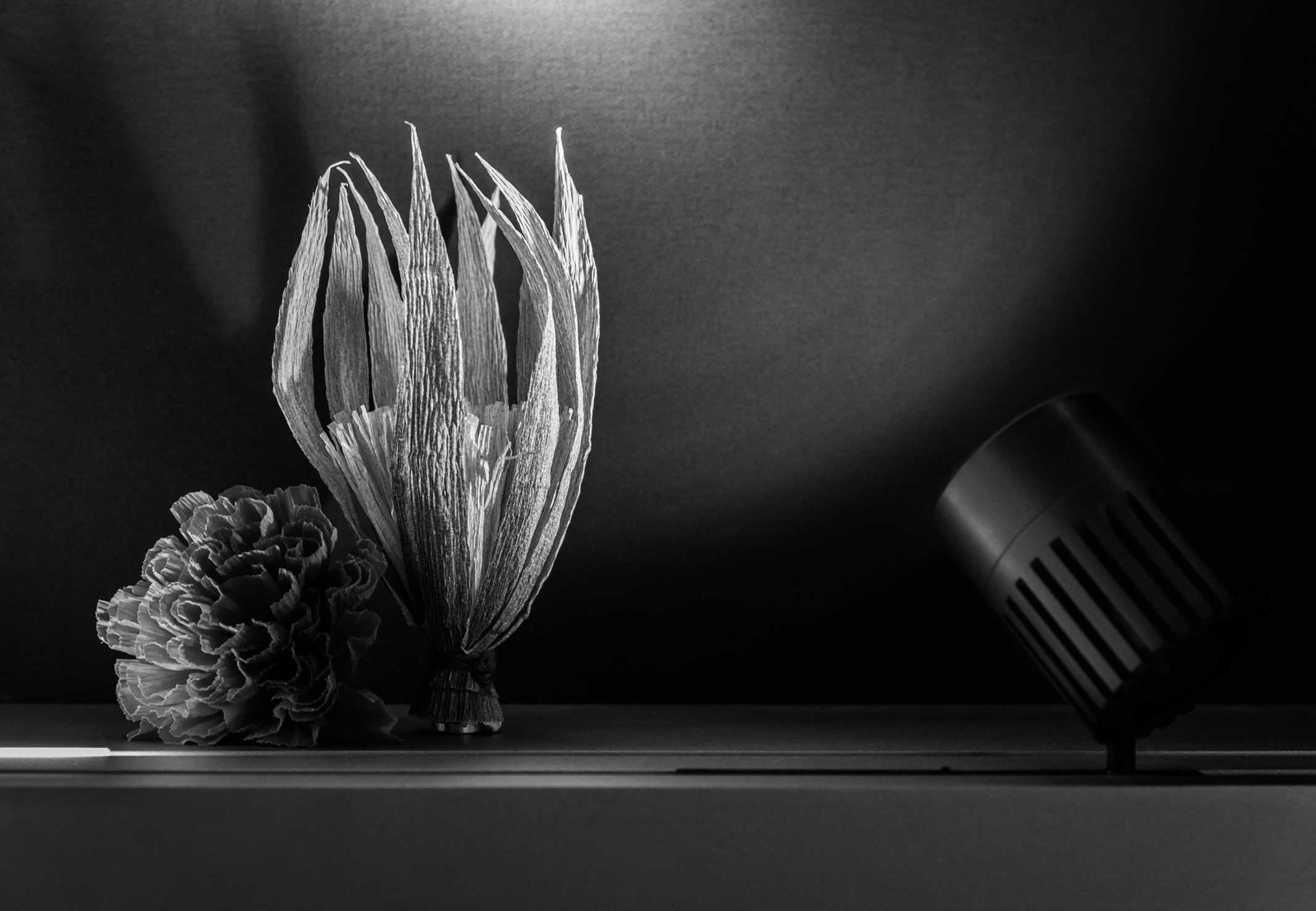

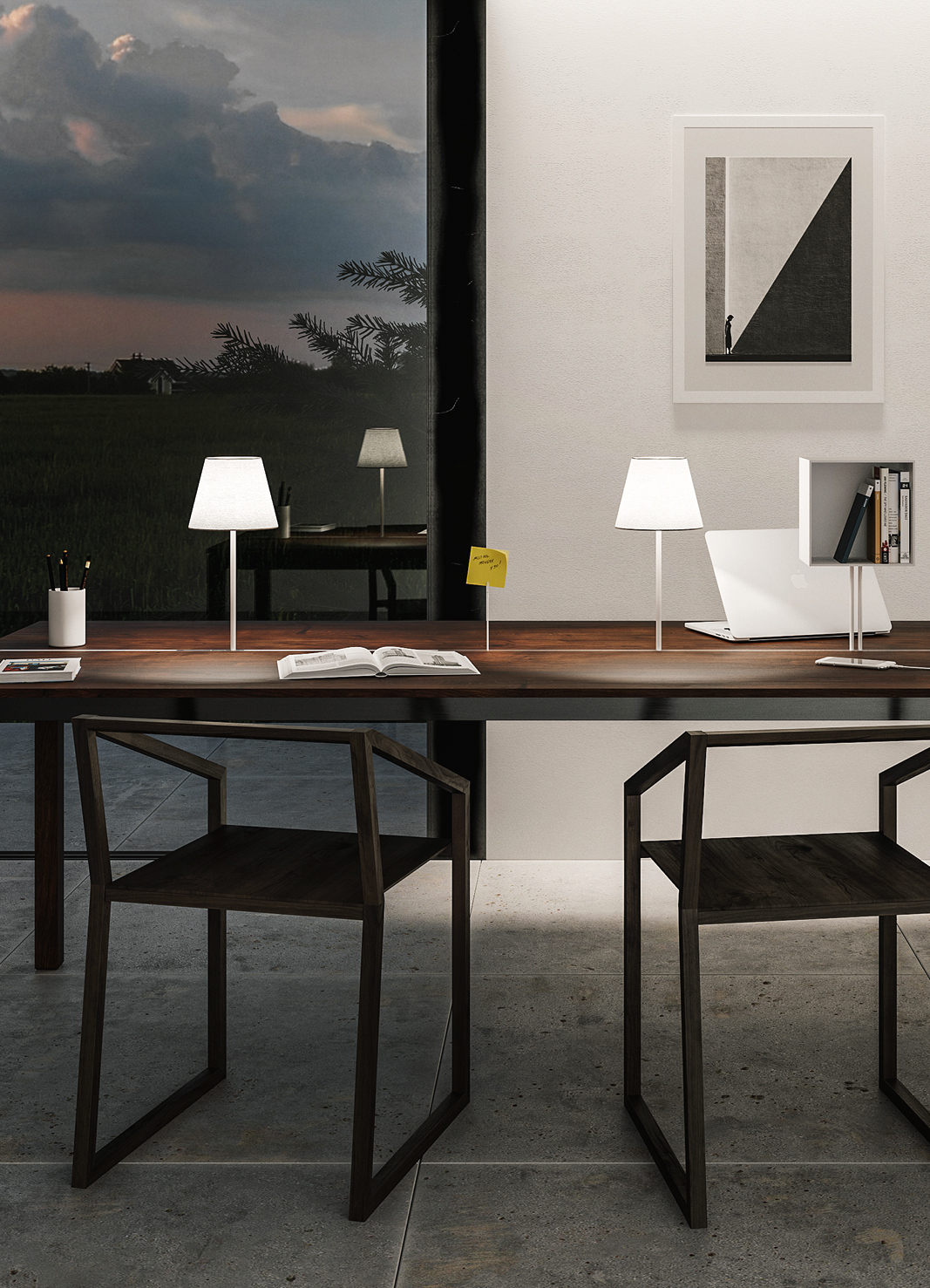

traccia sistema: IP20 rated system for indoor use made of extruded oxidized aluminum. versions: microtraccia, microtraccia scomparsa totale, tracciameno, tracciapiù, tracciatì tracciaelle tracciae, mensolonatraccia. the profiles, 2000mm or 3000mm lenght available, have 10mm wide grooves in which is possible to install a 24Vdc cable having a 10.6x4.2mm section with 2x1,5mm² conductors. with traccia sistema it can created electrified exhibition structures with vertical struts trackmost for ground-ceiling installation by fixing adjustable and adjustable lower and upper feet or ground-wall using a base of 350mm that does not require floor tiles and wall-fixing bracket. tracciapiù can be coated in any kind of material (wood, recycled plastic, aluminum, …). the electrified quick joint allows you to customize your structure according to your needs easily, quickly and without the use of tools. sistema traccia is compatible with Viabizzuno led sources pwm dimmable: micromen, trentotto, ecomini; n55 orientabile and n55 sospensione, n55 with tige h.350mm configurable with silk lampshade, n22, 13x8 linear light, n22 with tige, n22 sospensione, peled sospensione, coppibartali 1 module. accessories: horizontal and inclinate shelves, hangers and acoustic insulating panels, expositive shelves, catchalls, glass bells. finishes: argento hacca, nero55. customize your light visit www.Viabizzuno.com mensolonatraccia: IP20 rated system for indoor use made of 200x48mm extruded oxidized or sanded aluminum 2000mm or 3000mm lenght. versions: mensolonatraccia 01 with lateral fixing, mensolonatraccia 02 with rear fixing. four 10mm wide grooves in which is install 24Vdc cables having a 10.6x4.2mm section with 2x1,5mm² conductors, with end-feed and terminal heads. mensolona traccia is compatible with Viabizzuno led sources pwm dimmable: n22, ecomini and trentotto; micromen, n55 orientabile and n55 sospensione configurable with classic diffuser, decorative diffuser and technical diffuser, n55 with tige h.350mm configurable with silk lampshade, 13x8 linear light. accessories: end closing caps, expositive shelves, catchalls, glass bells. finishes: nero55 or sanded natural aluminium, treated with paraffin oil, any eventual alteration is due to the natural oxidation in contact with the air. customize your light visit www.Viabizzuno.com
