90x45
2011

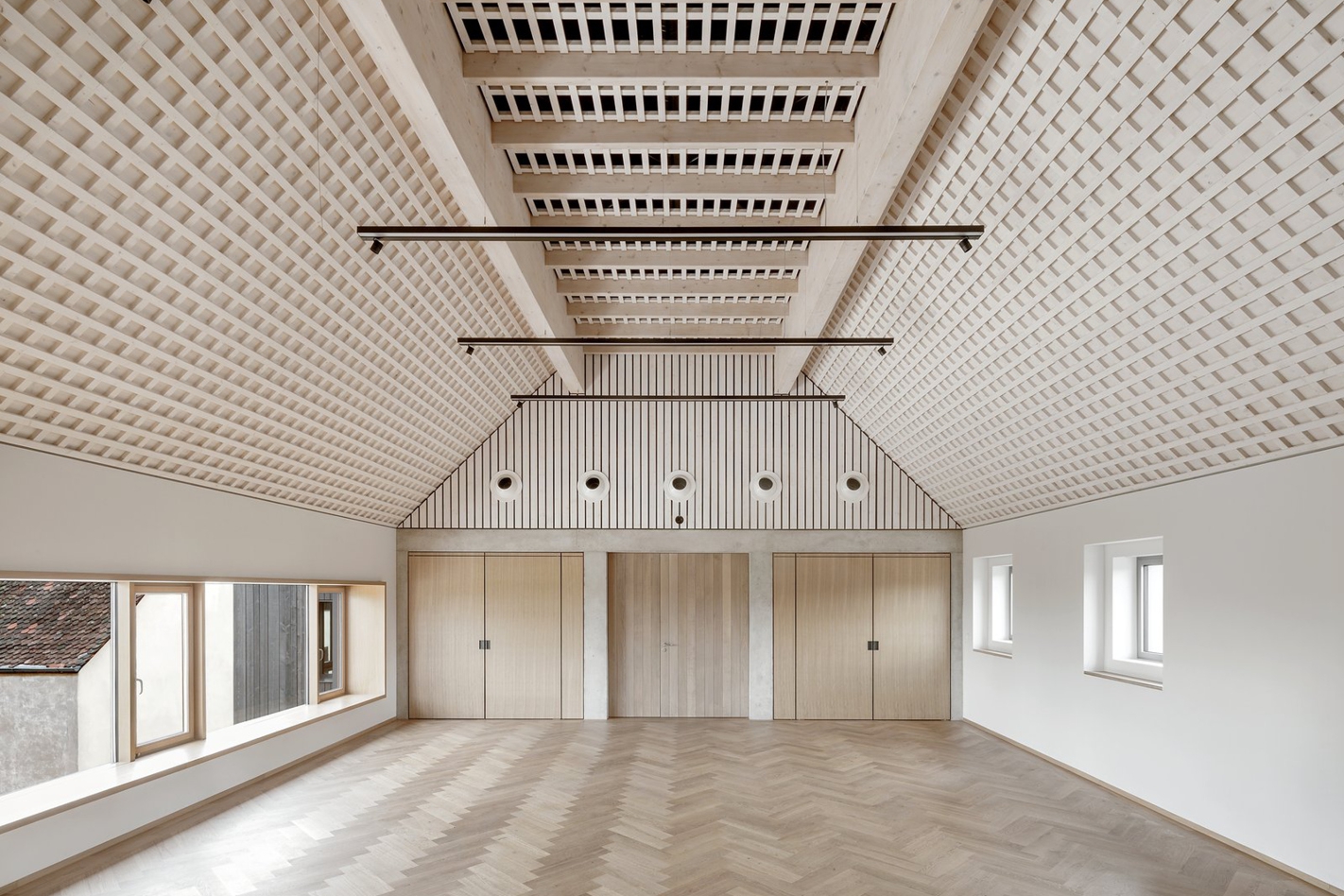

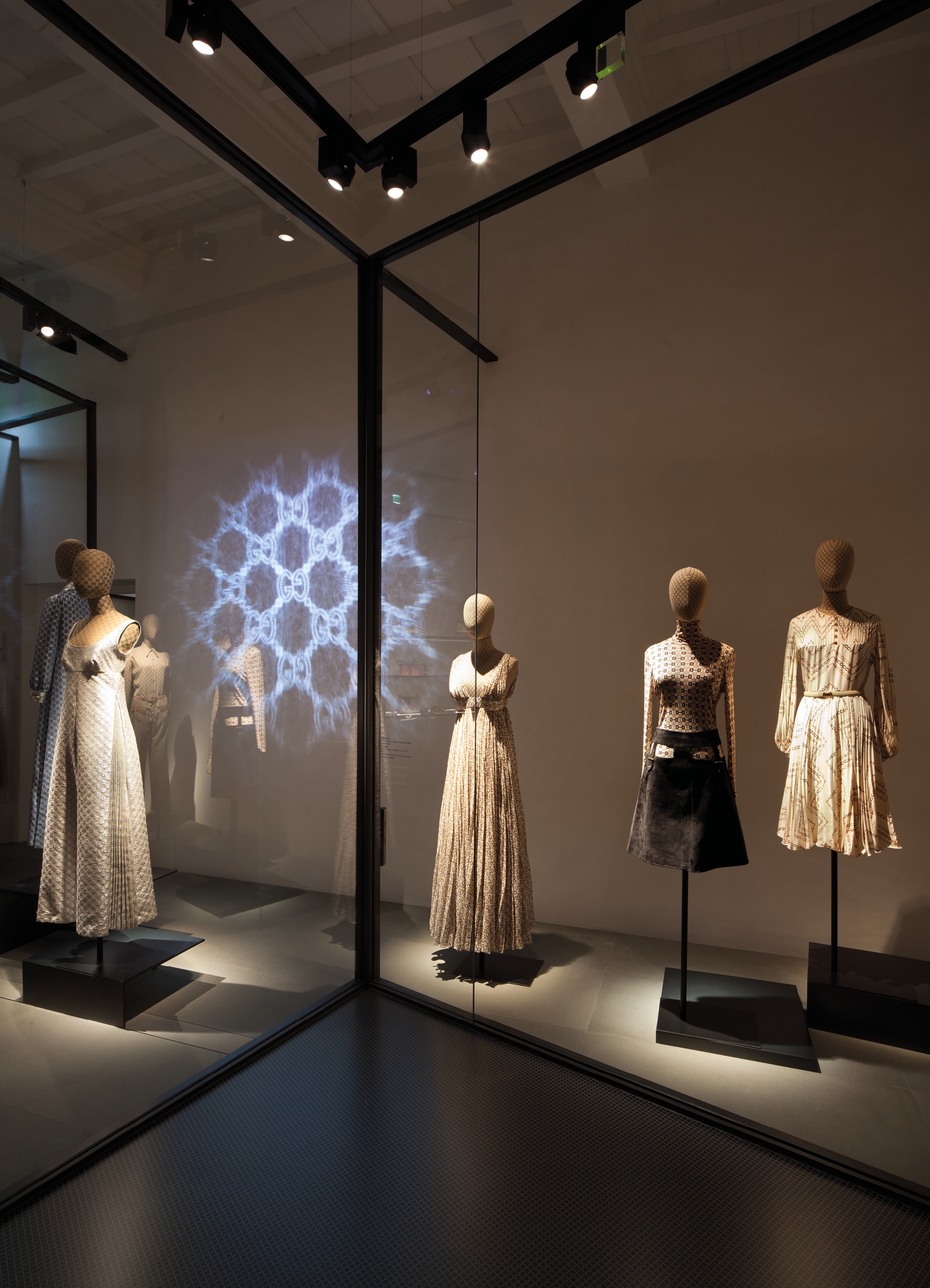

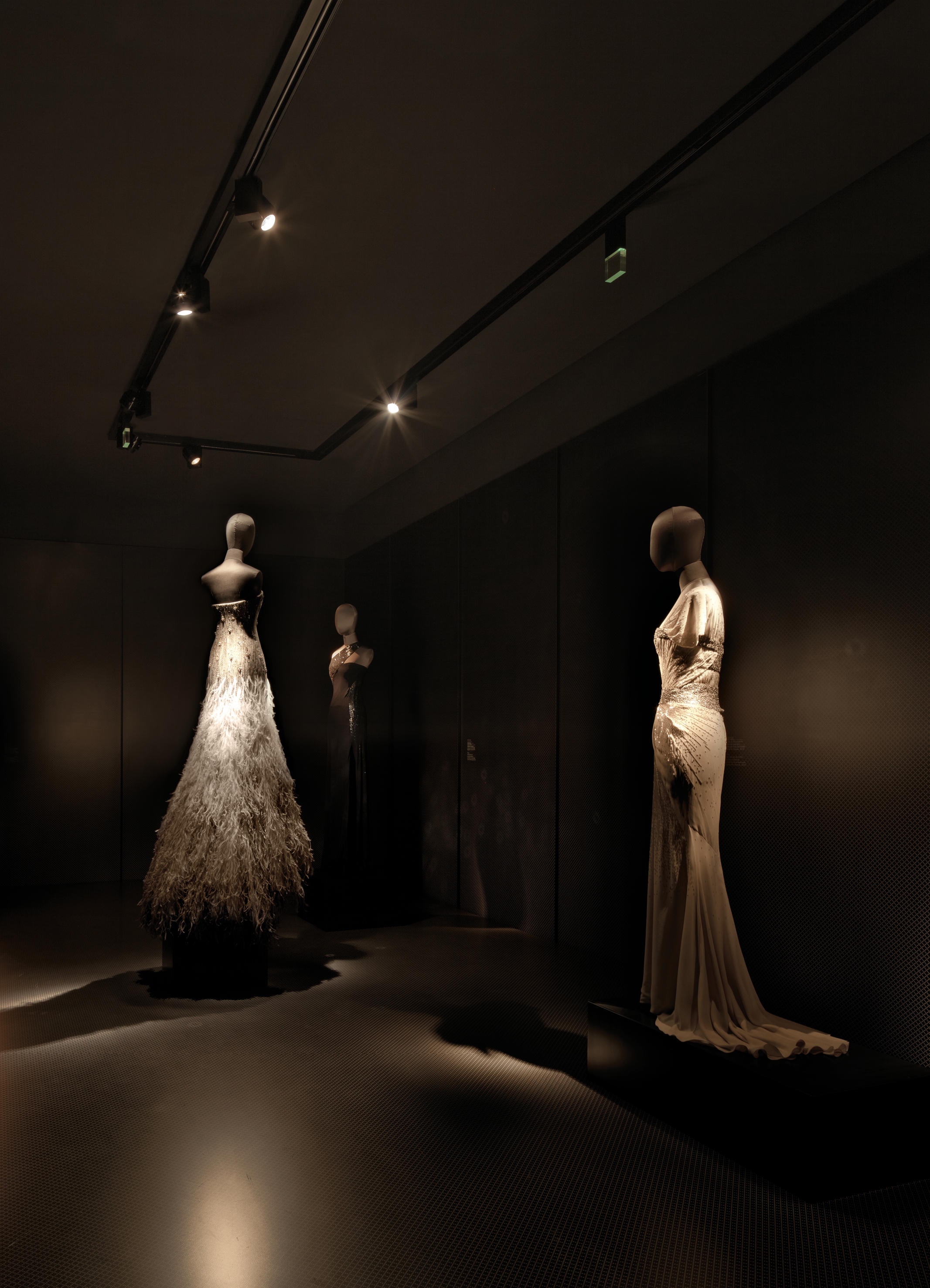

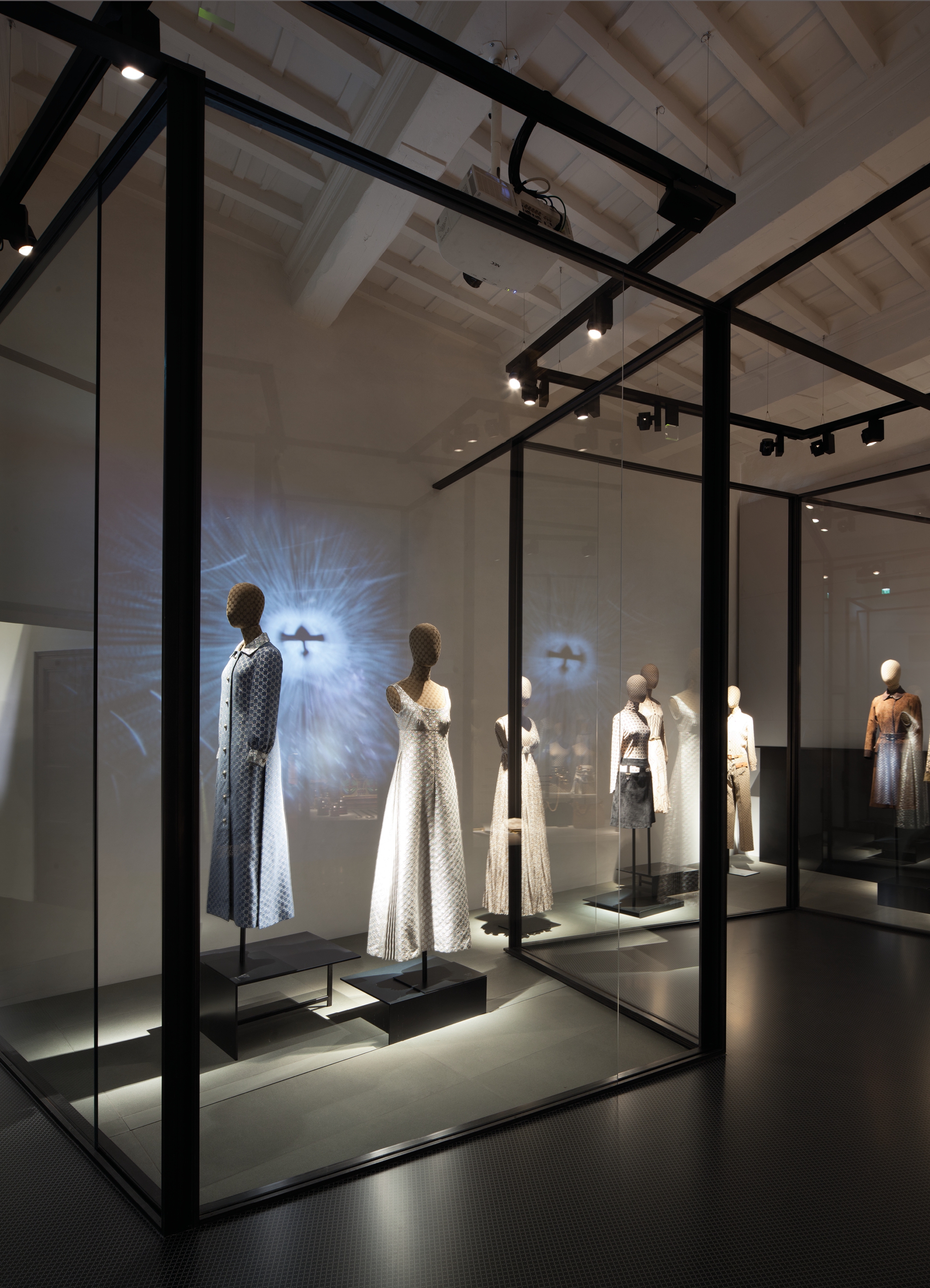

IP20 rated suspended and ceiling modular system for indoor use. made of oxidised extruded aluminium having a 90x45mm section and a length of 3000mm. the profile is made of two opposite 36mm wide grooves which can house kits for direct and light, and 4x6mm wide grooves for direct and indirect light. the system can also be used for the passage of electric cables using aluminium covers. the 36mm grooves can house: 3-230V tracks. 3-230V dali track. 1000mm, 1500mm, 2000mm linear kit wired with Ra95 3000K 26W/m led source up to 44.2W, 120-240V 50-60Hz power supply included. eco mini kits wired with Ra95 3000K up to 17.4W led source, 120-240V 50-60Hz power supply included, 12° 18° 36° optics. the 30mm grooves can be wired with linea di luce. the 6mm grooves can be wired with 13W/m and 6W/m 24Vdc linea di luce. components: profile connection to the ceiling, suspension kit with cable. accessories: led support, aluminium cover, sanded polycarbonate, prismatic polycarbonate, 13x8 polycarbonate, support for trasparenze, pair of caps, linear joints and corner joints. finishes: matt silver, bianco V, nero55.
