094 system
2010

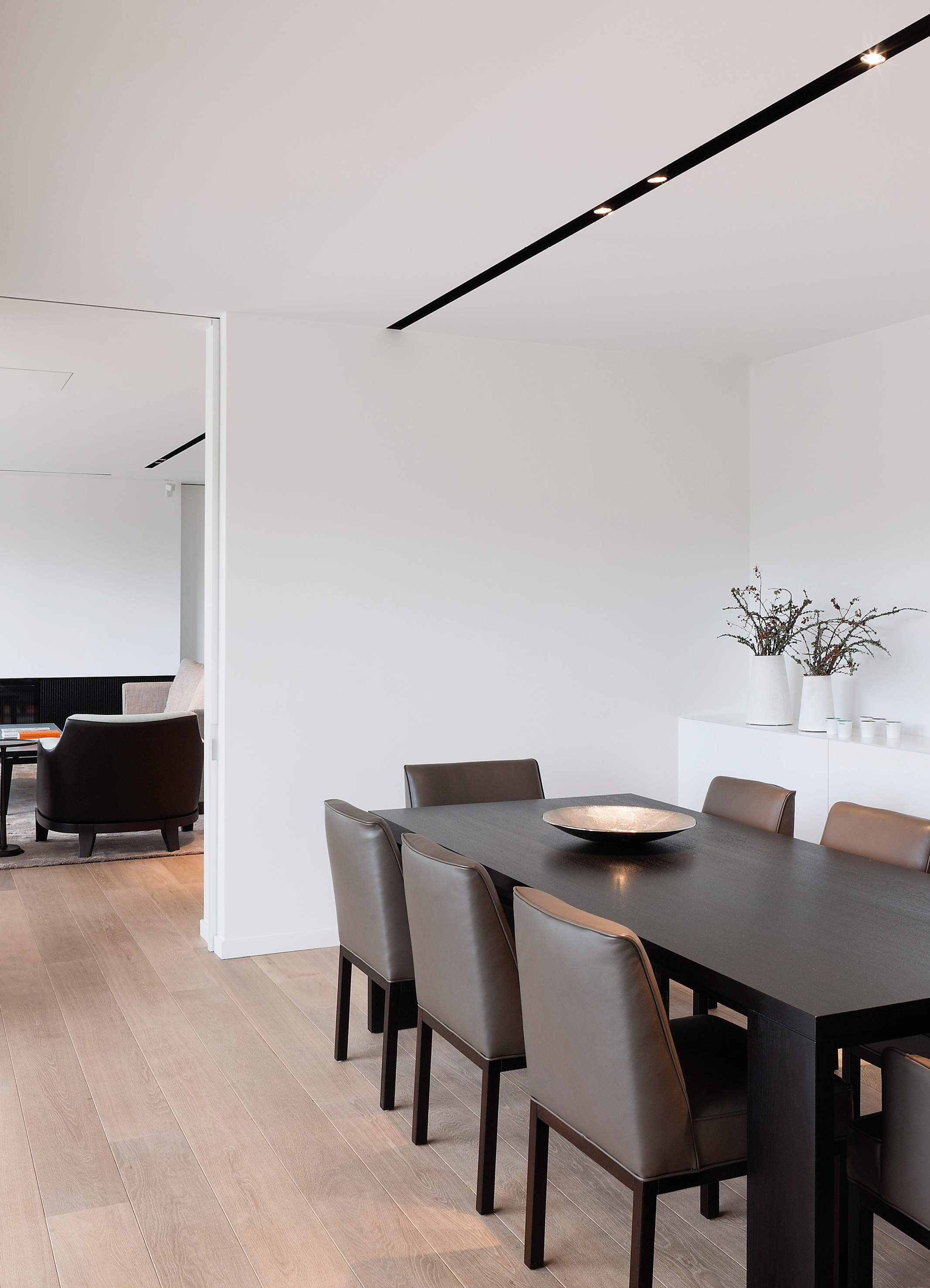

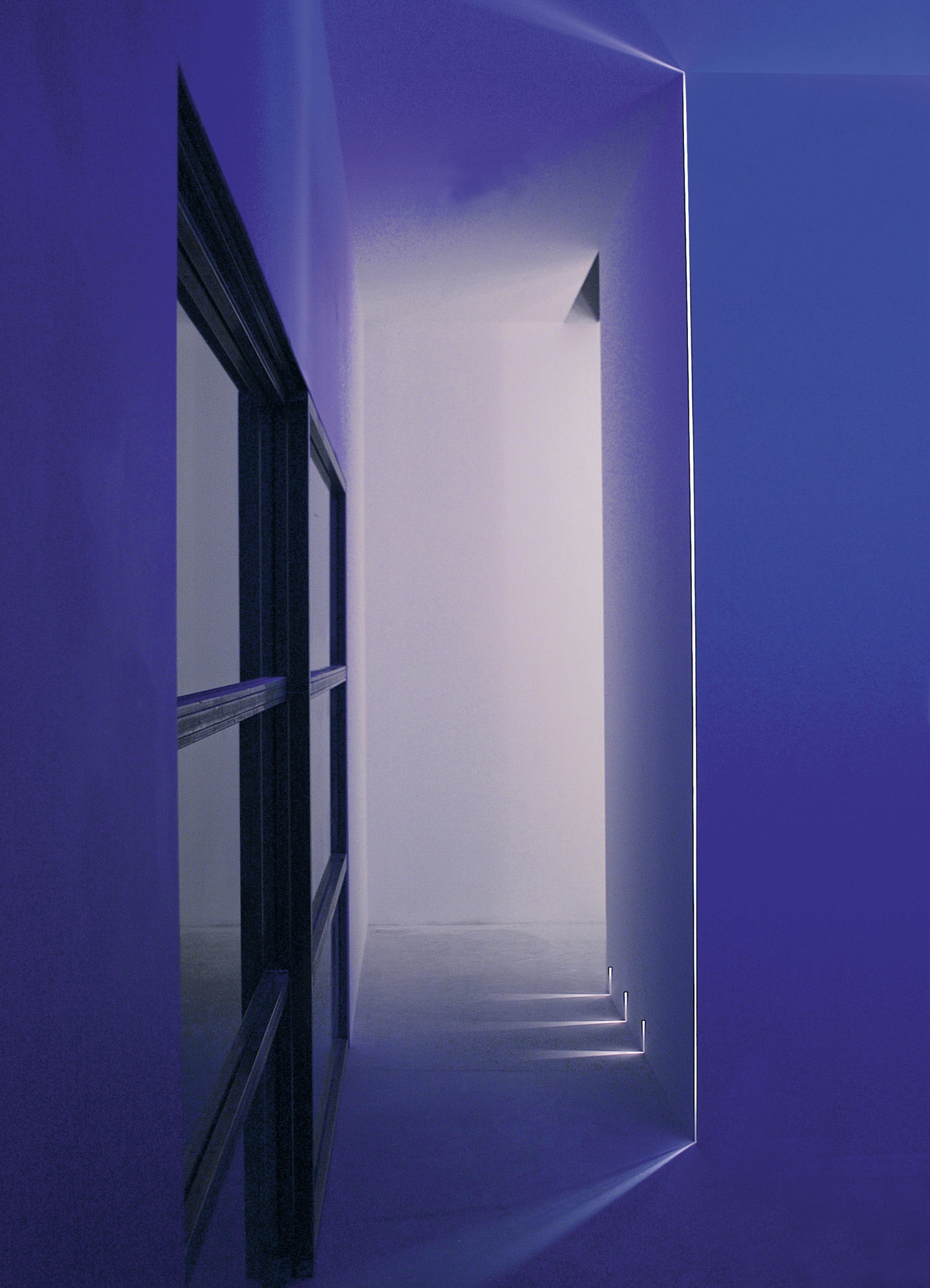

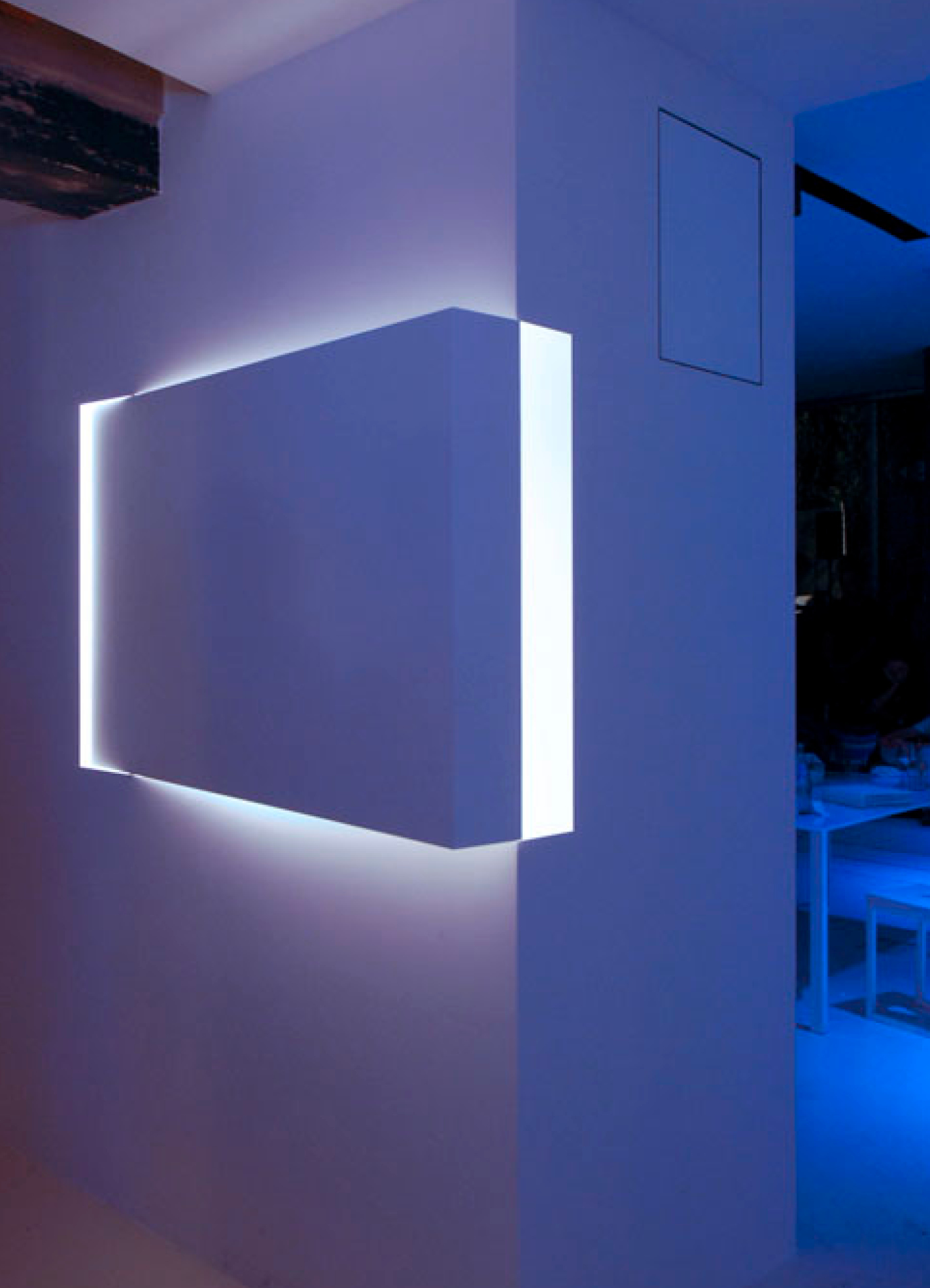

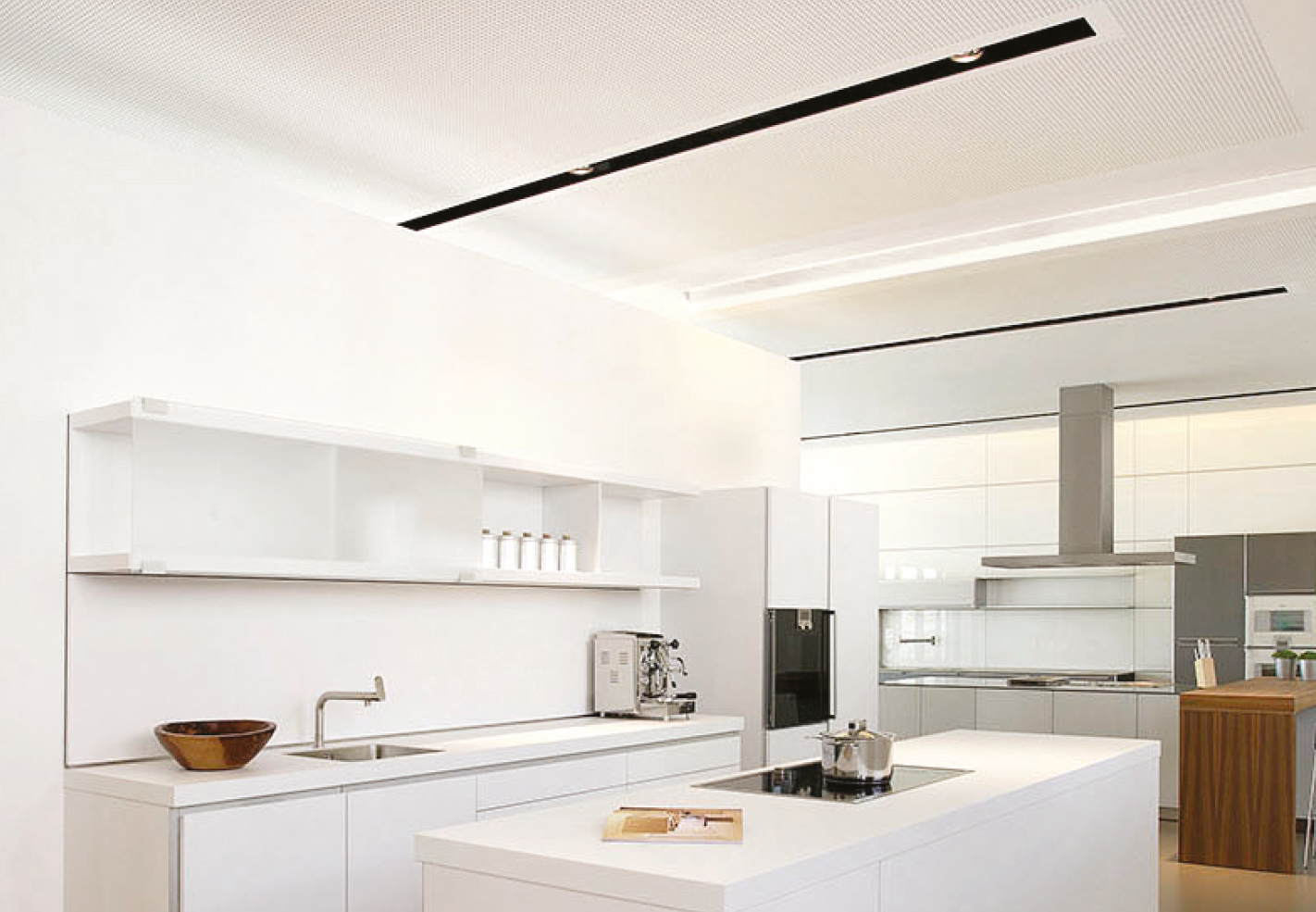

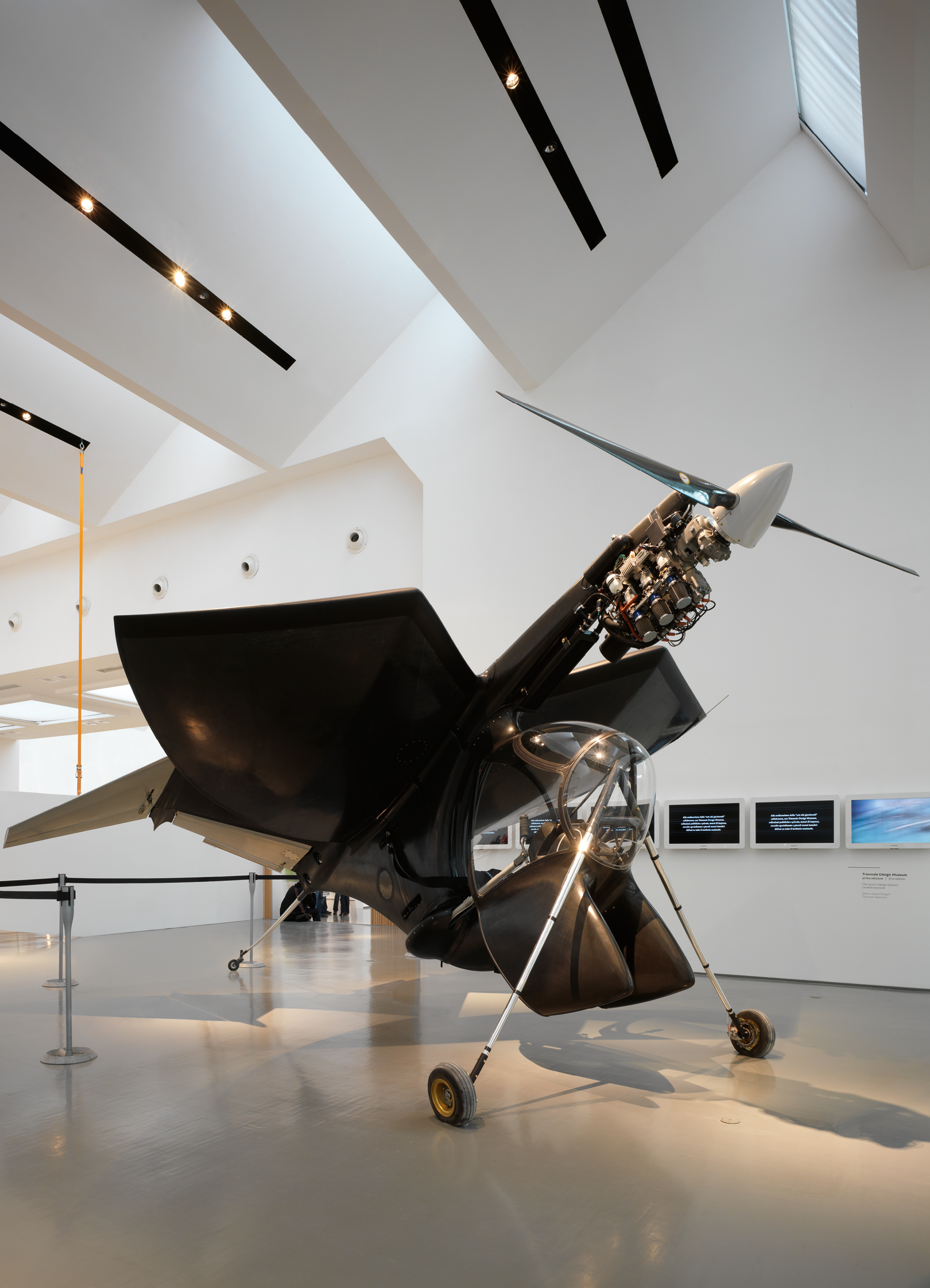

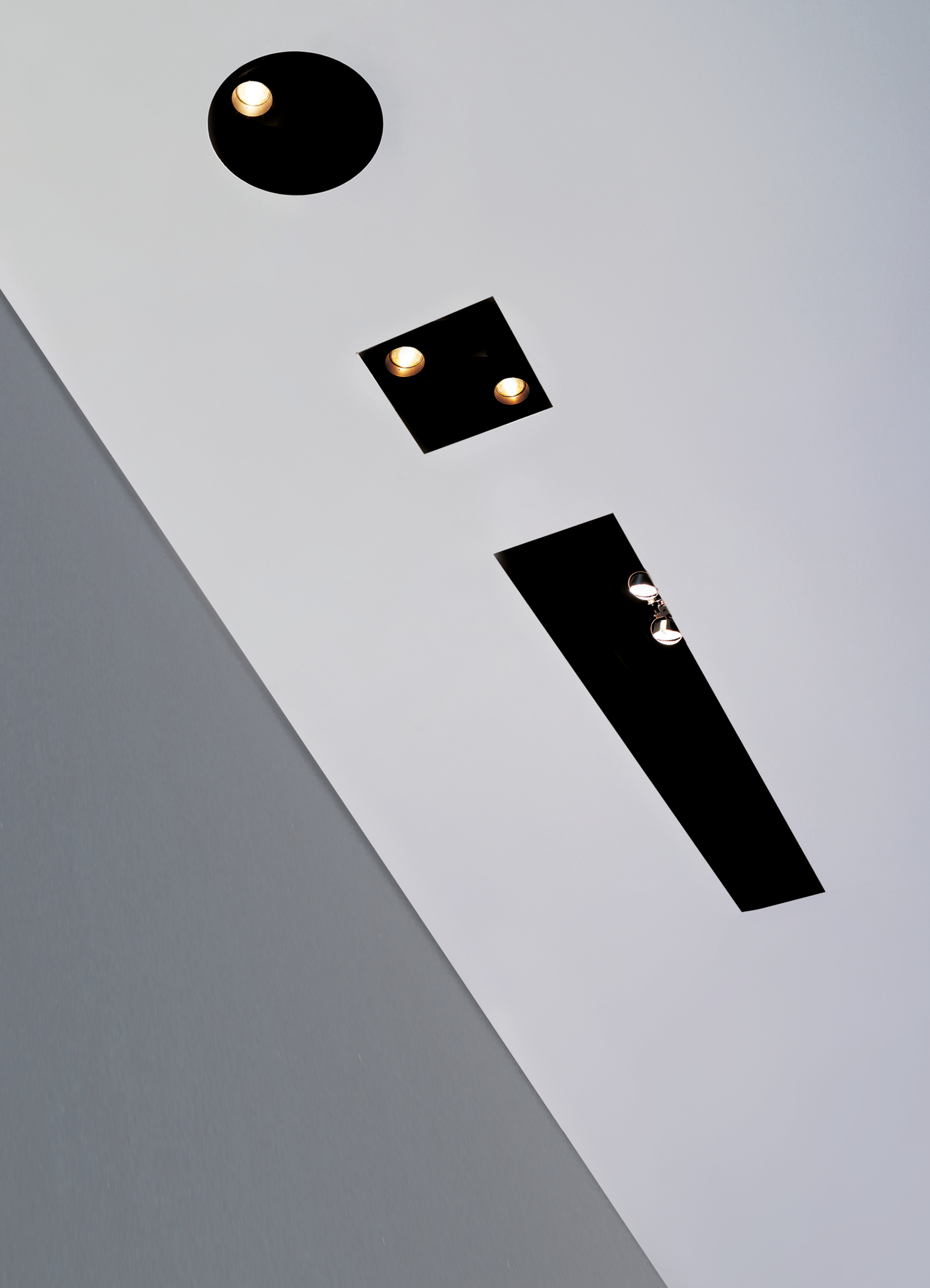

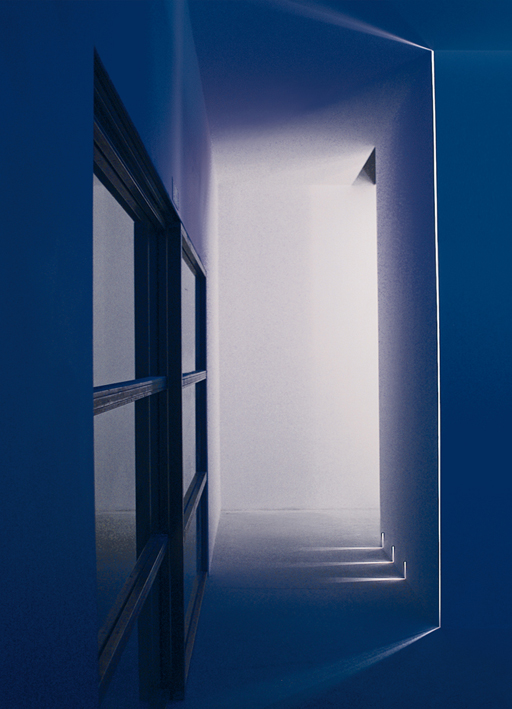

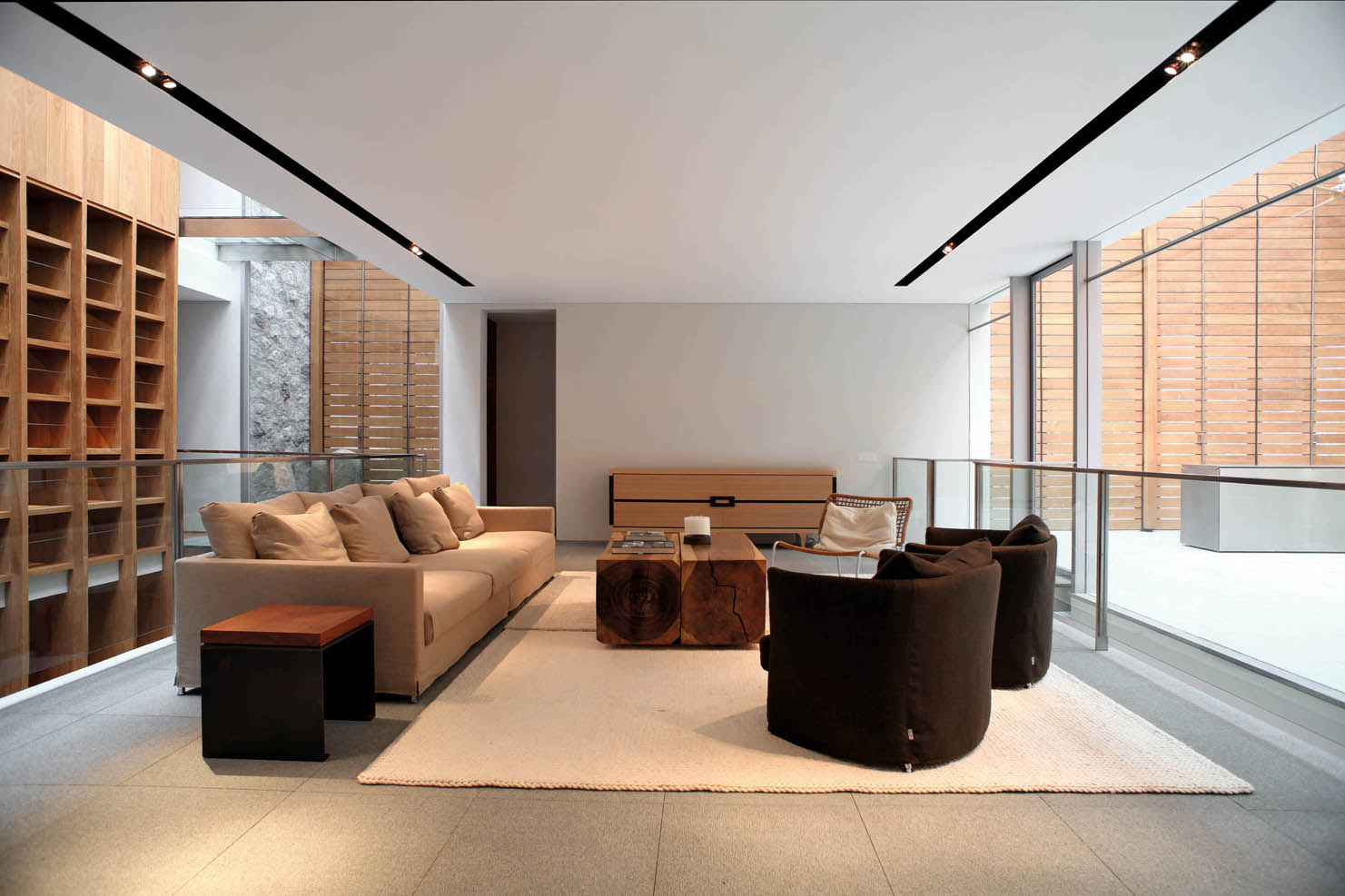

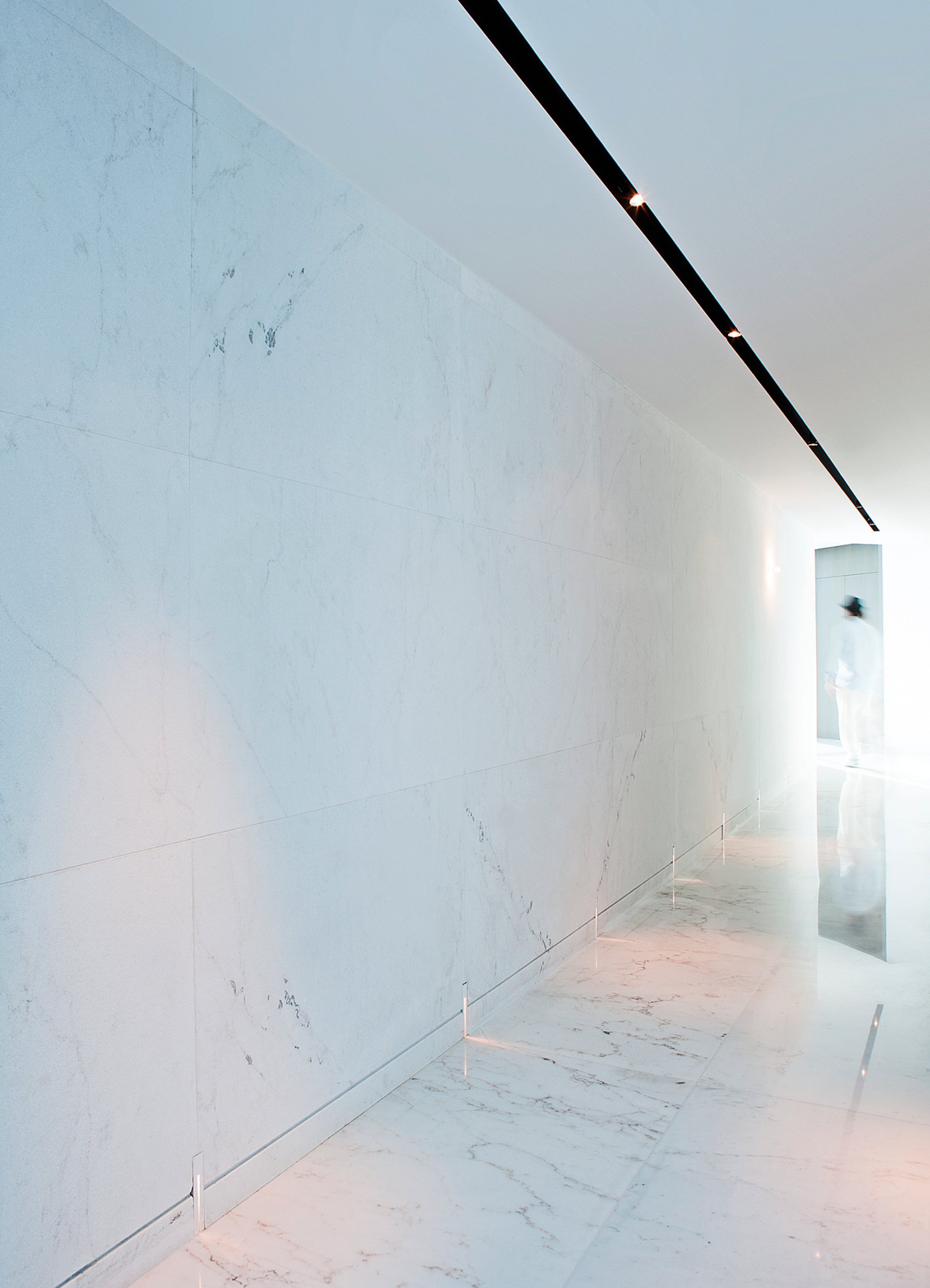

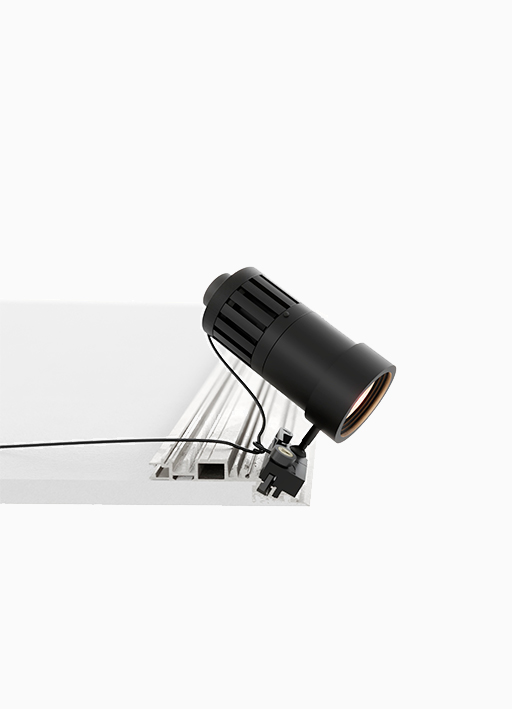

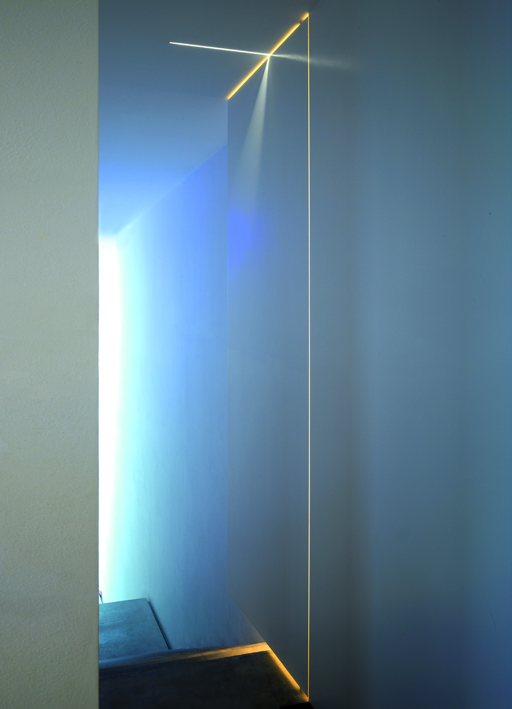

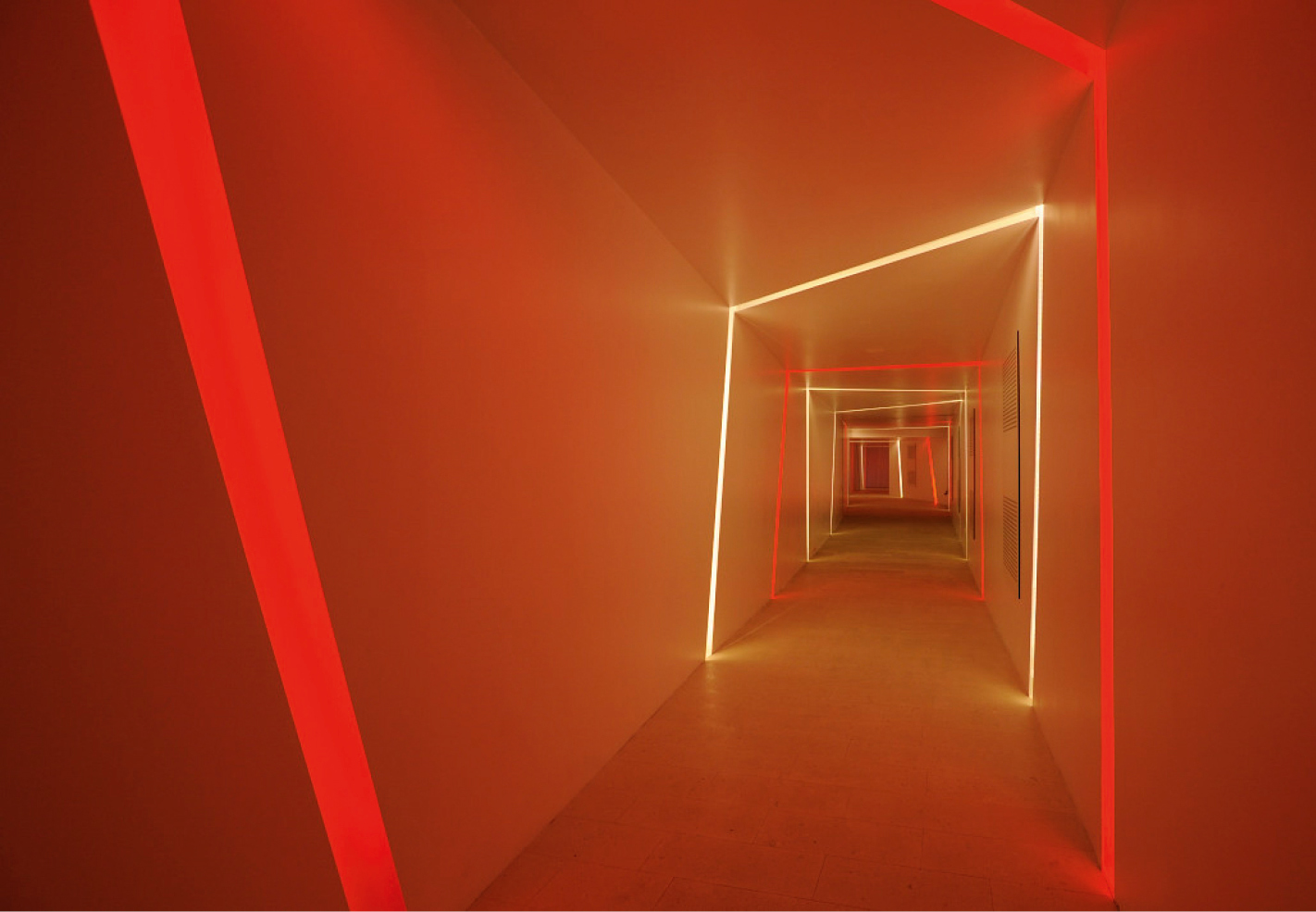

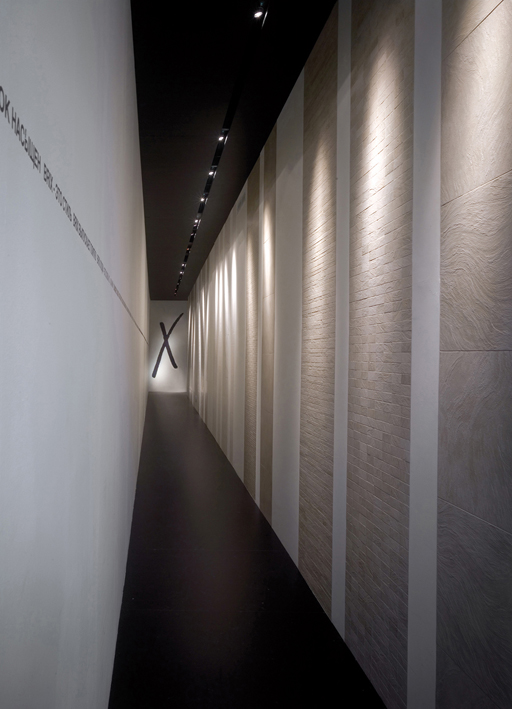

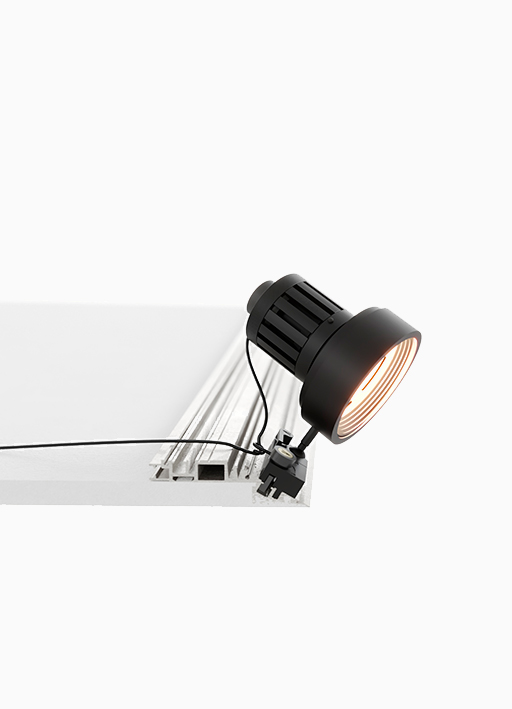

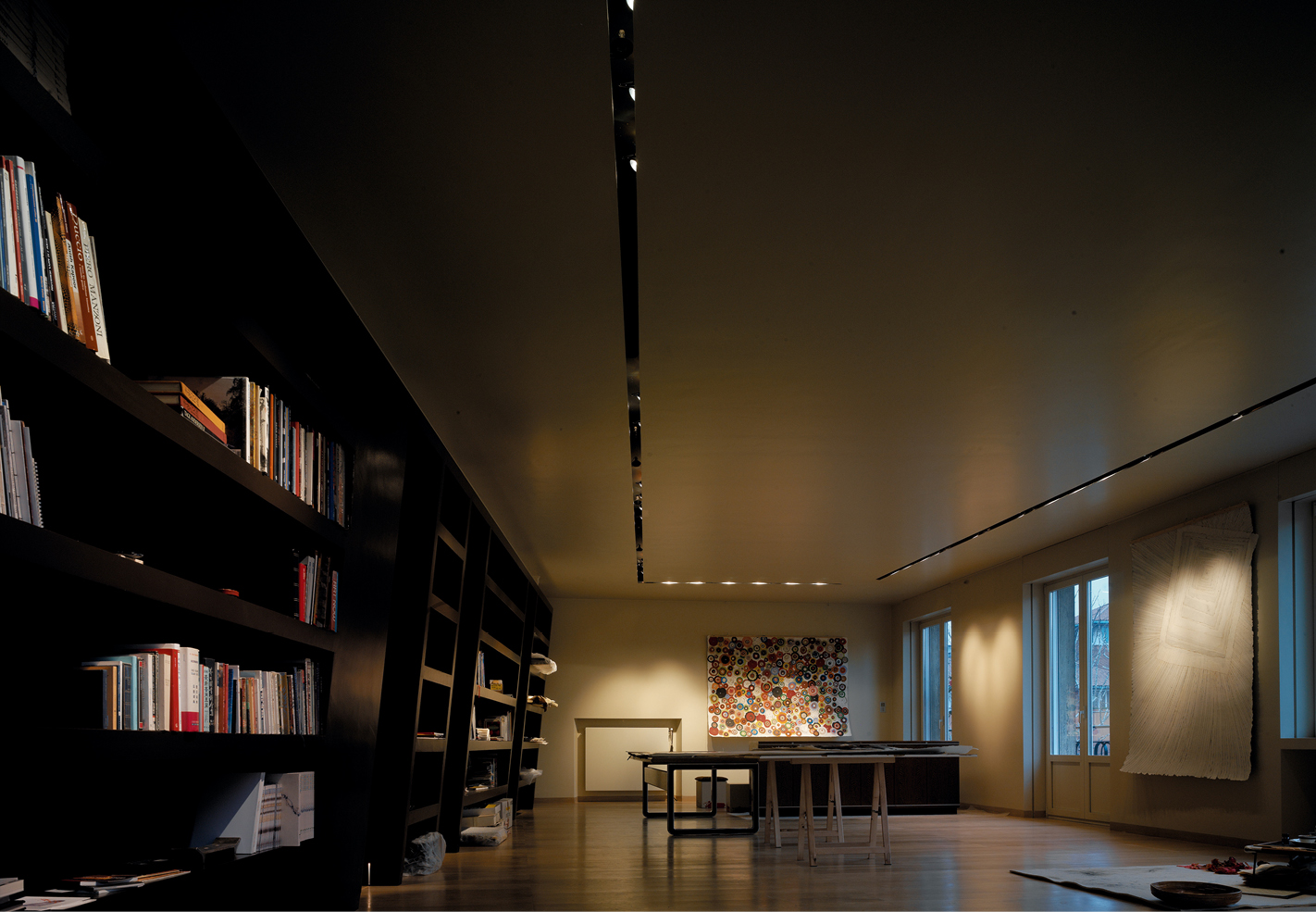

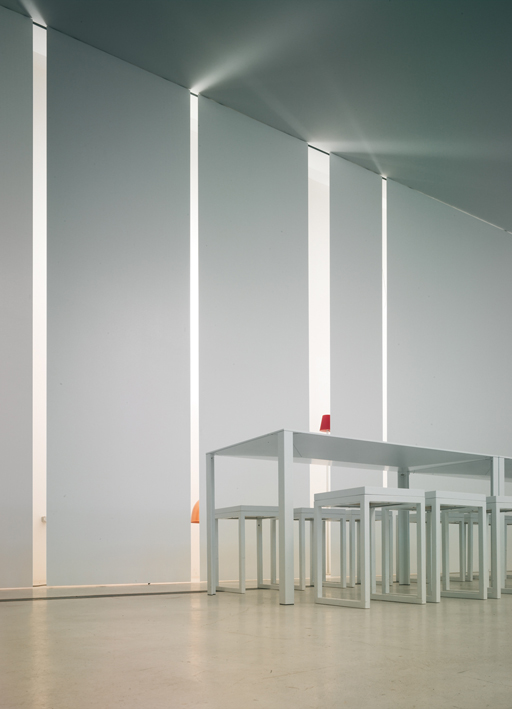

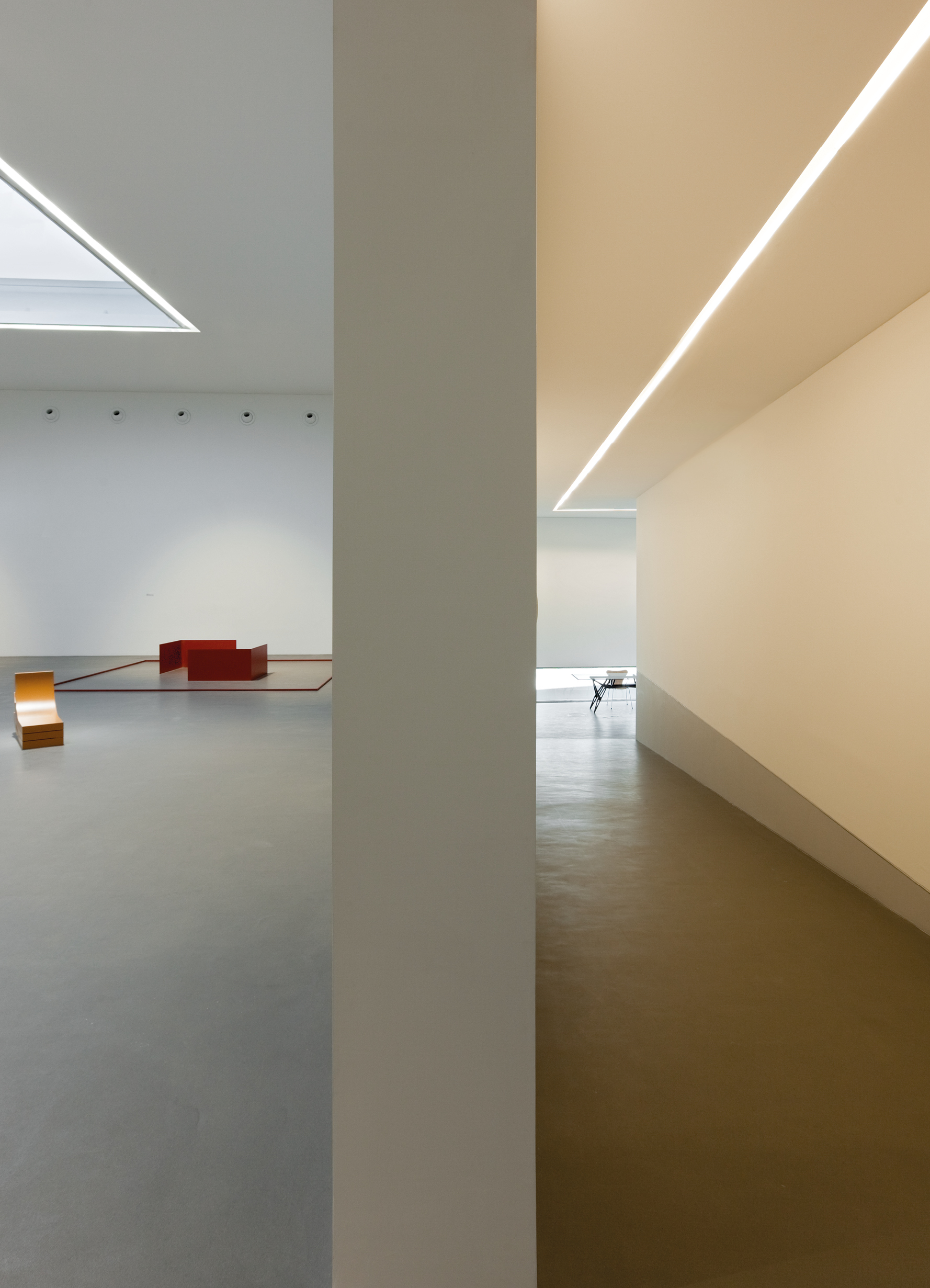

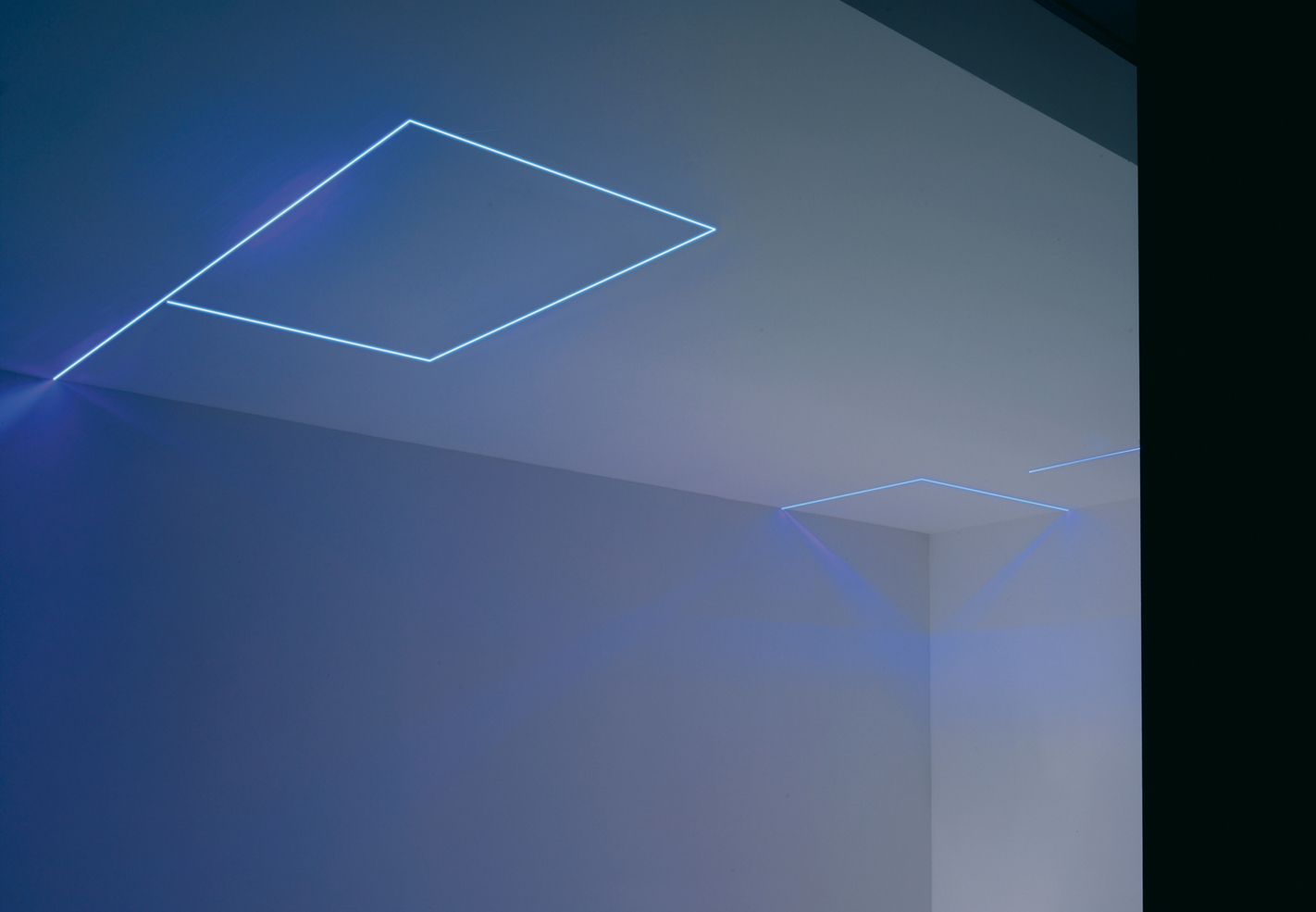

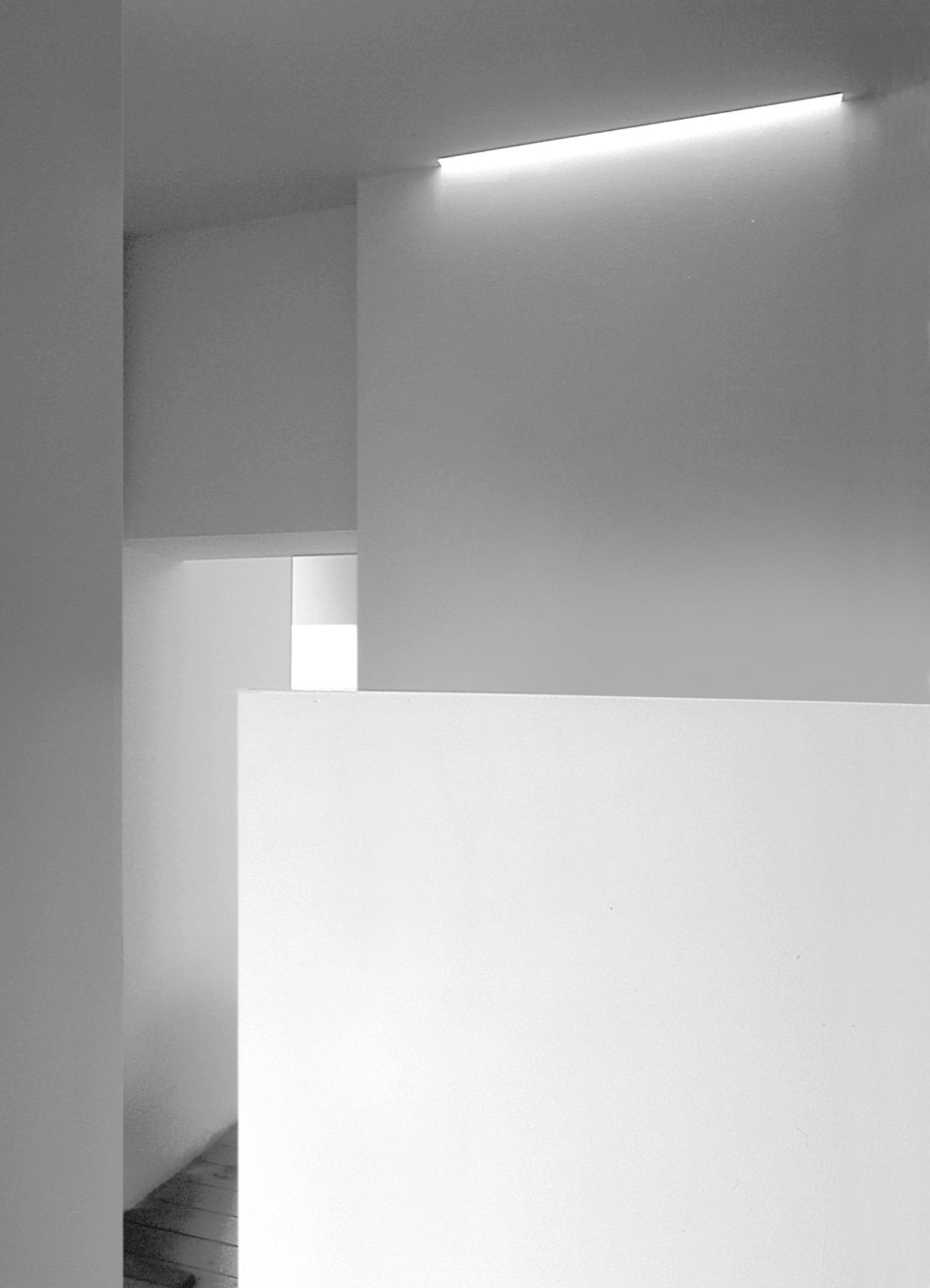

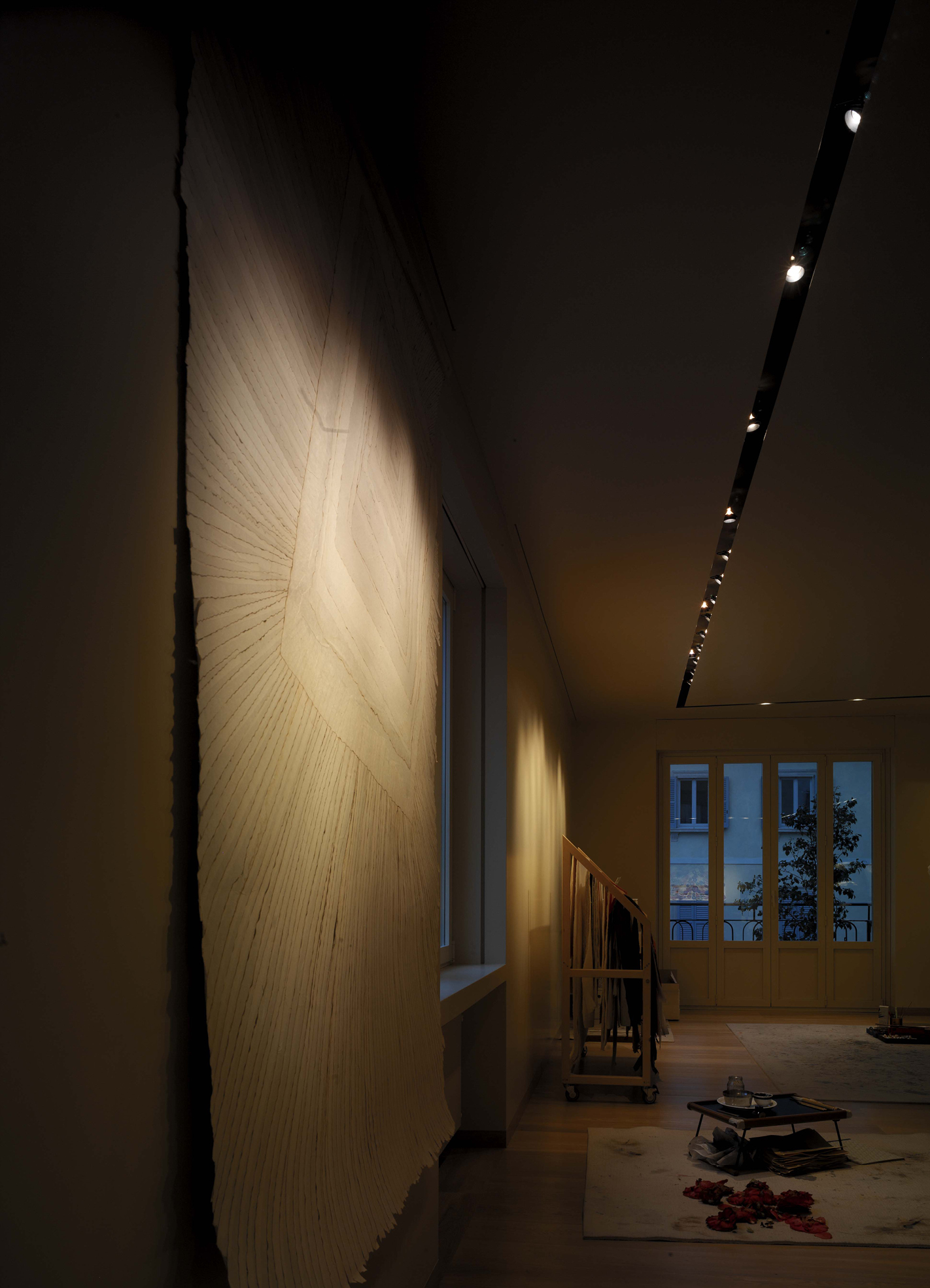

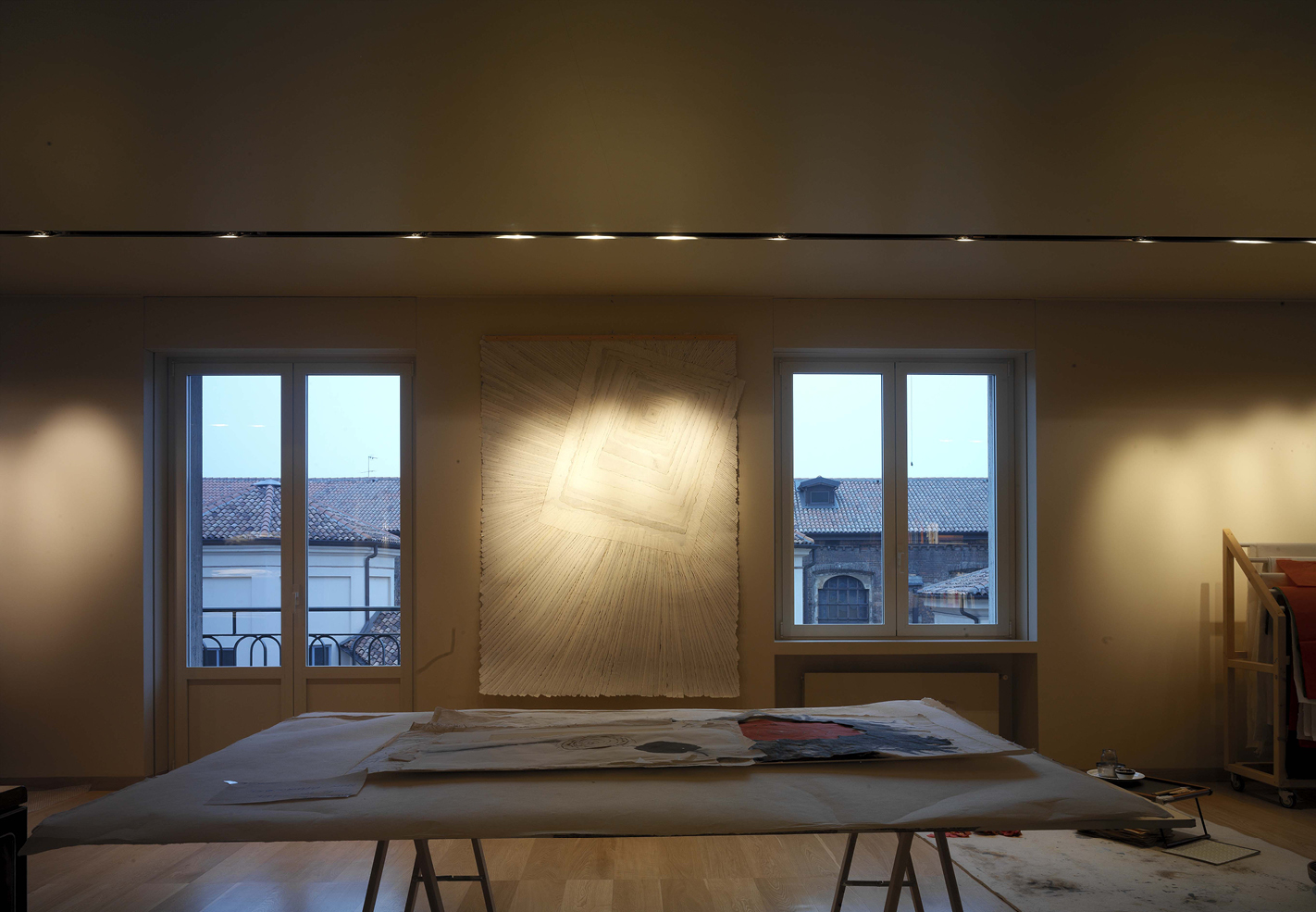

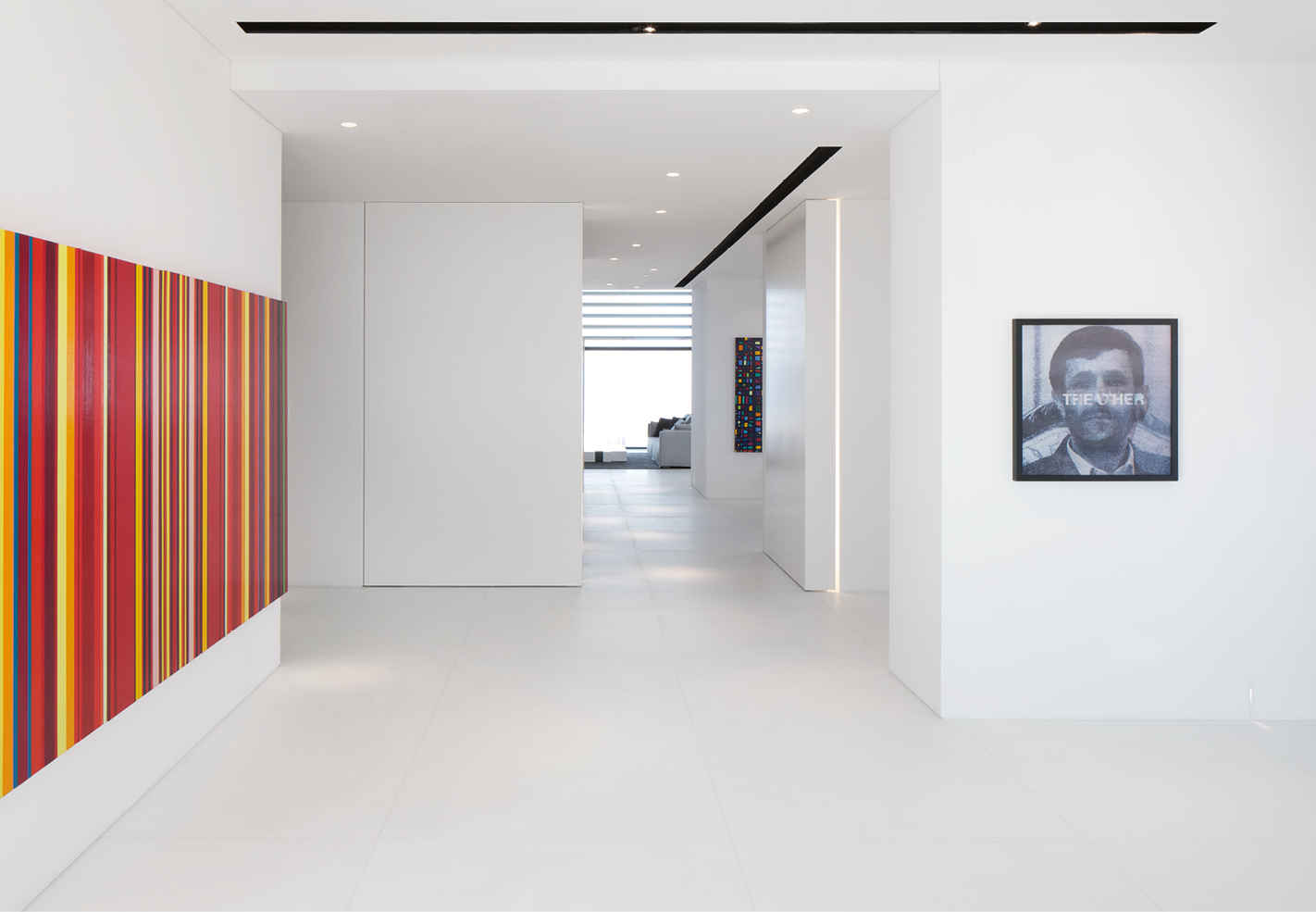

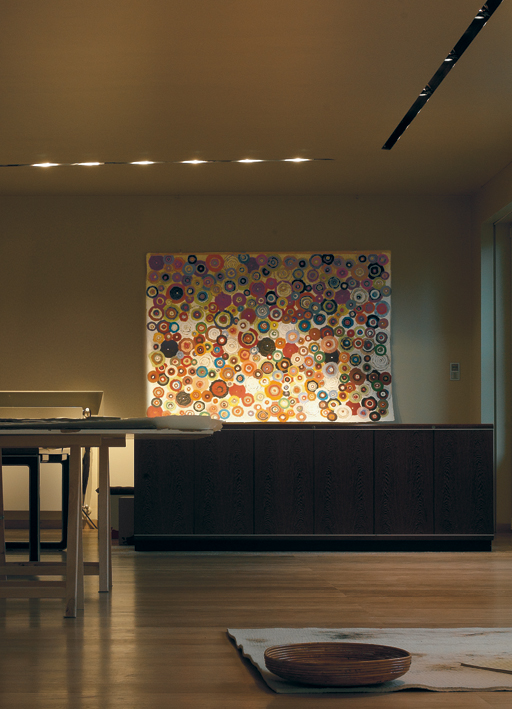

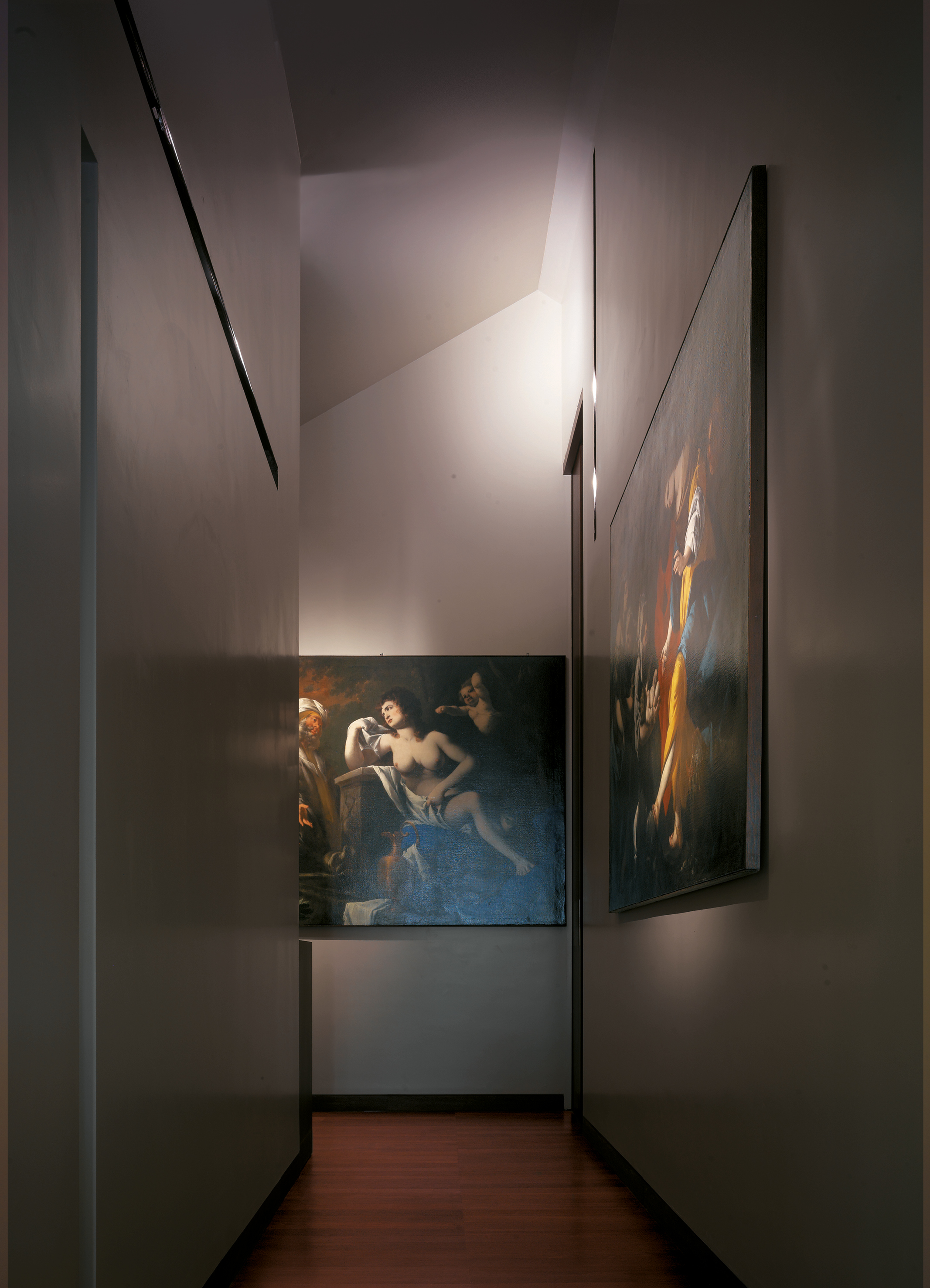

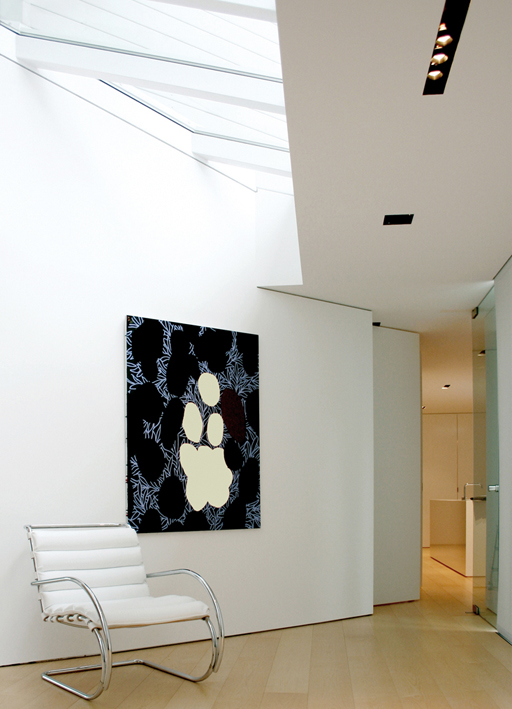

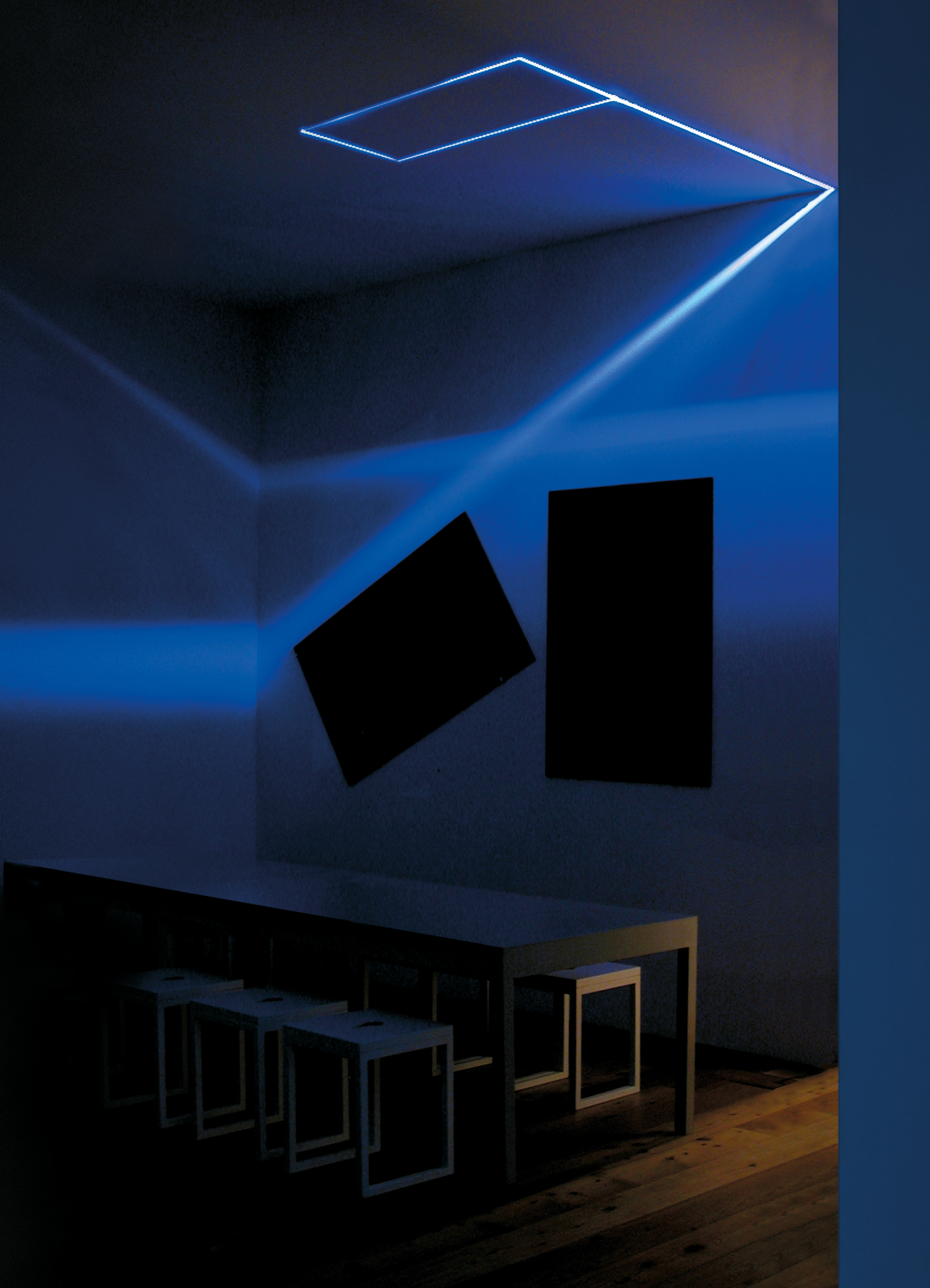

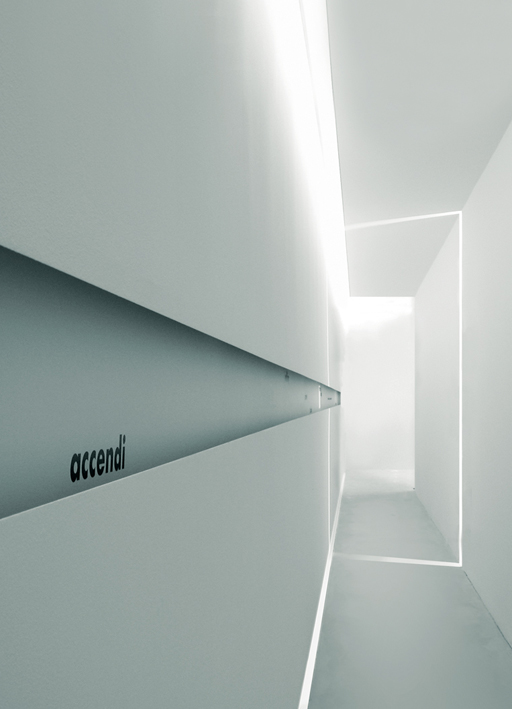

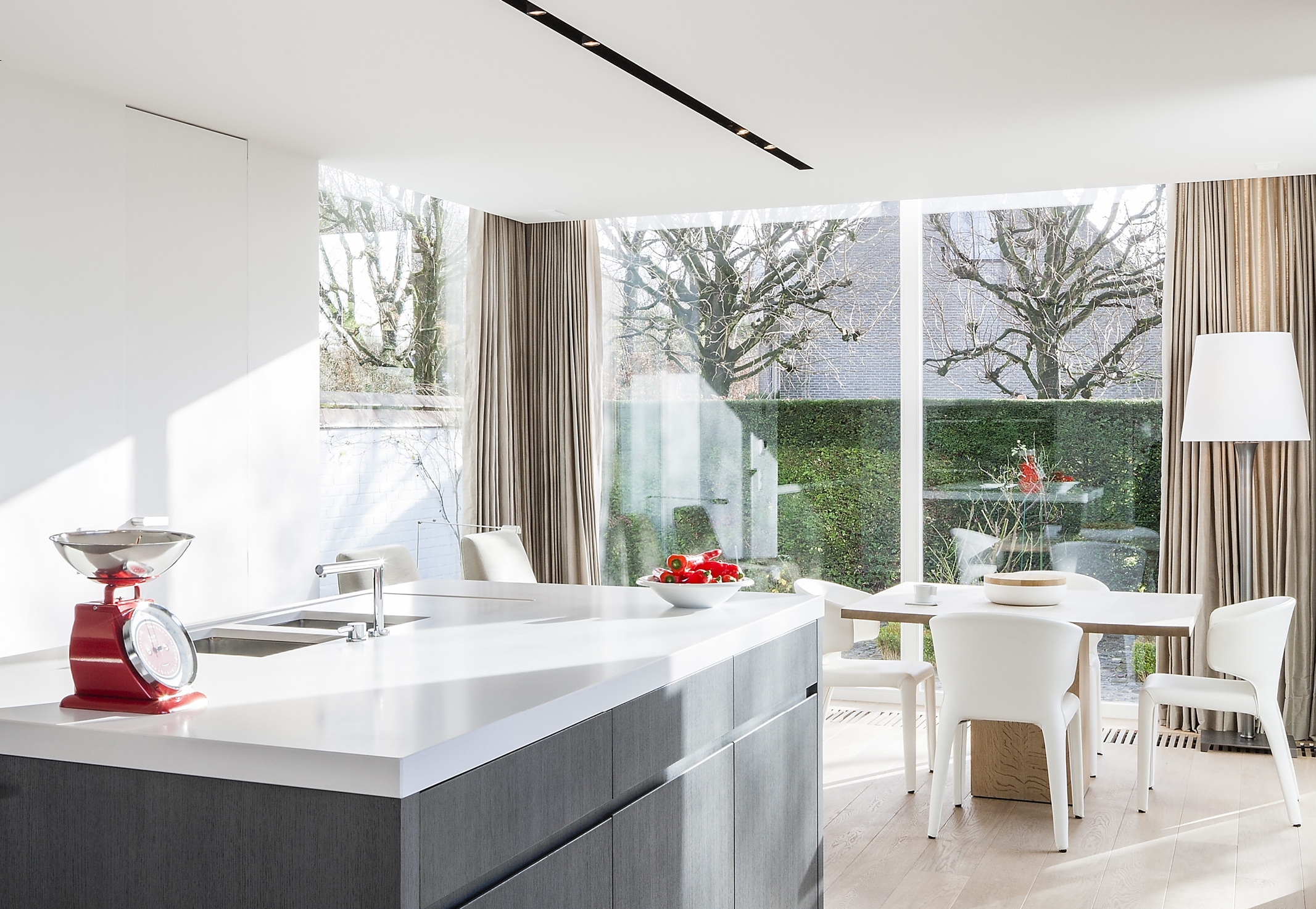

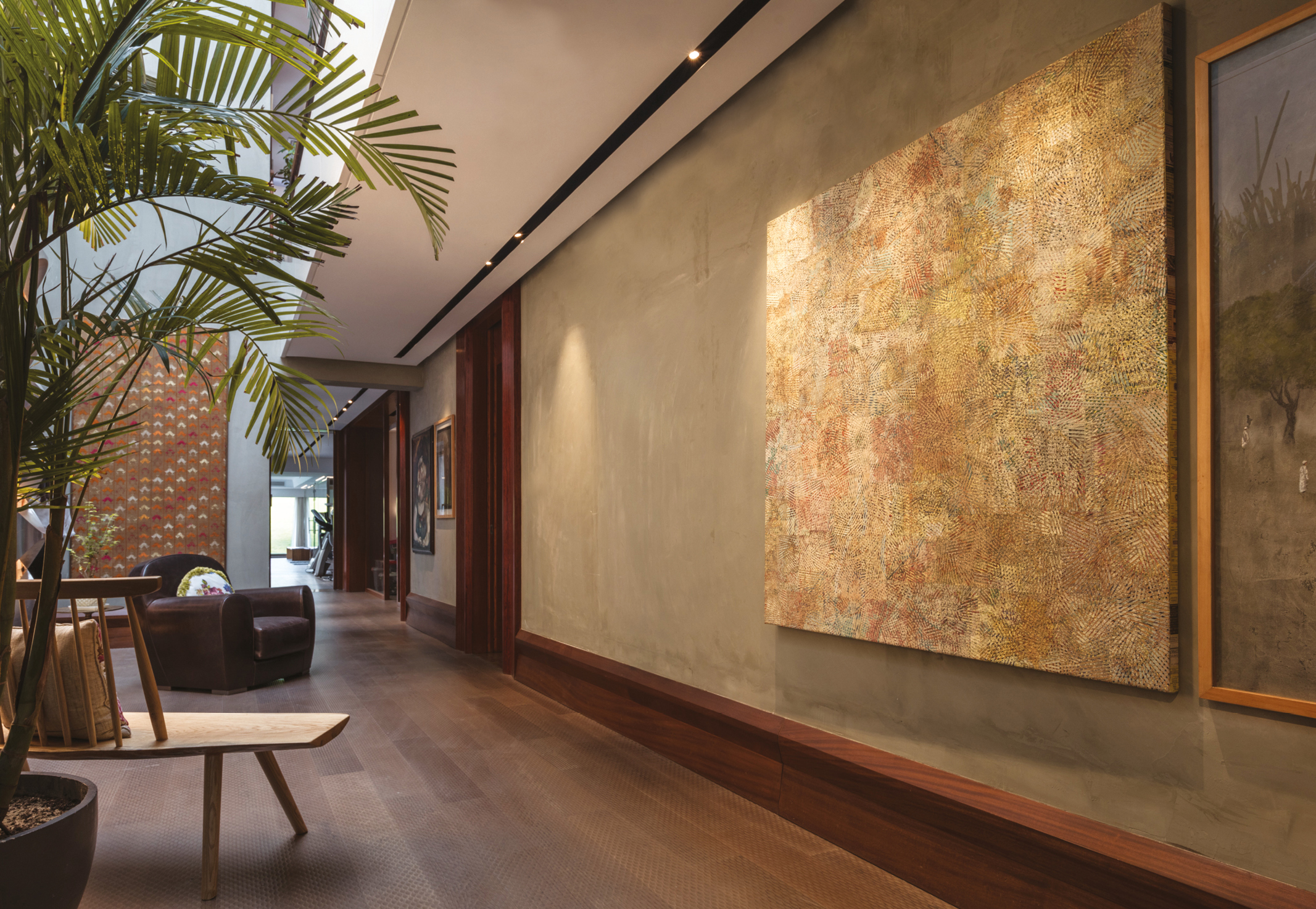

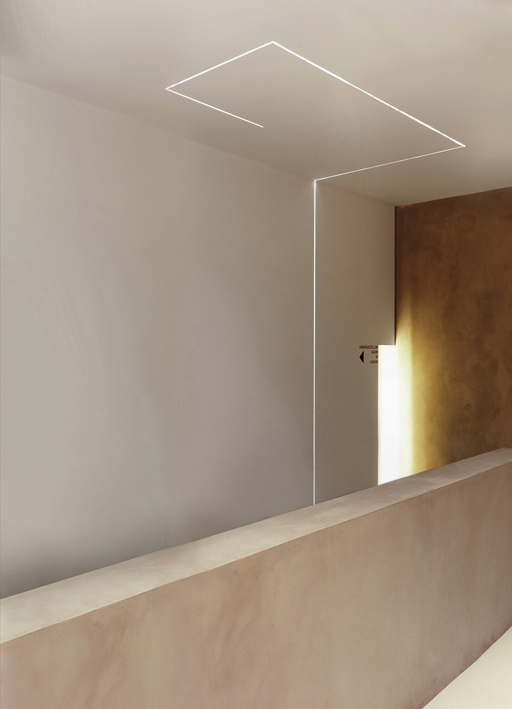

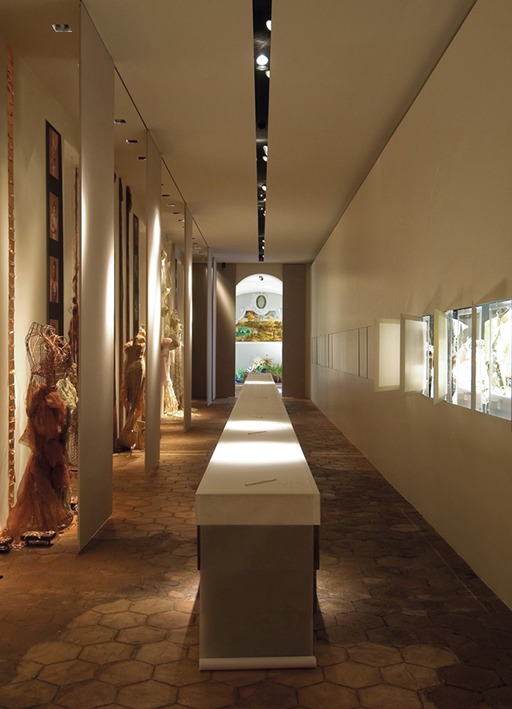

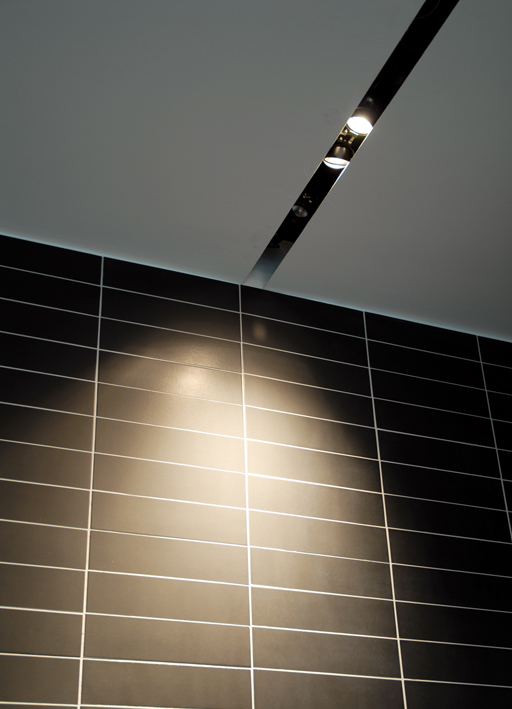

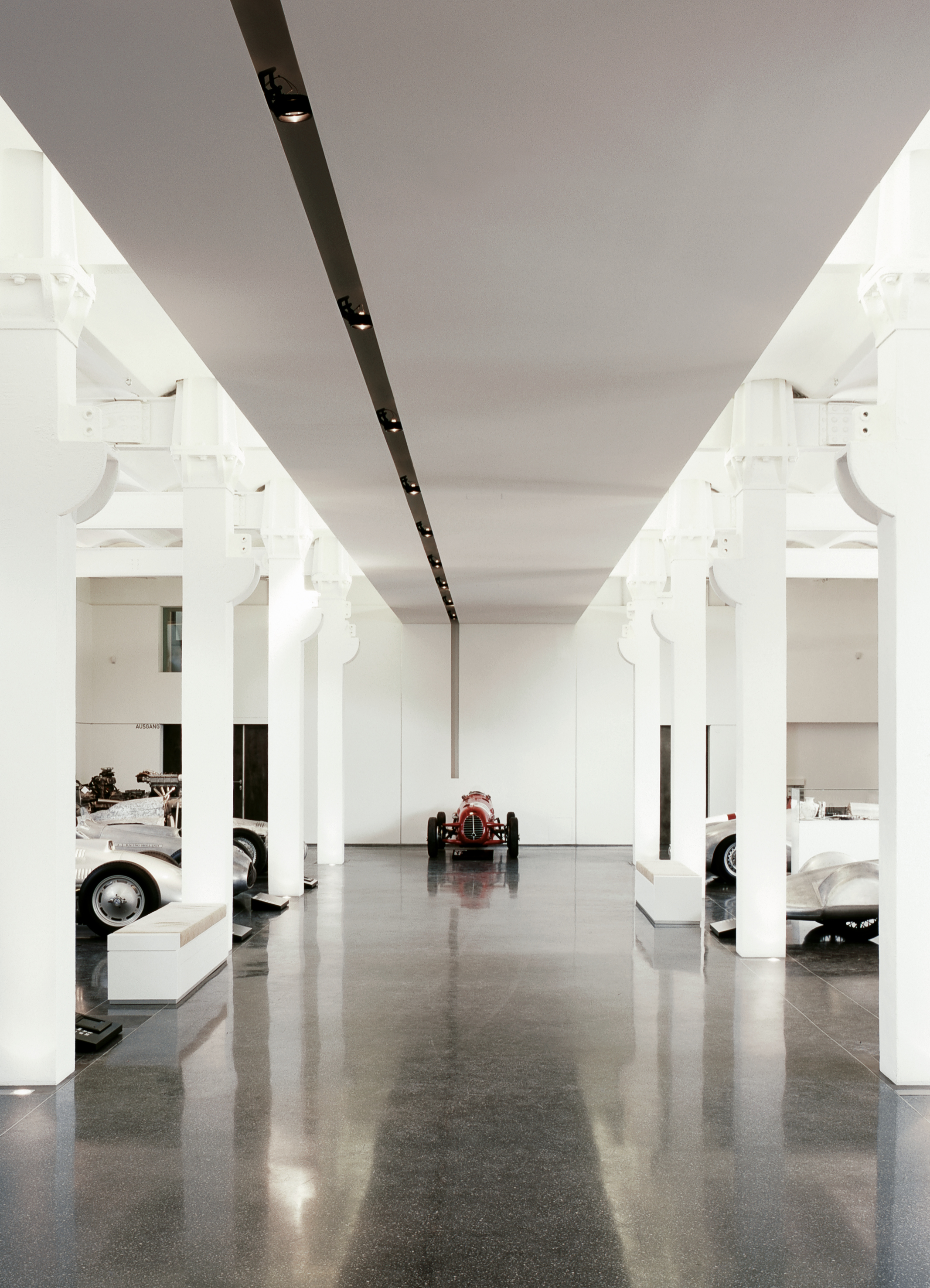

system designed to be integrated in the architecture, it not only suggests new ways of designing space through lighting but also enables services and technical installations to be integrated with spatial requirements. made of an extruded aluminium profile measuring 94x28.5mm to obtain surfaces with tapered thickness for plasterboard up to 15mm. the system gives maximum design flexibility using end plates to create 70mm to 140mm grooves, 500mm, 1000mm, 2000mm or 3000mm profiles with connection joints and end reflector. housings with profiles to create 100x100mm Ø100mm or 140x140mm Ø140mm openings are also available. accessories: internal or external angular connectors, linear joints, compensatory thickness, hinges, tracks and brackets for trapdoors and sliding doors. the profile can be equipped with kit elettrici di cablaggio per sistemi integrati con l’architettura. finishes: natural aluminium and nero55 profile; nero55 and bianco V reflector and housings. customize your light visit www.Viabizzuno.com
