m1 micro scomparsa totale
2016

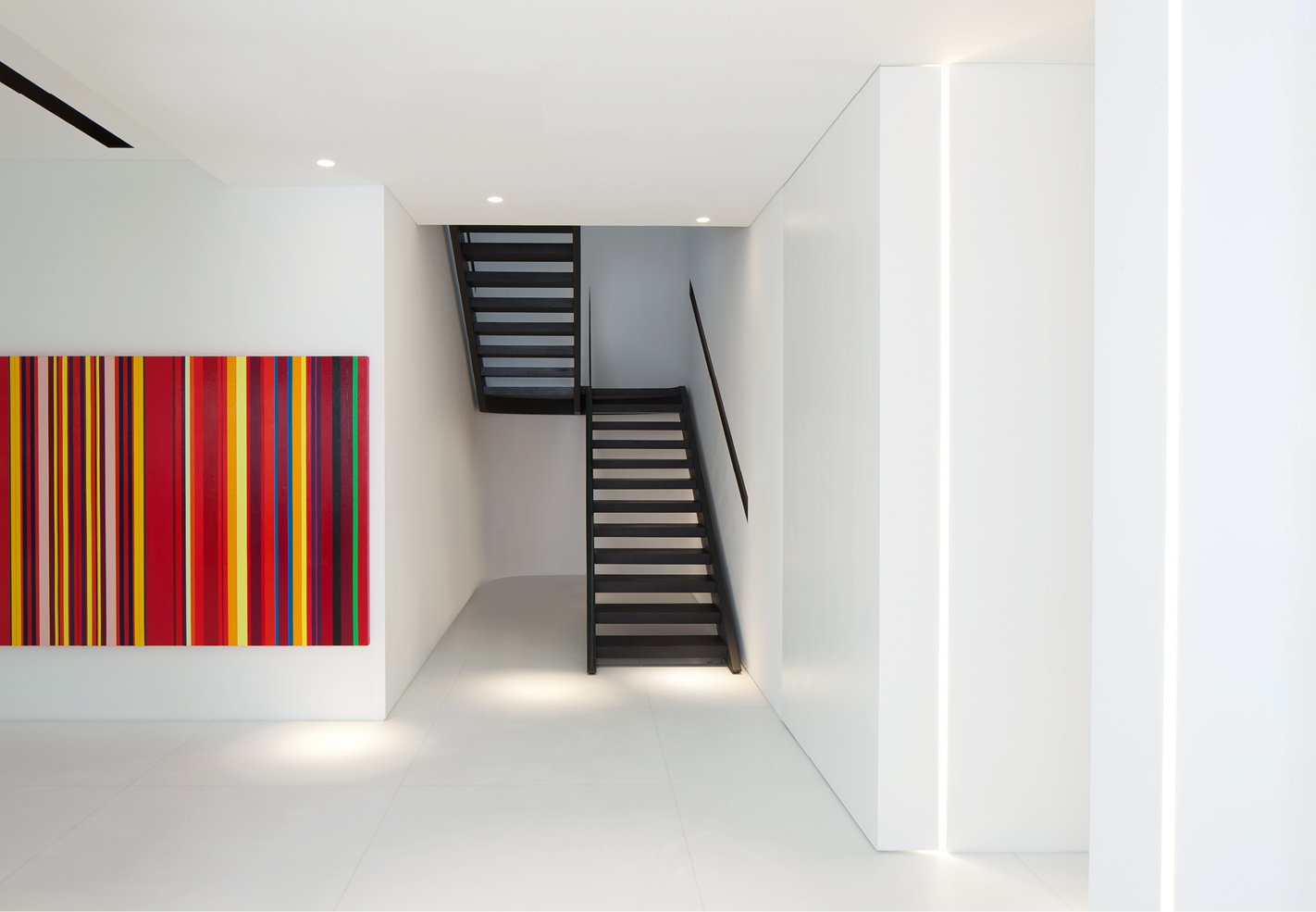

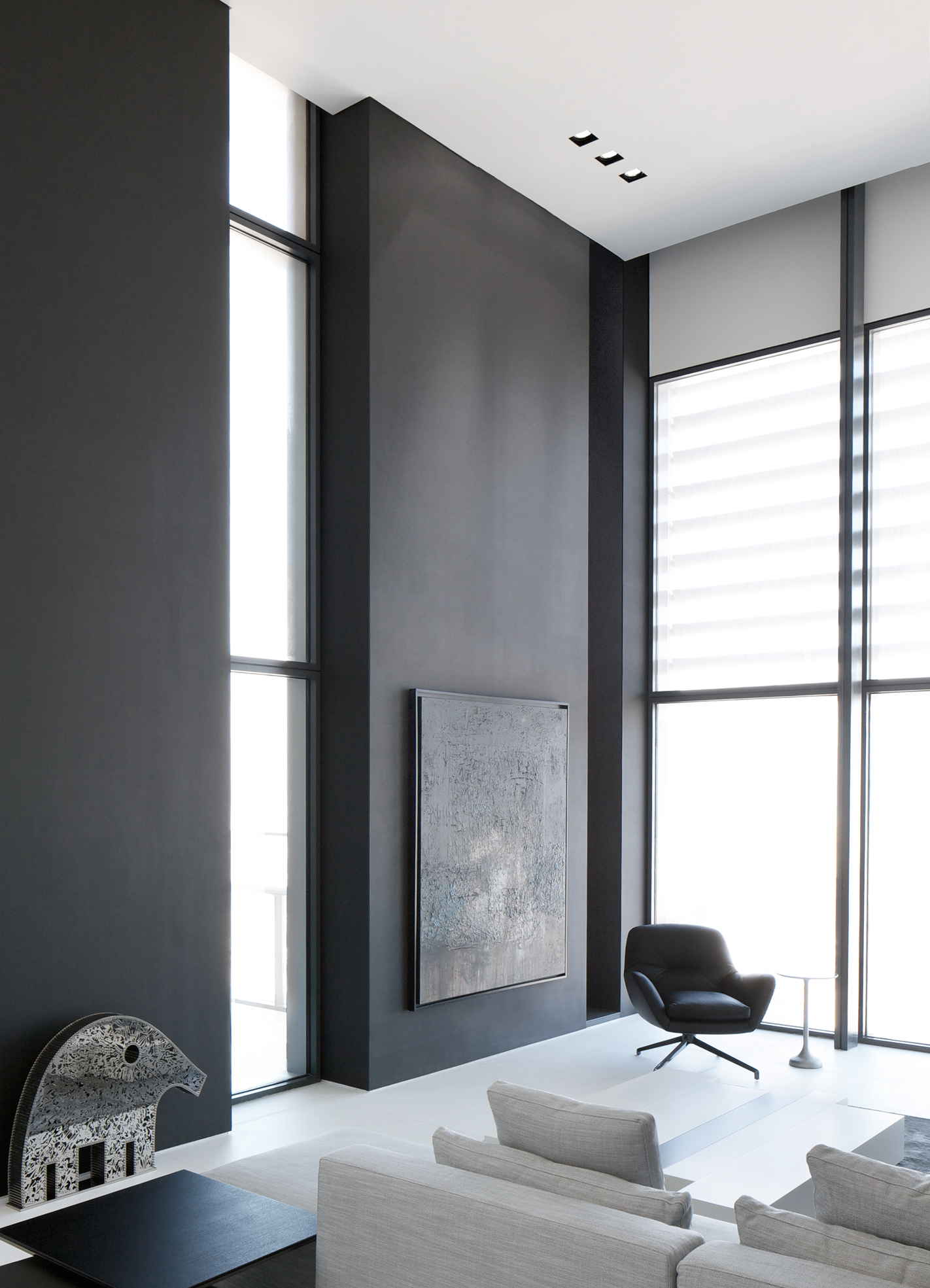

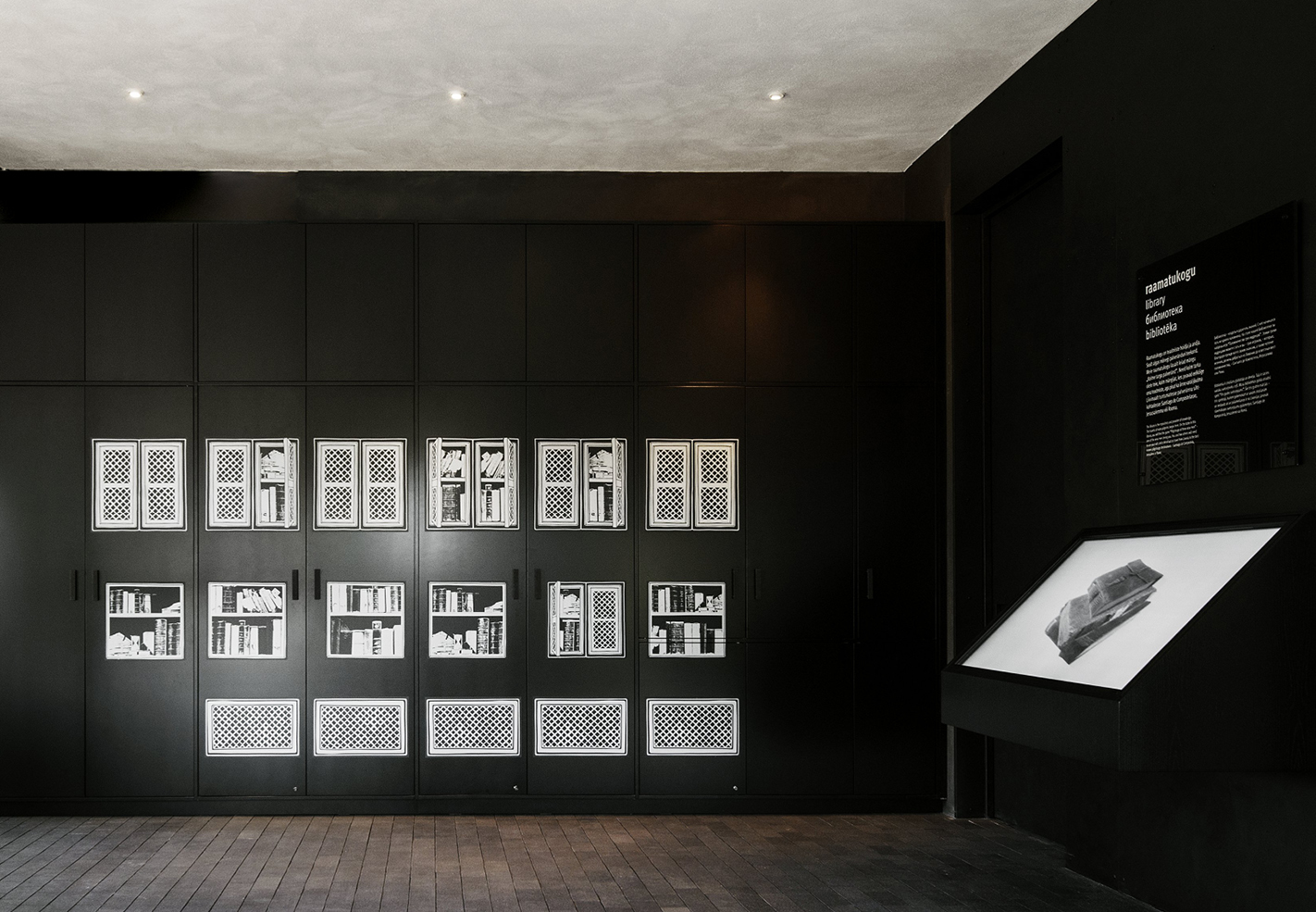

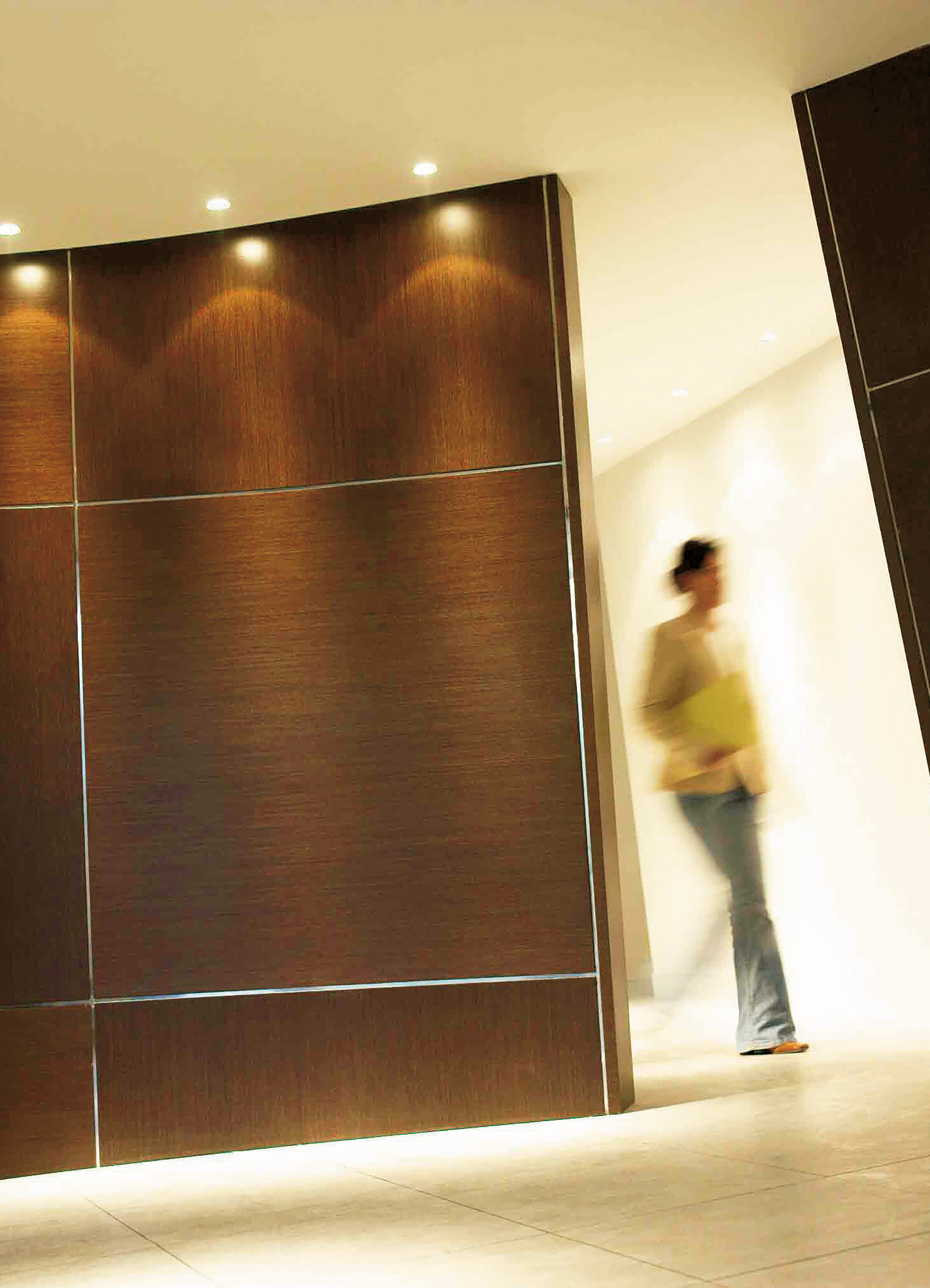

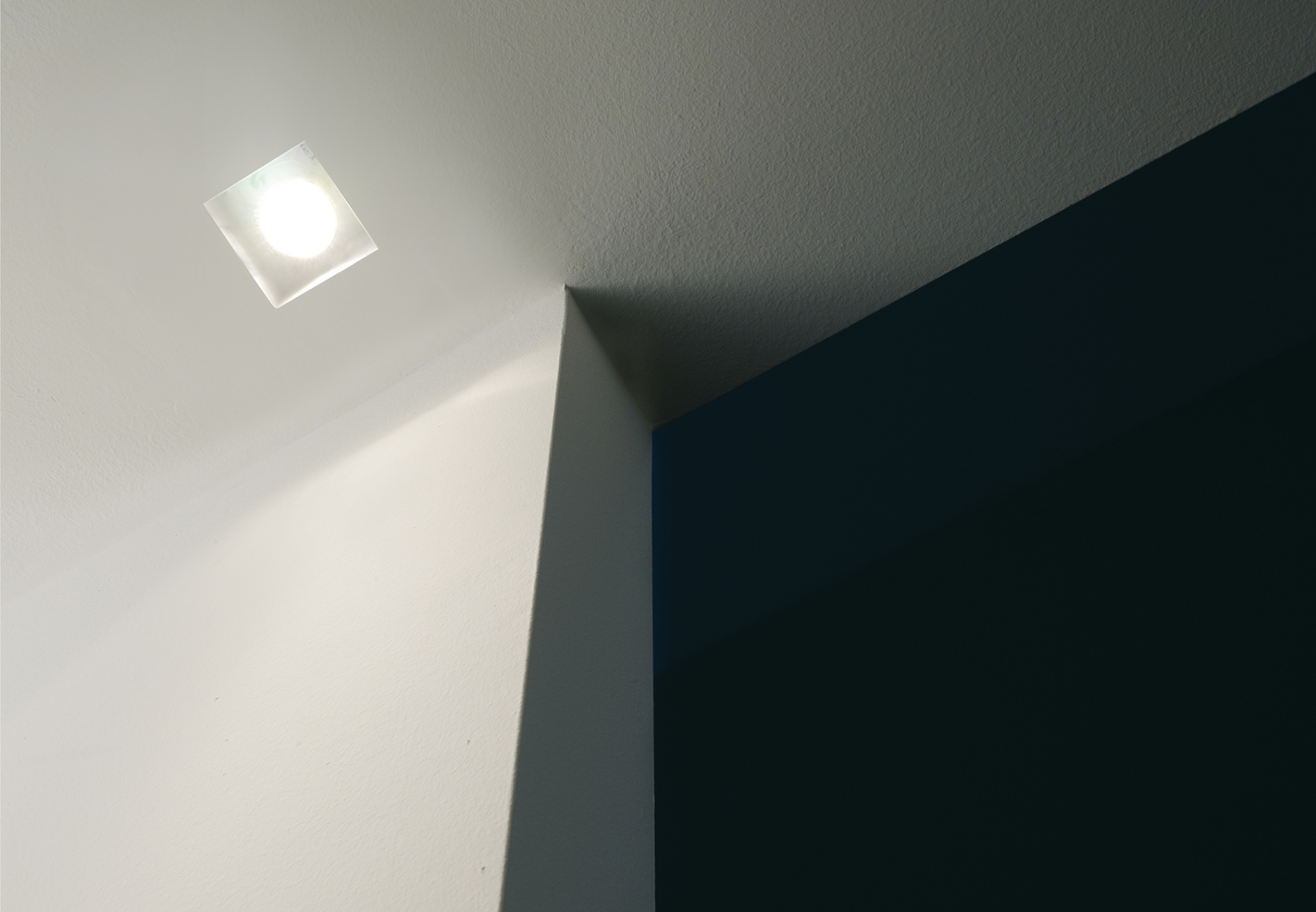

fully concealed light fitting for ceiling installation, IP55 rated fixed version for outdoor use or IP20 rated adjustable version, made of oxidized aluminium. round housing versions: m1 micro scomparsa totale fixed version diameter Ø40mm h.80mm, m1 micro scomparsa totale fixed version diameter Ø58mm h.91mm, m1 micro scomparsa totale adjustable version diameter Ø65mm h.84mm, m1 micro scomparsa totale adjustable version diameter Ø82mm h.93mm. squared frame versions: m1 micro scomparsa totale fixed 40x40mm h.80mm, m1 micro scomparsa totale fixed 58x58mm h.91mm, m1 micro scomparsa totale adjustable version 70x70mm, m1 micro scomparsa totale adjustable version 90x90mm. adjustable versions with rotation degrees by 350° on the vertical axis and by 25° on the horizontal axis. wired with 2700K and 3000K up to 16.8W 1791lm led source. optics: 13° 20° 36° 42° elliptical 43°x18°lens or diffuse light. constant current power supply not included, to be installed remotely. finishes: my bianco, nero55 and ottone ap-s.
